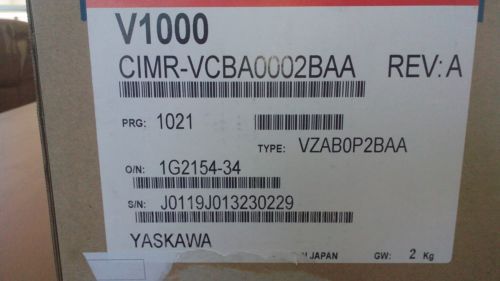

Yaskawa Omron Ac Inverter Drive V1000 Cimr-vcba0002baa

US $300.00

Ablanica, Blagoevgrad, Bulgaria
Feb 14th

Open on mobile:
QR code

The V1000 is a world-class compact current vector drive that defines a new world standard. Demands for efficient production and better maintainability are on the rise, spurred by global competition. Yaskawa drives have earned a reputation for high performance, high functionality, and high quality. The V1000 provides a world of power in the palm of your hand! Performance FeaturesRatings: 1/8 to 5 HP at 240 VAC 1-ph, 1/8 to 25 HP (ND) at 240 VAC 3-ph, 1/2 to 25 HP (ND) at 480 VAC 3-ph Overload Capacity: 150% for 60 sec. (Heavy Duty) 120% for 60 sec. (Normal Duty) Control Methods: V/f Control, Open Loop Current Vector Control, PM Open Loop Current Vector Control Simple closed loop speed control DC injection braking, ramp to stop Electronic reversing Adjustable accel/decel:0.01 to 6000 seconds Controlled speed range: 40:1(1) 100:1(2) Speed Regulation: ± 0.5 to 1% with slip compensation(1) ± 0.2%(2) Displacement power factor: 0.98 Output frequency: 0 to 400 Hz Frequency resolution: 0.01 Hz with digital reference 0.06 / 60 Hz with analog reference Frequency accuracy: 0.01% with digital command 0.5% with analog command Volts / hertz ratio: infinitely adjustable pattern DC Injection braking: adjustable amplitude, duration, current limited Torque boost: full range, auto Power loss ride-thru: 0.5 sec. Speed search Auto restart 3 Critical frequency rejection settings Slip Compensation Energy $avings Function Enhanced PID with loss of feedback function Protective FeaturesCurrent limit, stall prevention during accel, decel, and run Motor and drive overload Over voltage prevention function Instantaneous over current Short circuit Under voltage Heatsink overheat Ground fault protection Over/under torque Short circuit current rating: 30KA rms sym. OptionsDynamic Braking resistor (external) Multi-lingual, full-text remote LCD Profibus-DP, DeviceNet Communications Modbus TCP/IP, EtherNet/IP Communications DriveWizard Plus CASE software DIN Rail Mounting Kit USB Copy Unit (Y-stick) Design FeaturesDual microprocessor logic Digital keypad operator, 5 digits LED status display Remote Mount Keypad Capability RJ-45 Style Digital Operator Connector 7 multifunction digital inputs 3 multifunction digital outputs Hardwire baseblock (EN954-1 Cat. 3) Programmable form C output contact for customer use: 1A at 250 VAC or 30 VDC 24 VDC control logic compatible with sourcing or sinking outputs (PNP or NPN) Carrier frequency: 15 kHz max; swing PWM 16 multi-speed settings plus jog speed 2 Remote speed references 0-10 VDC (20 kohms) or isolated 4-20 mA (250 ohms) Signal follower: bias and gain 2 programmable open collector outputs Analog monitor output: 0-10 VDC proportional to output frequency or output current Approx. 400 parameters & monitors Digital pulse train input (33 kHz max.) Cooling fan controlled by drive run/stop RS-422/485 MODBUS 115 kbps UL recognized electronic overload MTBF 28 years Built-in Dynamic Braking Transistor NEMA 1 enclosure Side-by-Side mounting Application Presets Maintenance monitors Service ConditionsAmbient service temperature: -10° to 40°C (14° to 105°F) NEMA 1 -10° to 50°C (14° to 122°F) Open Chassis Ambient storage temperature: -20° to 60°C (-4° to 140°F) Humidity: to 95% non-condensing Altitude: to 3300 ft; higher by derating Service factor: 1.0 Input voltage: -15% to +10% 200 to 240 VAC, 380 to 480 VAC Input frequency: +/-5%; 50/60 Hz Input Phase sequence insensitive StandardsUL 508C (Power Conversion) CSA 22.2 No. 14-95 (Industrial Control Equipment) UL, cUL listed; CE marked RoHS compliant EN 50178 (LVD) EN 50081-2, EN 50082-2 (EMC) EN 954-1, Category 3 Safety Standard EN 61800-3 IEC 529, 146 FCC CFR 47 Part 15 Subpart B (w/ External Filter) TUV On Feb-13-15 at 07:25:57 PST, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Yaskawa Electric
MPN	CIMR-VCBA0002BAA
Model	V1000
Country/Region of Manufacture	Japan
