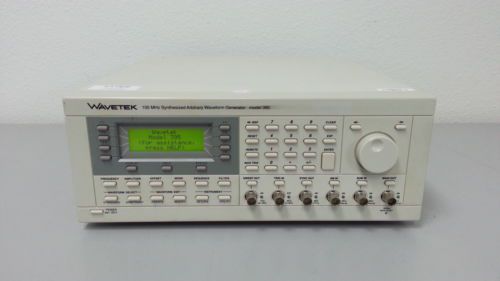

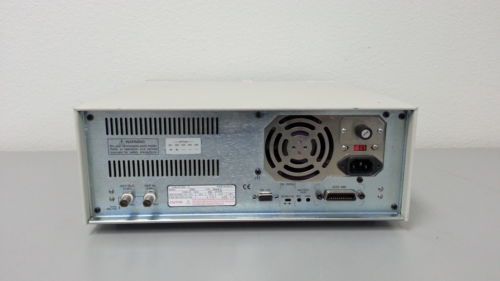

Wavetek 395 Synthesized Arbitrary Waveform Generator, 100 Mhz + Option 001 & 002

US $2,640.00

Oceanside, California, United States
Jun 9th

Open on mobile:
QR code

WAVETEK 395 WAVEFORM GENERATOR DESCRIPTION The Wavetek 395 Synthesized Arbitrary Waveform Genertor generates 11 standard waveforms: square, sine, positive and negative ramps, pulse, noise, triangle, positive and negative haversines, sin(x)/x, and DC. The Wavetek 395 provides square waves to 50 MHz, sine waves to 40 MHz, and triangles to 10 MHz, with synthesized accuracy and outputs up to 10 Vpp (into 50 ohms) Direct digital synthesis (DDS) enables 10-digit frequency resolution for sine waves to 20 MHz and for most other standard waveforms to 100 kHz. Waveforms can be output continuously or in triggered or gated modes that enable special applications such as brain response measurement and strain gauge data acquisition. Other capabilities give you the flexibility of the very best function generators including frequency sweeping, amplitude modulation, and summing with an external signal. A built-in Noise Generator allows extensive noise generation capabilities which are provided by 5 programmable noise functions: white noise, digital noise, comb function, signal-plus-noise, and signal-plus-comb. Other programmable features include sequence length for white and digital noise, bandwidths to 10 MHz for comb and white noise, bandwidths to 50 MHz for digital noise, and noise-to-signal ratios from 1% to 99%. The Wavetek 395 has a built-in Pulse Generator that offers a greater degree of control over pulse shape and amplitude than many other pulse generators. Simple pulses up to 10 MHz can be generated. You can create complex pulse trains of up to 10 pulses with individually programmable rise time, fall time, width, level, and negative or positive (in respect to the sync pulse) delay. This versatility makes the Wavetek 395 suitable in pulse applications as diverse as measuring the baseband frequency response in a microwave system, measuring the real-time impedance of biological cells, and testing propagation delay in electronic circuits. A built-in Trigger Generator is also installed for devices under test, whether you are using standard functions or user-defined waveforms. Burst count is programmable from 1 to 1,048,575 cycles. Gated mode provides continuous output of the wave-form for the duration of the gating signal. And four different trigger sources are available for maximum versatility: internal trigger generator with programmable trigger period, external signal with programmable trigger level and slope, remote trigger command, and manual trigger key. The Wavetek 395 can also be used as a Sweep Generator for performance characterization and frequency response testing, such as testing amplifier response or rapid cycling of a mechanical servo. A built-in algorithm allows waveforms to be swept in one continuous range from 1 mHz to 20 MHz. Triggered and manual sweep operations also can be performed. Seven sweep modes, with linear and logarithmic sweep spacing, a TTL level sweep marker, and a ramp output give you the flexibility you need. There's even a pen lift function for use with chart recorders. If you do communication or audio design and test, the Wavetek 395 offers internally generated amplitude modulation and frequency modulation, as well as external amplitude modulation in two modes. Normal mode provides 0 to 100% modulation; suppressed carrier mode provides +/-100% modulation. The 395 is convenient and easy to use. User screens are tailored to the particular jobs you want to perform, such as setting up a pulse generator or a noise function. The large array of keys on the front panel means that the 395 has a very simple menu hierarchy so that you don't get lost in a deep menu structure when you're using the instrument. From any screen, you can access help screens that guide you in using the instrument's extensive capabilities. And you can store at least 40 instrument set-ups so you don't have to spend valuable time duplicating past effort. Arbitrary waveforms can be created from the front panel using point edit, line draw, and waveform insert modes or remotely downloaded via the RS-232 interface or optional GPIB . The GPIB option includes Direct DSO Waveform Transfer, which allows you to upload waveforms directly into Model 395 that have been captured with any of 25 different digital storage oscilloscopes from a variety of vendors. Wavetek also has available WaveForm DSP, a software tool that makes waveform creation, modification, and downloading easy over either interface. The Wavetek 395 may be a good alternative to the 30 MHz Stanford Research DS345 and Agilent 33120A or even the newer and more expensive Tektronix AFG3021B, the AFG3101 and the older, but also more expensive Tektronix AFG2020. Notes / Included Options: 001 - IEEE-488 Interface 002 - 256K Extended Memory *All of our equipment has been tested. Additional Calibration may be available upon request! ~Items sold with shown accessories, a power cord and manual on CD (when available)~ PAYMENT AND SHIPPING INFO Warranty Info & Return Policy We strive to exceed our customer's expectations and maintain 100% Positive Feedback. And although we do not use eBay's automated Return Policy, all goods or equipment sold by AxiomTest include a 30-Day Warranty which starts the day the equipment is shipped. So contact us immediately if there is a discrepancy with your order or an equipment malfunction so we can issue a repair, replacement, or refund. All orders also come with a limited 5-day ROR (Right of Return). This ROR is limited to goods found to be non-acceptable due to cosmetic defect (not previously disclosed) or an item not meeting manufacturer's spec as advertised. ROR does not apply to wrong item(s) ordered by customer, equipment that has been misused or damaged by customer's misuse (intentional or unintentional), or any orders damaged in transit. Returns must be shipped with all original packaging and accessories. We will not accept any items with obvious signs of additional wear and tear or internal component alterations. All of our items will ship with “Warranty Void” tamper resistant stickers. If any stickers have been removed or tampered with your refund will be canceled. Please include your RMA # on the packing slip, way bill, or package. *CUSTOMER RESPONSIBLE FOR ANY AND ALL RETURN SHIPPING COSTS* Payment Options Domestic Buyers - PayPal, Wire Transfer, Money Order, Company, Bank, or Personal Check. International Buyers: PayPal or Wire transfer only. All funds must be in US Dollars. Unsecured funds must clear prior to shipment. Wire Transfers subject to a $25 service fee. Shipping Unless noted otherwise, all shipments are done through FedEx. If you would like to utilize your own shipping account please notify us PRIOR to checkout. Saturday and Residential delivery may be available at an additional third party charge depending on the shipping method you choose. We offer shipping outside of the United States. However, some international laws prohibit us from shipping certain items to certain countries. Additionally, not all countries are supported by our service provider. You may also elect to use your own carrier, but we'll be responsible for providing the correct documentation and scheduling the pickup. We are not set up to ship via USPS, and we will NOT falsify any import documents for international orders - no exceptions. Please note: In all sales where an item is prohibited to ship internationally to a successful buyer, that buyer will be notified of non-shipment and a full refund will be made. We reserve the right not to ship any item internationally that is controlled by the US Department of Commerce’s laws and regulations and deemed non-shippable to that region of the world or to listed individuals. eBay's International Shipping calculations do not include any additional duties, fees, or VAT that may be associated with importing this item into a foreign country - please bid accordingly Sales Tax California residents will be charged sales tax if no resale or tax exempt form is submitted prior to payment. ******CALL (760) 806-6600 TO RENT THIS ITEM****** TRIED, TESTED...ACCEPTED.

“Equipment has been tested and is fully functional with a 30-day Warranty”

Brand	Wavetek
MPN	395
Model	395
Country/Region of Manufacture	Unknown
