Voltcraft At-400 Transformer, 115/125/230/240 V

US $79.99

Burbank, California, United States
Jun 9th

Open on mobile:
QR code

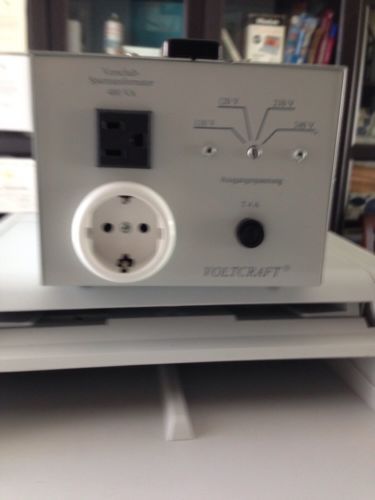

This transformer is brand new never used. Its a demo model and comes as you see in the picture. Europian design and construction. Pro series, this is not a cheap chiness model. TRANSFORMDOR MULTICORRIENTE VOLTCRAFT 400 VA 4 A/T ALEMAN. 110 240 50hz 110v, 130v,150v,220v,240v. ver fotos medidas: ancho: 14,5 cms; hondo:21 cms; altura: 11 cms. no se nada de electricidad, solo se que funciona. manual bajado de www.voltcraft.de INGLES VOLTCRAFT® ° Vorschalttransformator BEDIENUNGSANLEITUNG Seite 4 - 11 Series Transformer OPERATING INSTRUCTIONS Page 12 - 19 Transformateur additionnel NOTICE D?EMPLOI Page 20 - 27 Voorschakeltransformator GEBRUIKSAANWIJZING Pagina 28 - 35 Best.-Nr. / Item-No. / N° de commande / Bestnr.: 51 13 60 AT-400 NV 51 16 36 AT-1000 NV 51 13 97 AT-1500 NV Version 02/09 VOLTCRAFT IM INTERNET http://www.voltcraft.de Introduction Dear Customer, In purchasing this Voltcraft® product, you have made a very good decision for which we should like to thank you. You have acquired an above-average quality product from a brand family which has distinguished itself in the field of measuring, charging and network technology by particular competence and permanent innovation. With Voltcraft®, you will be equal to difficult tasks as an ambitious hobbyist just as much as a professional user. Voltcraft® offers you reliable technology at an extraordinarily favourable cost-performance ratio. We are certain: your start with Voltcraft will at the same time be the commencement of a long and profitable co-operation. We wish you much enjoyment with your new Voltcraft® product! Table of Contents Introduction ..............................................................................................................12 Table of contents ......................................................................................................12 Intended use ............................................................................................................13 Safety instructions and warning information ............................................................14 Scope of delivery ......................................................................................................15 Operating elements (see fold-out page)....................................................................16 Starting operation......................................................................................................16 Connection ............................................................................................................16 Connection of a consumer ....................................................................................17 Servicing and cleaning ..............................................................................................17 Replacing the fuse ................................................................................................18 Trouble shooting ......................................................................................................18 Disposal ....................................................................................................................19 Technical data ..........................................................................................................19 13 Intended Use The connection and operation of consumers with an operating voltage of either 115 V~, 125V~, 230V~ or 240 V~ to the appropriate sockets. Depending on the input voltage, 115 V~, 125V~, 230V~ or 240 VAC, the pre-settable output voltages are available on the earthing-pin socket (1). Only 115V~ is pending at the US socket independent of the input voltage. This voltage cannot be altered. The power consumption of a connected consumer may not exceed 400 VA for type AT-400, 1000VA for type AT-1000 or a of max. 1500 VA for type AT-1500. If this is exceeded or a short takes place, it can lead to overloading and thus to destruction of the series transformer. An auto-transformer supplies the desired voltages. The outputs are electrically connected with the input mains voltage. The devices are constructed in accordance with protection class 1. They are only licensed for connection to sockets with earthing and, depending on the adjustment of the voltage selection switch at the input, with an alternating voltage of 115V/125V/230V and 240V~ /50-60Hz. The in and outputs are secured by fuses. Use in damp rooms or outdoors or under adverse ambient conditions is not permitted. The following are unfavourable ambient conditions: - wetness or excessive humidity - dust or combustible gases, vapours or solvents - strong vibration Use other than that described above will damage the product and may involve other risks such as short circuit, fire and electric shock etc. Do not change or modify any part of the product. The safety instructions have to be observed at all times! 14 Safety instructions and danger warnings The guarantee will expire in case of damage caused by failure to comply with these instructions! We do not accept liability for damage to property or injury to persons caused by mishandling or non-compliance with the safety instructions. This device left the factory in perfect condition in terms of safety engineering. To maintain this status and ensure safe operation, you, as user, must comply with the safety instructions and warnings contained in these instructions for use. The following symbols must be observed: Note! Read the instructions for use. This equipment is CE-tested and complies with the EMC directive 89/336/EEC and the low-voltage directive 73/23/EEC. Auto transformer; in/output electrically connected. Earth connection; this screw may not be slackened. ? Electrical appliances and accessories should be kept out of the reach of children! ? In commercial institutions, the accident prevention regulations of the Employer?s Liability Insurance Association for Electrical Systems and Operating Materials are to be observed. ? In schools and training centres as well as at hobby and DIY workshops, the use of power packs must be supervised by adequately trained personnel in a responsible manner. ? For safety and licensing (CE) reasons, unauthorised conversion and/or modifications to the product are not permitted. ? Do not expose the device to high temperatures, dampness or strong vibration or excessive mechanical loads. 15 ? Never touch the device or the plug with wet or moist hands. There is risk of a fatal electric shock! ? Live components may be exposed if covers are opened or parts are removed unless this can be done by hand. ? Before opening it, disconnect the device from all voltage sources. ? Do not switch the measuring instrument on immediately after having taken it from a cold to a warm environment. Under adverse conditions, the resulting condensation could destroy the device. Allow the device to reach room temperature before switching it on. ? The device generates heat when operating; ensure that it is adequately ventilated. Do not cover the ventilation apertures of the device! ? Only use fuses of the type and rated current specified. The use of repaired fuses is not permitted. ? Make sure that the earth wire is not broken as, in the case of error, there could be danger to life. Further, ensure that the insulation is neither damaged nor destroyed. ? The outputs of the series transformer are not electrically isolated from the mains supply (auto transformer). Fatal risk can arise if the output voltage is contacted. ? Do not connect direct current (DC). The series transformer functions only with alternating current (AC). ? If you have reason to assume that safe operation is no longer possible, immediately take the device out of operation and secure it against inadvertent operation. It can be assumed that risk-free operation is no longer possible if - the device shows visible signs of damage - the device no longer functions and - has been stored for long periods under unfavourable conditions or - has been subjected to considerable stress in transit. ? Observe also the safety instructions in the individual sections of these operating instructions or in the operating instructions of the connected devices. Scope of delivery Series transformer Operating instructions 16 Operating elements (see fold-out page) 1 Output earthing socket (115V / 125V / 230V / 240V) 2 Fuse for output voltage, earthing socket (1) 3 Red signal display "polarity of mains plug incorrect? 4 Green signal display "polarity of mains plug OK? 5 115-V output US earthing socket 6 Voltage selection switch, output earthing socket (1) 7 Carrying grips 8 Voltage selection switch, input refrigerating device connection (9) 9 Refrigerating machine connection for mains cable 10 Fuse for input voltage 11 Fuse for output voltage, US earthing socket 115V (5) Starting up operation Before starting up operation, both the intended purpose of use and the safety instructions and technical data are to be observed! Mains connection: ? Make sure before connection that the change-over switch (8) is set correctly for the input voltage. To switch it over, use a suitable screwdriver, 230V~ in Germany and most other European countries or 115V~ / 125V~ /240V~ in some of the other countries (non-European). ? Connect the optional earthing power cable to the mains connector jack (9) on the device. Make sure it is plugged properly. ? Connect the mains cable to an earthed mains socket with protective earthing. The series transformer is now in operation. Observe the signal displays on the front. ? If the mains plug is plugged in correctly, the green display "L" (4) will light up. 17 ? If, on the other hand, the red display "N" (3) lights up, you have to turn the mains plug 180° in the socket (wall socket). This is an additional protective measure to prevent risks when defective devices are connected. If both signal displays light up, this is indication of a missing earth wire. Do not put the series transformer into operation and have the mains socket checked by a specialist. In case of error, a broken earthing wire can be fatal! Connecting a consumer Independent of the selection of input voltage, the following output voltages are always pending at the output sockets: ? earthing socket (1) optionally 115V~ / 125V~ / 230V~ / 240V~ (adjustable by means of the voltage selection switch (6); use a suitable screwdriver for the change-over) ? US earthing socket (5) 115V~ not adjustable Connect your consumer to the appropriate output socket (1 or 5) using a suitable mains cable. Make sure that the insulation of the mains cables is not damaged. Make sure that the consumers are switched off when being connected to the series transformer. Sparks may be generated when a switched-on consumer is connected to the jacks. This may damage the terminal screw connectors as well as the connected cables. If the series transformer is no longer required, disconnect it from the mains. During a longer period of operation under nominal load, the surface of the housing will heat up. Therefore, make sure that there is adequate ventilation of the device and, to avoid any damage, never operate it when partly or completely covered. Servicing and cleaning The devices are maintenance-free apart from the replacement of fuses and occasional cleaning. To clean the device, switch of the power and take a clean, lint-free, antistatic and dry cloth without any abrasive or chemical agents or detergents containing solvents. 18 Replacing the fuse If the series transformer can no longer be put into operation (no signal display (3 or 4) lights up), the mains fuse (10) is presumably defective. If there is no voltage pending at the earthing socket (1) although the signal display (3 or 4) lights up), the mains fuse (2) is presumably defective. If there is no voltage pending at the US earthing socket (5) although the signal display (3 or 4) lights up), the mains fuse (11) is presumably defective. Proceed as follows to replace the mains fuse for the models AT-400 or AT-1000: ? Remove all connection and mains cables from the device. ? Release the bayonet lock of the appropriate fuse bracket exerting slight pressure in the direction of the arrow (a quarter, anticlockwise revolution). ? Replace the defective fuse with a new fine-wire fuse (5 x 20 mm) of the same type and rated current. You can find the fuse data in the technical data. ? Insert the fuse bracket and lock it in the reverse order. ? The series transformer can be put into operation again. Make sure that only fuses of the type stated and rated current specified are used as a replacement. The use of repaired fuses or bridging the fuse bracket is not permitted. The AT-1500 model has automatic fuses instead of melting fuses. Proceed as follows to switch the device on again: ? Remove all connection and mains cables from the device. ? Press in the pin on the automatic fuse until it snaps in properly. ? The series transformer can be put into operation again. Troubleshooting By purchasing the series transformer, you have acquired a product which is reliable and operationally safe. However, problems and malfunctions may occur nevertheless. 19 For this reason we wish to describe here how you can eliminate potential disturbances yourself: Observe the safety instructions at all times! Fault Possible cause The remote control Are the control lamps on the device alight (3 or 4)? does not function Check the mains voltage (you may also wish to check the mains fuse in the device or the electric cut-out device in the distribution for the building). Check the technical safety of the device regularly, e.g. check for damage to the housing etc. Any other repair work may only be carried out by qualified experts familiar with the dangers involved as well as with the relevant regulations. Unauthorised modification or repairs on or inside the device will lead to the lapse of the warranty. Disposal If the product is no longer functional and can no longer be repaired, dispose of it in accordance with the relevant statutory regulations. Technical data AT-400 AT-1000 AT-1500 Operating voltage 115V~ / 125V~ /240V~ (+/-10%) 50/60Hz Connection output max. 400VA max. 1000VA max. 1500VA Fuses: 3x T4A/250V 3x T10A/250V 3x T15A/250V 5 x 20 (mm) 5 x 20 (mm) Automatic fuses Output voltage 115V~ / 125V~ 230V/~ 240V~ (+/-10%) 50/60Hz Working temperature 0°C (+40°C to 80%) at a max. humidity of <80%, non-condensing Dimensions 225 x 135 x 240 305 x 135 x 240 305 x 135 x 240 (W x H x T in mm) Earth approx. 3.5 kg approx. 5.3 kg approx. 7.4 kg 20
