Velleman 5 Mhz Personal Oscilloscope Scope.

US $1500

  • Montreal-Nord, Quebec, Canada
  • Jan 29th

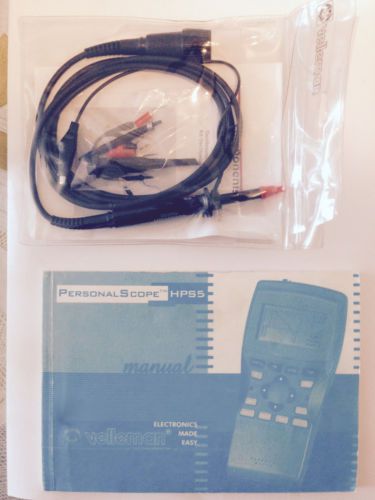

Velleman 5 MHz Personal Scope: Features BNC input connector 9VDC power supply easy access to batteries or rechargeable batteries with secured battery cover max. 20h of autonomy with alkaline batteries (5pcs type AA) ideal for: audio trouble shooting / car diagnostics / service and development Specifications maximum sample rate: 5MHz input amplifier bandwidth: 1MHz (-3dB at 1V/div setting) 1Mohm//20pF (standard probe) vertical resolution: 8 bit (6 bit on LCD) LCD graphics: 64 x 128 pixels dBm measurements: from -73dB to +40dB (up to 60dB with X10 probe) ± 0.5dB true rms AC measurement: 0.1mV to 80V (400Vrms with X10 probe) 2.5% accuracy time base: 20s to 2µs / div in 22 steps input sensitivity range: 5mV to 20V/div in 12 steps (up to 200V/div with X10 probe) power supply: 9Vdc / min. 300mA adapter batteries (option): alkaline type AA or NiCd/NiMH rechargeable (5 pcs required) battery life: up to 20 hours with alkaline batteries includes soft carrying case safety: meets IEC1010-1 600V Cat II, pollution degree 1 dimensions: 105 x 220 x 35mm (4.1" x 8.7" x 1.4") weight: 395g (14oz.) (batteries excl.) insulated measurement probe x1 / x10: (Included) INSULATED SCOPE PROBE 60MHz (included) Features complete probe set safety: conform with IEC-1010 cat II attenuation: 1:1 or 1:10 Specifications position x1: attenuation: 1:1 bandwidth: DC to 15MHz rise time: 23.3ns input resistance: 1Mohm (input resistance scope) input capacitance: 46pF + cap. scope working voltage: 600Vdc incl. peak AC derating with frequency position REF: - position x10: attenuation: 1:10 bandwidth: DC to 60MHz rise time: 5.8ns input resistance: 10Mohm (if scope input = 1Mohm) input capacitance: ±15pF working voltage: 600Vdc incl. peak AC derating with frequency compensation range: 10 to 50pF cable length: 1.2m remarks: with insulated BNC connector
Condition:
New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...
Brand Velleman
Channels 1
Model HPS5
Sample Rate Less than 200MSa/s
MPN HPS5
Make Velleman
Type Digital
Country of Manufacture Taiwan, Province of China
Bandwidth Less than 60MHz
