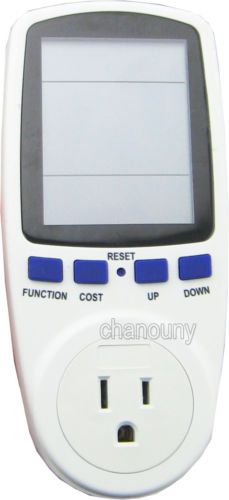

USP lug Power Meter Energy Watt Voltage Amp Meter with Electricity Usage Monitor, US $21.20 – Picture 0

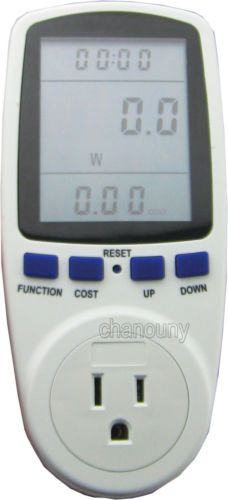

USP lug Power Meter Energy Watt Voltage Amp Meter with Electricity Usage Monitor, US $21.20 – Picture 1

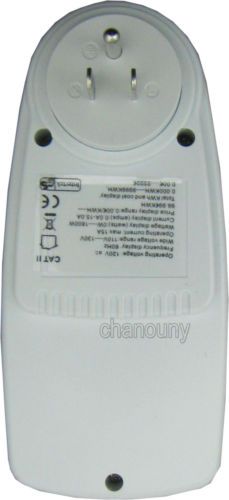

USP lug Power Meter Energy Watt Voltage Amp Meter with Electricity Usage Monitor, US $21.20 – Picture 2

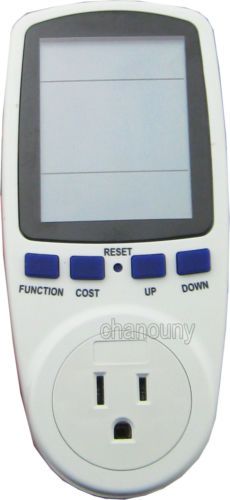

USP lug Power Meter Energy Watt Voltage Amp Meter with Electricity Usage Monitor, US $21.20 – Picture 3

USP lug Power Meter Energy Watt Voltage Amp Meter with Electricity Usage Monitor, US $21.20 – Picture 4

Usp Lug Power Meter Energy Watt Voltage Amp Meter With Electricity Usage Monitor

US $21.20

Guangzhou ,Guangdong, China
Jan 29th

Open on mobile:
QR code

Plug Power Meter Energy Watt Voltage Amps Meter with Electricity Usage Monitor Description us US Plug Power Meter Energy Watt Voltage Amps Meter with Electricity Usage Monitor Reduce Your Energy Costs #1400332 Technical specification Operating voltage: AC 120V, 60HZ Operating current: max 15A Wide voltage range: AC 110V---- 130V Timing display range: 0 second -9999 days. Wattage display (watts): 0W- 9999W Voltage Display range: 0V----9999V Current display (amps): 0.000A-15.000A Frequency display: 0Hz-9999Hz Minimum Wattage display range: 0.0W-9999W Maximum Wattage display range: 0.0W-9999W Price display range: 0.00 COST~/KWH-99.99~KWH Total KWh and cost display: 0.000KWH-9999KWH, 0.00COST~-9999COST Dimensions: Length = 155mm; Width = 70mm; Height = 45mm (not inc. pins) 8 display modes as follow: Time/Watt/Cost Display Time/Cumulative electrical quantity Display Time/Voltage/Frequency Display Time/Current/Power Factor Display Time/Minimum Power Display Time/Maximal Power Display Time/Price Display Overload Display instruction manual Power Meter is a monitoring and testing instrument which determines the power consumption of connected appliance and the cost of the electricity consumed. Installing the batteriesInstall 3.6V rechargeable Batteries(NI-MH) . The purpose of the batteries is to store the total electricity and memory setting. ResettingIf an abnormal display-appears or the buttons produce no response, the instrument must be reset. To do this,press the RESET button. Display Mode Entire LCD can be displayed for about I minute and then it automatically gets into Model. To transfer from one mode to the other, press the FUNCTION button. Mode 1: Time/Watt/Cost Display Display duration(how long) this device connect to power source.LCD on first line shows 0:00 with first two figures mean minutes(2 figures will occur while occur at 10min) and the rest shows seconds. After 60mins, it displays 0:00 again with first two numbers meas hour(2 figures will occur at 10 hours)and the rest shows minutes. The rest can be done in the same manner which means after 24 hours, it will re-caculate. LCD on second line displays current power which ranges in 0.0W~9999W. LCD on third line displays the current electricity costs which ranges in 0.0cost~9999cost. It will keep on 0.00cost before setting rate without other figures. Mode 2: Time/Cumulative electrical quantity Display Display duration(how long) this device connect to power -source.LCD on first line shows 0:00 with first two figures mean minutes(2 figures will occur while occur at 10 min) and the rest shows seconds. After 60mins, it displays 0:00 again with first two numbers meas hour(2figures will occur at 10 hours)and the rest shows minutes. The rest can be done in the same manner which means after 24 hours. it will re-caculate. LCD on second line displays current cumulative electrical quantity which ranges in 0.000KWH?9999KWH without other figures. LCD on third line displays"DAY"--“1 "will be showed on numerical part(the other three figures will be showed at carry) which means it has cumulated electrical quantity for 24hours(one day). The rest can be done in the same manner untial the maximal cumulative time of 9999 days. Mode 3: Time/Voltage/Frequency Display LCD on first line displays the same as Mode l dones. LCD on second line displays current voltage supply (v) which ranges in 0.0V~9999V .LCD on third line displays current frequency (HZ) which ranges in 0.0H2~9999HZ without other figures. Mode 4: Time/Current/Power Factor Display LCD on first line displays the same as Mode l dones.LCD on second line displays load current which ranges in 0.0000A~9999A. LCD on third line displays current power factor which ranges in 0.00PF~1.00PF without other figures. Mode 5:Time/Minimum Power Display LCD on first line displays the same as Mode I dones. LCD on second line displays the minimum power which ranges in 0.0W~9999W. LCD on third line displays character of "Lo" without other figures. Mode 6: Time/Maximal Power Display LCD on first second line displays the maximal power which ranges in of "Hi" without other figures.line displays the same as Mode l dones. LCD on 0.0W~9999W. LCD on third line displays character Mode 7: Time/Price Display LCD on first line displays the same as Model dones. LCD on third line displays the cost which ranges in 0.00COST/KWH -- 99.99COST/KWH without other figures. Overload Display: When the power socket connects the load over 3680W, LCD on second line display the"OVERLOAD" with booming noise to warn the users. (selectable choice) Supplemental informations: 1: Except "OVERLOAD" interface, LCD on first line ciisplay time in repitition within 24hours. 2: LCD on first line, second line or third line described in this intruction take section according to two black lines on LCD screen. Here it added for clarified purpose. 3. Mode 7 will directly occur while press down button "cost". 4."UP"&"Down" are in no function under un-setting mode. Setting Mode 1. Electricity price setting After keeping COST button pressed lasting more than 3 seconds(LCD on third line display system defaults price, eg 0.00COST/KWH ),the rendered content begins moving up and down which means that the device has entered the setting mode. Then press FUNCTION button to change selection and press UP/DOWN to set what you want. (On pressing once, the figure after demical point will increase or decrease accordingly. On pressing and hold-on, figures after demical point will increase or decrease slowly in 2 seconds while figures change quickly when hold-on time exceeds 2 seconds. When hold-on time reaches 10 seconds or more, the figures after demical point will stop while the figures before demical point begin to increasing or decreasing.) After that, press FUNCTION for swithing, then press "UP"and "DOWN" button again to set value which ranges in 00.00COST/KWH?99.99COST/KWH. After setting all above, press COST to return to Mode7 0 or it will automatically return to Mode7 without any pressing after setting with data storage. Package Includes: 1X Power Meter(US Plug) 1X English User Manual Payment We only accept payments via paypal. All payments must be prepaid, no Cash and COD payment. We will ship the item to the address on your paypal payment notice, Please confirm your shipping address in the PayPal Account. If you have any problem about payment , please contact us. Delivery details Item will be shipped within 3 working days after full payment is received. We ship worldwide with flat rate shipping by post Air mail, the shipment usually takes 15-45 business days . We can also provide express post by EMS(5-8 days) or UPS(4-5 days). The cost is higher than standard postage, extra shipping fees is needed. if you need express post please contact us ! About us We will leave positive feedback to buyer as soon as buyer pays for the item .Your satisfaction is our first priority. Please leave us positive feedback upon satisfaction of the item. Please email us before leaving negative and neutral feedback. We will try our best to solve the issue. We will leave positive feedback to buyer as soon as buyer pays for the item . Contact us we do try respond as quickly as possible. Due to time zone difference, please allow 12~24 hours to get your mail replied. If you have any questions, Please contact with us via ebay message or our customer service e-mail .thanks for your buying ,wishes you have a happy shopping from our shop ! Engineered for professional eBay sellers! On Dec-14-14 at 19:29:21 PST, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	product name	Power Meter
Operating voltage	AC 120V, 60HZ
module name	Watt Voltage Amps Meter
Wide voltage range	AC 110V-130V
