TUBE AXIAL DUCT FAN - Belt Drive - 42" - 5 Hp - 208-230/460V - 26,900 CFM, US $2,889.00 – Picture 0

TUBE AXIAL DUCT FAN - Belt Drive - 42" - 5 Hp - 208-230/460V - 26,900 CFM, US $2,889.00 – Picture 1

Tube Axial Duct Fan - Belt Drive - 42" - 5 Hp - 208-230/460v - 26,900 Cfm

US $2,889.00

United States
Jan 29th

Open on mobile:
QR code

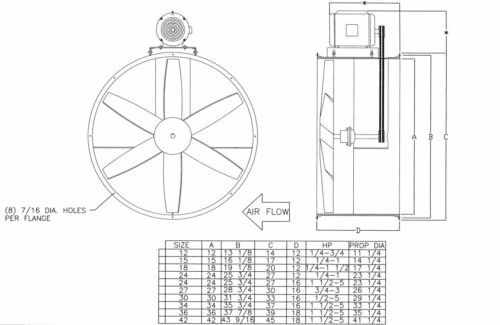

*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) STATES. ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE* ___________________________________________________________________________________________________________ Model: VIRBPR425 Condition: New Description: Tube Axial Duct Fan - Industrial Features: 42" Diameter - Belt Drive - 5 Hp - 208-230/460V - 3 Phase - 26,900 CFM - 1725 RPM - Industrial Grade Construction - Economically and Efficiently Removes Fumes, Dust and Smoke - Optionally Available in Explosion Proof/Hazardous Location Configuration - Heavy Gauge All-Steel and All-Welded Construction - Made in the USA Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing through PayPal Bill Me Later Program Shipping: We Ship Worldwide via Air, Ocean and Common Carrier. Contact us for a Freight Quote Toll Free 888-718-0706 ______________________________________________________________________________________________________ SEE OUR FULL LINE OF DUCT FANS BY FOLLOWING THIS LINK: OUR DUCT FAN LINE This Series of Direct Drive Tube Axial Duct Fans are Available in the Following Configurations: Diameters: 12" through 42" CFM Ranges: 1,444 to 26,900 Motor Hp: 1/4 Hp to 5 Hp Motor RPMs: 1,725 & 3,450 Voltages: 115/230V & 208-230/460V Amp Draws: 2.1 to 20 Phase: 1 & 3 Drive Systems: Belt & Direct Drive Available Options: Companion Flanges, Horizontal Support Legs, Horizontal or Vertical Support Brackets, OSHA Compliant Inlet and Outlet Guards, Inspection/Maintenance Doors, Epoxy or Urethane Coatings and explosion proof/hazardous location configurations available Questions? Give our Customer Service Department a Call Toll Free at 888-718-0706 Description & Specifications: Industrial Heavy Duty 42" Belt Drive Tube Axial Duct Fan Our line of USA made tube axial duct fans are designed for continuous operation and recommended for use in manufacturing and assembly facilities, mills, foundries, factories and similar applications. This line of tube axial duct fans is also available in explosion proof/hazardous location configurations for use in paint shops and chemical processing facilities and similar Features: Non-sparking cast aluminum propellers, all-welded housings, heavy gauge steel construction, industrial grade continuous duty TEFC and TEAO motors available in 115/230V 1 Phase or 208-230/460V 3 Phase, available in an explosion proof/hazardous location configuration This series of tube axial duct fans is available in 12", 15", 18", 24", 27", 30", 34", 36" and 42" configurations Application: Designed for use in dry environments with a maximum temperature of 180?F. Economically and efficiently removes fumes, dust and smoke. Recommended for use in air make-up systems. Hazardous locations when equipped with optional explosion proof motor, harsh dry environments when equipped with optional mill and chemical duty motors and special coatings Fan Type: Duct Fan - Tube Axial - Industrial Blade Diameter: 42" Drive Type: Belt Motor: 5 Hp - TEFC Voltage: 208-230/460V Phase: 3 Hertz: 60 Speeds: 1 CFM: 26,900 RPM: 1725 Power Cord: N/A - this is a hardwire fan - we recommend you use a licensed and insured electrician to run power to this fan Optional Item: Model VIRCF - Companion Flange (please inquire Toll Free at 888-718-0706) Optional Item: Model VIRHSL - Horizontal Support Legs (please inquire Toll Free at 888-718-0706) Optional Item: Model VIRHSB - Horizontal Support Bracket (please inquire Toll Free at 888-718-0706) Optional Item: Model VIRVSB - Vertical Support Bracket (please inquire Toll Free at 888-718-0706) Optional Item: Model VIRAIG - Air Inlet Guard (please inquire Toll Free at 888-718-0706) Optional Item: Model VIRAOG - Air Outlet Guard (please inquire Toll Free at 888-718-0706) Optional Item: Model VIRIMD - Inspection & Maintenance Door (please inquire Toll Free at 888-718-0706) Optional Item: Model VIREC - Epoxy Coating (please inquire Toll Free at 888-718-0706) Optional Item: Model VIRUC - Urethane Coating (please inquire Toll Free at 888-718-0706) Optional Item: Model VIRHLEP - Hazardous Location/Explosion Proof (please inquire Toll Free at 888-718-0706) Overall Dimensions: 45" H x 45" W x 18" D (overall height includes mounting flange but does not include motor height - motor heights vary by size) Note: We assemble this fan to order, please allow 2 weeks for delivery 2 Year Warranty (Includes Parts & Labor) Made in the U.S.A. *WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) STATES. ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE* Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Streamline Industrial
Country/Region of Manufacture	United States
Model	VIRBPR425
Industrial Tube Axial Duct Fan	26,900 CFM - 1725 RPM
MPN	VIRBPR425
