Tpi Tele-path Instruments Frame Relay Test Set Model 650...new

US $250.00

Montgomery, Illinois, United States
Jan 29th

Open on mobile:
QR code

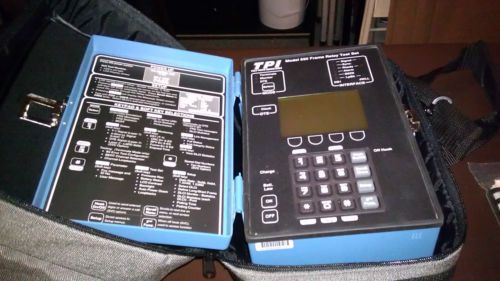

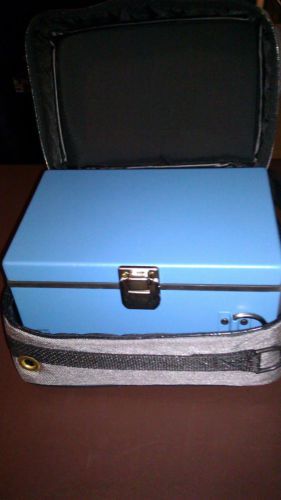

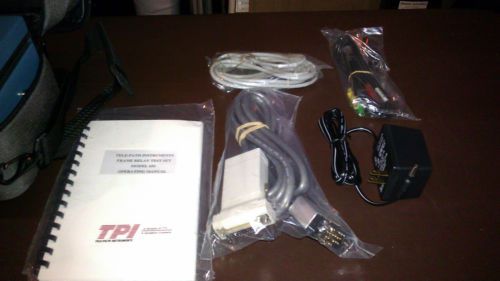

This item is brand new, just not in any original box, however all accessories are in unopened plastic, in original case.....NEVER USED Includes: Everything shown in picture, manual, battery charger/adapter, all cords, in plastic packaging. Retails new in this condition for $6,680.00 The TPI model 650 is a long-term, economical solution to high-speed, low-latency communications found in wide area networks (WANs), frame relay is an integral part of today’s changing technological environment. Increased deployment of frame relay services demands a highly reliable, portable turn-up tool—TTC’s TPI 650. An economical alternative to expensive protocol analyzers, the TPI 650 is ideal for wide-scale use in the field. Used to turn-up and troubleshoot frame relay digital circuits at the user network interface (UNI), the full-featured TPI 650 boasts a two-in-one design that supports frame relay services and facilities testing for multiple-application use. Other standard features include multiple test access interfaces for DS1 (FT1), 4WLL (DDS), V.35, and RS-530. Feature Specifications: Modes (with LED indication): Terminate (CSU/DSU and TE emulation) DTE (emulation) Monitor (DS1, 4WLL): Half-duplex - standard Full-duplex - optional (option may not be installed) Interfaces: DS1 (T1/FT1), Mini-Bantam/Mod.: B8ZS/AMI ESF/SF 4WLL (modular) DTE 56 K/64 K to 1.544 M: RS-530 (DB-25 pin) V.35 with cable Status: DS1 LEDs: Signal, sync, ready, alarm, B8ZS, loopback 4WLL LEDs: Signal, loopback, ready DTE LED: Clock Layer 1 Layer 2 Loopbacks: Responds to network loopbacks User-configured loopbacks Link Management: Annex A Annex D Mfg. (FRS Forum) LMI Status display DLCI statistics Performance statistics Controls: Key pad Graphics-capable LCD with backlight 16-line display with interactive soft keys User-friendly menu selections Context-sensitive help key Measurements Specifications: Services Testing: Frame Relay: SMDS-DX1 (option) FOX message with ID number testing User-defined message testing Selectable DLCI, frame size, % throughput PING testing Active DLCI statistics Data Access Connector, RS-232 (9-pin): DLCI statistics output PVC service SVC service - option (may not be installed) Facilities Testing: Bit Error Rate Testing: T1/FT1: 511, 2047, QRSS, 2 15-1, 2 20-1, 223-1, 1 in 8, 2 in 8, 3 in 24, zeros, ones 4WLL: 511, 2047, stress patterns (1-5), 215-1, 220-1, 223-1, 1 in 8, 2 in 8, zeros, ones DTE: 511, 2047, QRSS, 2 15-1, 2 20-1, 223-1, 1 in 8, 2 in 8, 3 in 24, zeros, ones DS1, EOC block error testing 4WLL, signal loss measurement General Specifications: Physical: Hand-held: 5.5" W x 4.25" D x 8.5" L - does not include packaging Weight: 6 lb - does not include packaging Rugged metal housing with protective lid Quick reference label Soft pack carrying case Test cables (may not be included) Power: Rechargeable 12v lead-acid battery with AC charger/adapter 8-hour continuous use on fully-charged battery Auto shut-off mode Firmware: Field-replaceable EPROM card Three-year firmware contract option (from the factory- not included) Highlights: •Selectable test modes provide needed flexibility for turn-up of services and troubleshooting •Weather-sealed cover protects connector interfaces •Rechargeable battery provides eight hours of continuous use •Auto-configuration makes set-up quick and easy, while on-screen prompts guide users through tests •Lid label provides a quick reference of test functions Applications: •Facilities Testing Features •Terminate mode •Monitor mode •DTE mode Features: •Verify SVC routing •Verify DLCI assignments at the UNI using selectable Link •Management Interface protocols, analyze frame statistics for all active DLCI's, send FOX and user-defined test messages over active DLCI's, and store DLEI statistics •Check end-to-end routing by initiating PING tests •Stress test new loops by simulating user traffic •Log user-configurable events **Item is free shipping Flat: Cost same to all buyers, however if purchasing from out of country, HI, Puerto Rico, anywhere not within the U.S. will have to determine actual shipping fees and recalculate amount.
