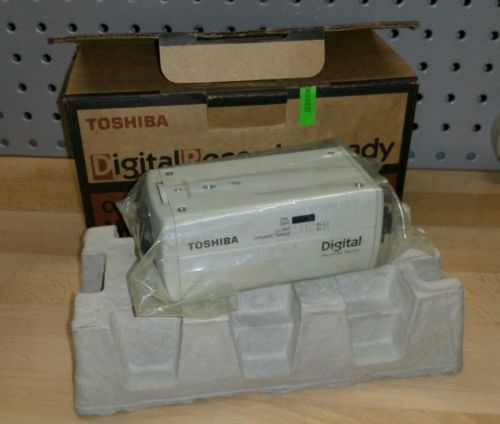

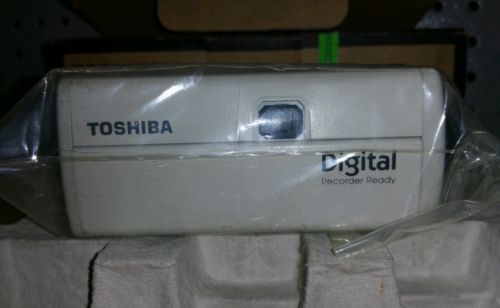

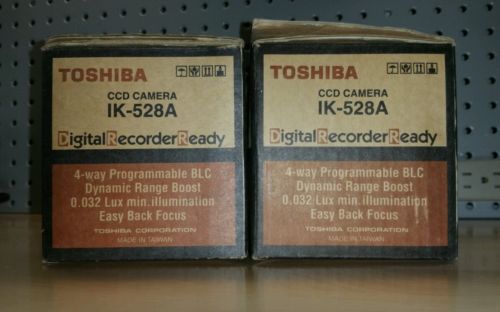

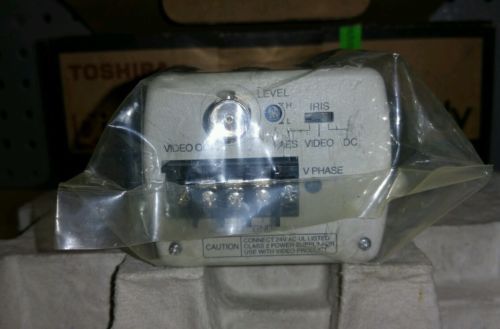

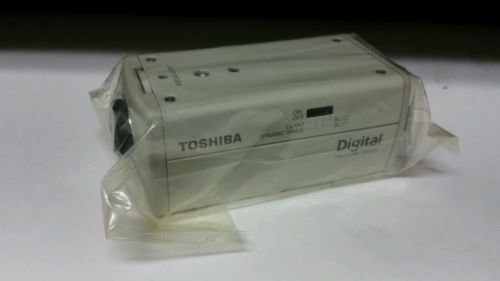

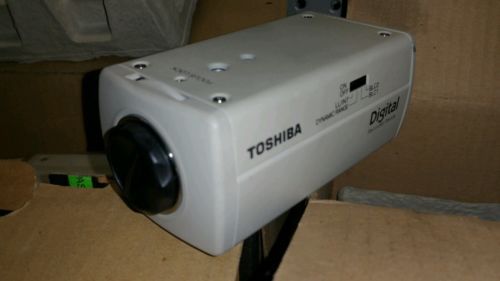

Toshiba Ccd Cameras # Ik-528a (lot Of 2)

US $210

  • Los Angeles, California, United States
  • Feb 13th
Please read all carefully before bidding, auction is for (2) Toshiba model# IK-528A (CCT) Closed Circuit B&W Security Surveillance Camera Toshiba IK-528A (CCT) Closed Circuit Black and White Security Surveillance Camera Because the CCTV industry is rapidly moving towards a digital format, Toshiba built the IK-528A to be optimized for digital recording. At 50dB, the camera's signal-to-noise ratio is considerably higher than standard cameras and assures image quality will not be jeopardized during digital video compression such as JPEG or MPEG.  Designed for value and performance, the Toshiba IK-528A integrate the key features that set the standard for industry. Toshiba IK-528A Features: Four position programmable back-light compensation Dynamic Range Boost (User programmed) 0.032 Lox minimum illumination at F1.2 400 Lines Horizontal Resolution EZ back-Focus adjustment High speed auto-electronic shutter 1/60 ­ 1/100,000 of a second Smaller & more compact size 24VAC Line-lock Toshiba IK-528A Specifications: Pick-up element 1/3" Interline Transfer Effective Picture Elements 512 (H) x 492 (V) Resolution 400 TVL Horizontal Minimum subject Illumination 0.032 Lux @ F1.2 Lens Mount CS S/N Ratio 50dB TV System EIA Standard, 2:1 Interlace Backlight Compensation Programmable 4 Area Selectable Shutter Control AES (1/60 to 1/100,000) Line-Lock Vertical Adjustment 0 - 300? User adjustable SYNC System Line-Lock / Internal Dynamic Range Boost Yes AGC Selectable On (18dB) or Off (Internal Jumper) Gamma Compensation 0.45 fixed Video Output VS x 1 Vpp/BNC (75 ohm unbalanced) Ambient Temperature 14? F to 122? F Mounting Method 1/4-inch x 20 Threaded Hole Tripod Mount Hole Provided (Top and Bottom) Power Supply AC 24V ±10%, 60Hz ±1Hz/50Hz (INT Mode), 12VDC Power Consumption 4 watts Toshiba IK-528A Dimension: 2.46”(W) x 1.97”(H) x 4.45”(D) Weight 21.2 oz. Safety Standard UL2044, CSA Emission Standard FCC class A, IC/A Pin Assignment A1 A1 - AMP 1 +9V Damp- 2 NC Damp+ 3 Video Drive + 4 GND Drive- Toshiba IK-528A A&E Specifications: The camera shall be a solid state black and white video camera. The pick-up device shall be a 1/3" interline transfer charge coupled device (CCD) with equal to or greater than 250,000 picture elements. Video output shall be provided through a BNC-type connector. Composite video output shall be 1.0V p-p with 75 Ohm impedance and shall be EIA RS-170 standard black & white video signal format. The camera shall accept CS-type lenses and be capable of supporting auto-iris type lenses (video-type & DC type). Back-focus adjustment shall be provided via a back-focus which will not require tools for adjustment. A Phillip-type set srew will lock the back-focus ring in place after adjustment. The camera shall have an internal isolation transformer. The dimensions of the camera shall be 2.46"(W) X 1.97"(H) X 4.45"(D). Camera mounting shall be performed via a 1/4" X 20 threaded hole in the camera casing. The camera shall be capable of being mounted either from the top or bottom. Camera weight shall not exceed 21.2oz. Ambient operating temperature shall +14 degrees to +122 degrees Fahrenheit. Ambient operating humidity shall be 30% to 90%. Camera resolution shall be a minimum of 400 TV lines horizontal and 350 TV lines vertical. Synchronization shall be achieved via line-lock 24 volts AC 60Hz. There shall be provisions for vertical phase adjustment. Signal-to-noise ratio shall be 50dB. AGC shall be automatic and provide a minimum 18dB gain. The sensitivity of the camera shall render a minimum subject illumination of 0.032 Lux (F1.2). The camera shall have auto electronic shutter capable of 1/100,000 second. The camera shall also have provision for 4-zone user programmable back light compensation. The camera shall have provision to boost dynamic range by approx. 30%, selectable by user. Camera shall be powered by a 24 VAC, 50/60Hz power source. Power consumption shall not exceed 5.5 W. The camera shall be UL and CUL approved.   ( LOT OF 2 CAMERAS ) Items were purchased but never installed, unable to test due to no power supply or lens.
NOS NEVER INSTALLED
Brand Toshiba
Color Mode B&W/Monochrome
Type Cameras
Model IK-528A
Camera Type Box/Body
MPN IK-528A
Connectivity Closed System/CCTV-Wired
Country/Region of Manufacture Taiwan
