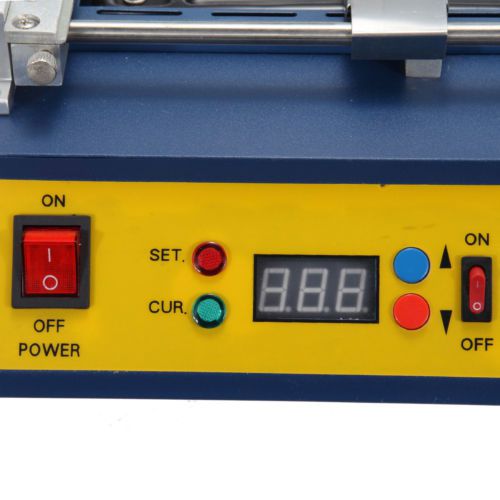

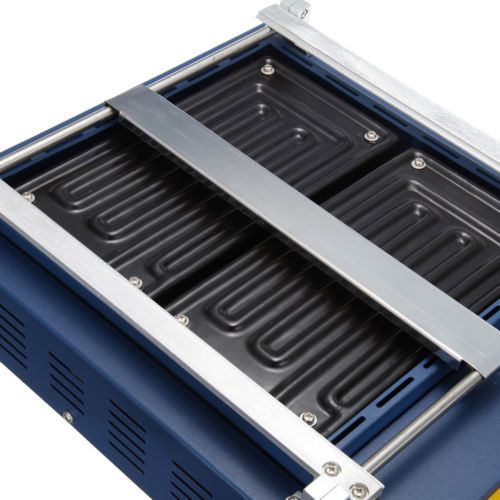

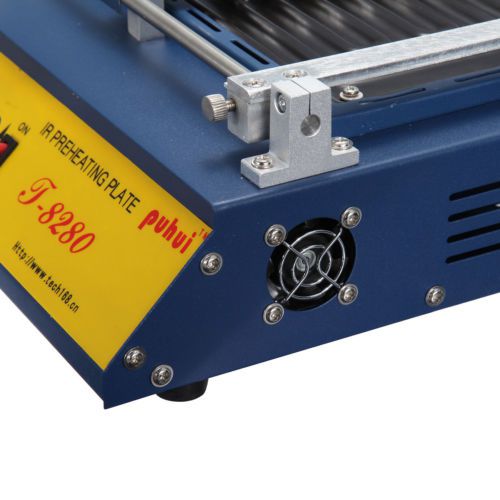

Engraving Machine Embosser Machine Rotary Laser Lever Heat Press Machine Welding Equipments High Quality Brand New IR Preheating Oven T8280 Preheating Station CE Adopts advanced PID intelligent temperature Control temperature precisely Infrared heat, easy to cut through, heat proportion Heat PCB board, especially the BGA and SMD parts Easy to operate INTRODUCTION T-8280 selects the infrared component to give off heat which independent exploration, adopts advanced PID intelligent temperature, controls temperature precisely. It can achieve to heat PCB board and component which contains lead or not,especially for the BGA and SMD parts. This item has 600W heating system, widely to 280x270mm. It is easy to operate, you can operate it through easy training. Technical Parameter Work bench size 410x316mm Rated voltage and frequency 110V 60/50Hz Complete machine power 1600W Preheating plate power 1500W Preheating plate size 280x270mm Preheating plate temperature adjustable 0-450°C Main Components: Preheating plate main body 1 Temperature sensor 1 PCB board holder 1 Power line 1 Products Features: 1. This machine is with infrared component to give off heat which independent exploration, adopts advanced PID intelligent temperature, controls temperature precisely. 2. T-8280 can heat PCB board and component which contains lead or not,especially BGA and SMD parts. 3. Use infrared heat, easy to cut through, heat proportion, don’t have sirocco flow. Don’t shift the small components on the PCB board,ensure the welding quality. 4. This machine is with 1500W heating system, heating area 280x270mm. Can use together with the handhold infrared welder T-835. 5. Easy operate, you can operate it after simple training. Operation instructions: 1. Inspect the machine and then open it (1) Check the connection of the power line. (2) Turn on the power switch. Allow the T-8280 Power-On-Self-Test (POST) to complete. After this, Temperature set-points will display room temperature. (3)The black switch on the front panel are used to control the infrared preheating plate; press the blue button “?”(up)the red button“?”(down), can adjust the infrared preheating plate temperature between 0 °C and 450°C. Press the button“ON”,the infrared preheating plate starts to work, press“OFF”,it stops working. 2. Operation of preheating PCB board (1) The placement and adjustment of the PCB board: (1)According to the size of the PCB board, adjust the PCB board holder, then put the PCB board and fix the adjust knob. (2)According to the size of PCB board and welding technological requirement, press the blue button “?”(up)and the red button “?” (down), regulate the output temperature of preheating plate between 0°C and 450°C (2) Preheating open and close: (1) Press the “ON” button,open the preheating plate about 3-5 minutes, make the temperature be the setting value then carry on the next step . (2) Finishing, press “OFF”, the preheating plate stops working. Attention:Don’t close the power switch until the machine full cooling. (3)The preheating temperature set: If the PCB board contains lead, adjust the infrared preheating plate temperature to 100-120°C;if not,adjust to 120-140°C.You can also set the preheating temperature according to the user's experience and technology. 3. Machine installation and adjustment The preheating plate heating type includes: the total pressure flow-through heating way and the PID percentage adjustment way. You can adjust it according to the preheating allowance. Generally speaking, if the preheating temperature is lower than 250 °C , selects the PID percentage adjustment method; and if the preheating temperature is higher than 250°C, use the total pressure flow-through heating way. Adjustment method 1. Press “?”power-on, display: C=? 2. Press “?”choose 0 or 1,every press the status change one time, C=0 is PID percentage adjustment, C=1 is switching control. 3. Press “?”OK Cautions! 1. After finishing, don’t turn off the power immediately; make sure the infrared preheating plate complete cooling. 2. Keep the ventilation free flowing, the infrared preheating plate clean, use dehydrated alcohol clean it regularly! 3. The high temperature operation, pay attention, avoid scalding. 4. If you don’t use the machine for a long time, you’d better pull off the power source plug! Statement: If there is any difference between users operating manual and actual product, according to the actual product! Note : if you want to buy the cheap item , pls don't buy our item ! as you can see any other seller's in the market ,the price is very low , but we don't want to beat them in price, because what we sell is the quality , not the price, what we care about is the item's quality and customer service ! WHY CHOOSE US ? 1.Professional ( we have the factory for manufacture) 2. High quality guarantee ( we test all of the item before it have been sent out ) 3. The best of the customer service ( if you have any question about the item, we can solve for you ) Shipping Payment Return Contact About Us Ship to paypal address only, PO BOX address is not acceptable. 1.We have warehouses in the USA,and will send item from the California by Fedex or UPS. Estimated Delivery 2-4 business days to major locations,4-7 business days to remote areas. 2.Ship within 1 business day once payment completed. Orders placed on weekend will be shipped within 2 days We accept Paypal only ,and expect payment within 4 days of purchase. 1.This item comes with three years warranty. 2.If your item is received in a condition other than described, please contact us for an immediate solution. 3.All of our items come with a 30-Day money back guarantee,buyers pay for return cost. 1.If you have any question or concern, please do not hesitate to contact our customer support team. 2.E-mails are answered Monday through Saturday. Please allow up to 48 hours for a response to your message 3.Please do contact us first before leaving low ratings or negative/neutral feedback. 1.Best Prices: By avoiding too many other companies marketing and packaging costs, we deliver the same quality products at a fraction of the cost. 2.Reliable Shipping: You get your product when you need it. We ship via Fedex or UPS which has an average transit time of 2 to 5 business days but can be delayed due to weather conditions or security issues. 3.Quality Products: All of our items come with a 30-Day money back guarantee, and have been chosen from various reputable manufacturers. Our products are also tested for quality assurance purposes(CE etc). We trust that you will have a happy experience when shopping with us! We appreciate your business!
