T&l Step Motors Permanent Magnetic Rotor Mill Router Lathe Cnc Ball Bearing New

US $14.99

Springfield, Tennessee, United States
Jan 30th

Open on mobile:
QR code

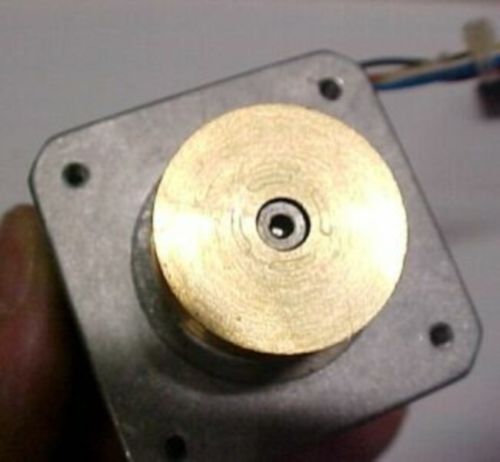

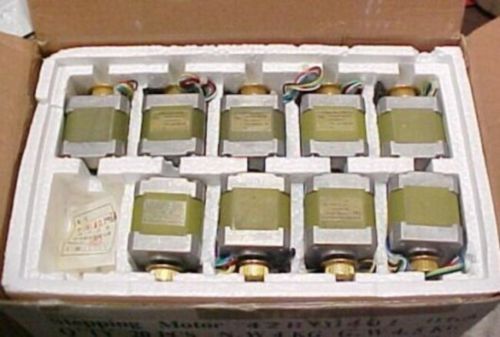

2016UD6G.74 New T&L (SinoTech), Ball Bearing, 42MM Square (1.65 inch sq.), 1.8 Degree Step (200 Steps per Revolution), Stepper / Stepping Motors, Part Number 42BYG401 - 06A, or 548001017, or 548-001-017. Each bid quantity is for One (1) Motor. You may bid / buy any number, up to the total quantity available above. These were purchased at an industrial auction recently, and they are brand new in the original factory boxes. We are not experts in stepping motors and their applications, but we found some information (below) about this motor series on the SinoTech website. Please verify. Best we can determine, they are designed to be powered with 6V DC current. The "42BYG" is the motor series designator, the "401" specifies the voltage and other attributes, and we believe the 06A designates the pulley. These motors appear to be well made, and they are no doubt expensive when purchased retail. The ends are made of thick aluminum, with screw holes at each corner for mounting. The light green center portion of the motor is steel, and the pulley is solid brass. The wire colors are black, yellow, green, red, white, and blue. Stepper motors are fairly heavy, so default shipping will be in Priority flat-rate boxes; tightly packed in crumpled paper for protection. If you purchase in multiples of twenty (20), we will be glad to ship them to you in the factory boxes and styrofoam trays. Note: The labels are not stuck very tightly to the motor bodies, so they will probably come loose during shipment. We will enclose them in plastic bags so you can re-apply after receiving if desired. According to the calipers Overall length (including pulley): 2.410" Housing length (excluding pulley & shaft): 1.920" Width: 1.665" Shaft diameter: .195" Clearance between pulley & housing: .120" Pulley outer diameter: .910" Pulley inner diameter: .795" Pulley teeth: 28 Pulley outside width: .366" Pulley inside width: .282" Threads: M3 x .65 (somewhat hard to find, but will interchange with #4-40 Unified / inch threads for most applications). Mounting hole spacing: 1.230" on centers x .220" deep According to the label on the motor: T&L International Mfg./Didt. Inc. T&L Stepping Motor P/N 548001017 Type 42BYG401-06A According to the manufacturer: Stepper Motor Series 42BYG Step Angle: 1.8 deg Ambient Temperature: -25 to +40 deg C Temperature Rise: 85K Insulation Resistance: 500VDC 100Mohm Min Insulation Class: B 42BYG401 Volts: 6 Current (amps): 0.8A Resis. (ohms): 7.5 Induct (mH): 2.2 Holding torque (g. cm): 2300 Detent torque (g. cm): 280 Rotor inertia (g. cm): 36 Wt (kg): .29 Wire diag. B

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	T&L SinoTech
Robotics Controls Type	Motors
Model	42BYG401 - 06A
Manufacturer	T&L SinoTech
MPN	548-001-017
Item_Condition	New
Type	Stepper Motor
