Stellex Mini Yig Oscillator 8-10 Ghz Tunable

US $380

  • San Mateo, California, United States
  • Jun 9th

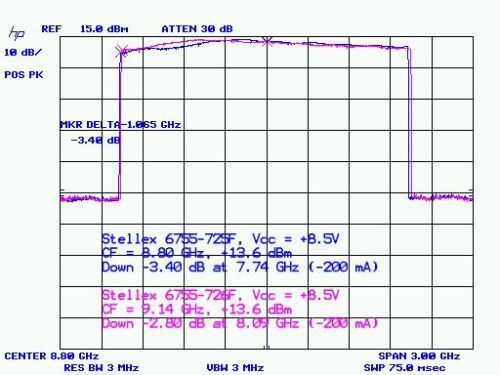

SquareTrade © AP6.0 STELLEX MINI YIG OSCILLATOR 8-10 GHz Tunable (Model 6755-726) or -725 Note: This oscillator is similar to the ENDWAVE MY01210 and is a direct replacement. Stellex’s YIG [Yttrium Iron Garnet] technology provides a frequency source with high spectral purity for high-frequency communications applications. MiniYIG Tuned Oscillators • 9 GHz in Center Frequency • Low Phase Noise • –105 dBc/Hz @ 10K (typ.) • –128 dBc/Hz @ 100K (typ.) • Up to ±1 GHz Tuning Range • Output Power +14.5 dBm (typ.) • Outstanding Phase Hit Performance in 64 and 128 QAM Radio Systems • Offered in SMA Connector Package Here is the pinout: 1 Red +Vcc 2 Black GND 3 Violet Tuning Coil+ 4 Orange Tuning Coil- 5 Yellow Modulation Coil 6 Gray Modulation Coil Vcc : +5V is sufficient for oscillation, except at higher frequencies. +7.5V works fine. Without tuning current output frequency is 9 GHz. Here is some more information from a customer: Dear weliquidate, Hello, This Vaughn of DEDAKI from here on Ebay. We bought a pair of these a few weeks ago and have tried to get the hard copy datasheet but so far just verbal specs from the rep. But I have gotten them to work GREAT from the 8.7 - 9.7GHz spec given to me or close to that, I emailed you the actual numbers and I do not have the numbers in front of me now. Anyway we powered the yig from a highly REGULATED +12VDC LInera regulator with decoupling caps on both sides of the regulator. We also built a 0-10V to -200Ma - 0Ma - -200Ma circuit by using a burr brown voltage to current chip xtr110. The datasheet shows a circuit for this 0-10V to +200Ma to -200Ma circuit as one of their applications and it works just great to control the tuning coil on the yig. But we never did go beyond +150Ma and -150Ma or 2.5V to 7.5V on the chips input for drive. It might tune further and it may not but I stopped at the rated spec I got from the rep. Hope this might help you or others out. Vaughn And another note from a customer: Great little YIGs!!!!! Thank you for the good packing. This are really great components. I've got the datasheet from endwave and they are working as expected with minor diferences: -The tuning coil impedance is about 15 Ohms (datesheet 10) -The FM Coil impedance is about 0.5 Ohms (datesheet 1) -The DC Current is about 80mA at 8.5 Volts (datesheet 100) So with 8.5 Volts Osc. Power the Power Output is about 14dBm like stated in the datasheet. The +- 1GHz tuning range is covert with a tuning current of +- 200mA. This is matching the main coil sensitivity of 5MHz/mA in the datasheet. I have to check the power dissipation of the unit, because of the higher main coil impedance the power dissipation of the coil is 50% higher than like the datasheet version. I've measured the 2nd harmonics on some frequencies, they are much better than expected, about 30dB below the main signal. Hope this infos are interesting for you. USA Shipping is $4.00 These YIGS were removed from new assemblies. Int'l Shipping is $11.00 More Customer feedback: Hi, Mark -- Thanks for the quick shipping on these Stellex YIGs. They work great! You may wish to note in your auction text that they need at least 6.5V, not 5V, to work properly. Below 6.5V, they exhibit spurs at around ± 37 MHz from the carrier (see attached). On Jun-08-09 at 16:15:51 PDT, seller added the following information:   Still want to know more ? I have a copy of the datasheet here ----->  http://www.hackettelec.com/ebaypics/MiniYIG.pdf
