Static Mixer Clear 1 1/4" Pvc Biodiesel, Ozone, Hydroponics

US $22000

  • Woodinville, Washington, United States
  • May 28th
Open on mobile:
QR code

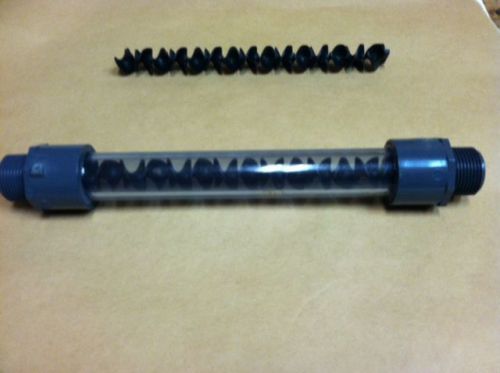

Now available with injection port. Now available with BSP (British Standard Pipe Thread, no additional cost) . Comes standard with NPT (National Pipe Thread USA) if you would like BSP let me know when ordering. Available in sizes 1/2’' through 2” Please check out my other listings. This is a clear schedule 40 1 1/4”  static mixer. This mixer has 1  polyplas stage and measures 10 1/2" long. This mixer has been developed for low viscosity mixing applications. Each stage consists of  modular semi-elliptical baffles. These baffles are aligned along a central shaft with two intersecting bottom baffles and one opposing top baffle. As fluids pass through this mixer, they are divided into substreams. These sub-streams are progressively recombined and re-divided between opposing baffles simultaneously, radial mixing occurs as the sub-streams are forced from the center of the pipe to the outer walls and back again. The final result is complete mixing in a very short tube length with minimum pressure drop. This mixer can be built to your specifications.  Standard fittings are 1 1/4" NPT male pipe thread, other fittings (BSP)available upon request.  If you require something different please email or call me I have stock and access of many different mixers. Key benefits are low cost, long service life, ease of installation, no fouling. Various uses include biodiesel production, process control sampling, PH control, chlorination and ozonation,waste water treatment and more. Maximum working  pressure 180 PSI at 73 F  If purchasing multiple items, please request total for combined shipping. Please check out my other mixer listings. Stacey Greenwood 206 715 4787 StataMix dot com
