St Stm32 Stm32f103 Development Board Mcu Arm Cortex-m3 Processor 72mhz 128kbyte

US $49.00

Bangkok, Thailand
Jan 29th

Open on mobile:
QR code

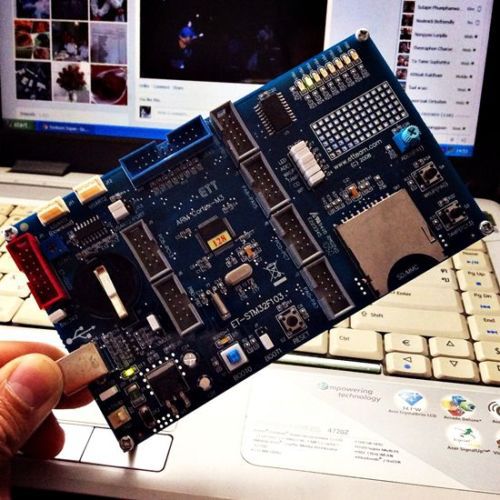

Product Description The STM32F103 Development Board is Base Cortex-M3 core family,uses Microcontroller 32Bit 64 Pin low power type to be permanent MCU on board and uses MCU No.STM32F103RBT6 from STMicroelectronics. Board is designed easy to apply for various project works. All the necessary support components are included, together with a Power LED, voltage regulator,2 RS232 UART, (5V/3.3V) LCD Connector with contrast adjustment, plus a reset and load switch for program execution and download. STM32F103RBT6: 32 Bit ARM Cortex-M3 Processor, Run 72MHz Clock / 90MIPS (1.25DMIPS/MHz) 128Kbyte Flash Memory and 20Kbyte RAM LQFP-64 Package 51 Bit I/O (16 External Interrupt) with 5V-Tolerant Logic Level 7 Channel DMA For Peripherals ADC, SPI, I2C, USART 16 Channel 12 Bit ADC Converter 4 x 16 Bit Timer (16-Input Capture / 16-Output Compare / 18-PWM) 2-SPI, 2-I2C, 3-USART, 1-USB, 1-CAN, 2-WDG, RTC Support Debug with Serial wire Debugger (SWD) & JTAG Interface Features: Includes STMicroelectronics STM32F103RBT6 Microcontroller with 128Kb Flash Memory and 20Kb RAM Operating Speed up to 72MHz (90MIPS) Up to 46 I/O points with easy to connect standard headers 2 RS232 Connections with MAX3232 Real Time Clock with Battery Back-Up SD Card Connector for Data Storage and Transfer 5v/3.3v LCD Connection with Contrast Adjustment Load and Reset Button 2 Push Button Switch 8 Test LED Full Speed USB 2.0 Port 1 Variable Trimpots for Adjustable Analogue Inputs On-Board 3.3V Regulator. Can select Supply from USB Port or External +5DC 20 Pin JTAG Connector for Program Download and Debug Direct In-Circuit Programming for Easy Program Updates with Serial Port Code Examples: download used firmware libraries for STM32 8 LED Testing LCD 16X2 NOKIA5110 GPIO LCD NOKIA5110 SPI LCD NOKIA6110 LCD Push Button Switch Real Time Clock UART Demo ADC Interface Code Examples from Keil: download CAN peripheral External interrupt General purpose I/Os Watchdog PWM Real time clock SVC for software interrupt Tamper detection USART in interrupt mode USART in polling mode USB HID (Human Interface Device) USB Mass Storage Documents: STM32F103RBT6 Datasheet Manual and Schematic Firmware libraries for STM32 Kit Includes: 1 x STM32F103 Development Board 1 x RS-232 Serial Cable 1 x Software and Example Code CDROM Payment: Paypal allows you to pay by credit card,Debit cards,bank transfers and Paypal account Balances,For more information Please check at www.paypal.com Shipping: We ship your orders within 1-2 business days after the payment cleared. All package delivered by Registered Air Mail. In most times item will reach most of the countries within 8 to 15 working days. To some remote areas may take more than 20 working days. Delivery time depends on destination and other factors, it may takes up to 20 working days. If you don't receive the item after 30 days, please contact us, we'll investigate and solve the delivery problem. To some remote areas may take more than 45 days! We offer combined shipping About us: We are smart marketplace platform aiming to provide United States buyers an easier, faster and more direct way to reach for quality products at attracting wholesale price with great efficiency from selected standard manufacturer sellers. By assisting manufacturer sellers to fulfill professional customer assistance service, efficient order delivery process and after-sale service, we commit to offering every buyer superior and joyful shopping experience. Contact Us: Please read our policy and product description before your purchase. We will explain it in detail and satisfy your needs. Feel free to contact us! Email: sale@micro4you.com For more information or bulk order, please visit www.micro4you.com Feedback: Please give us Five Star Rating! Thank you very much!

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

Country/Region of Manufacture

Thailand
