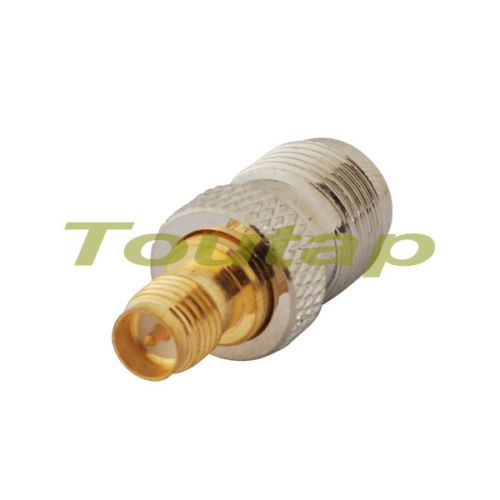

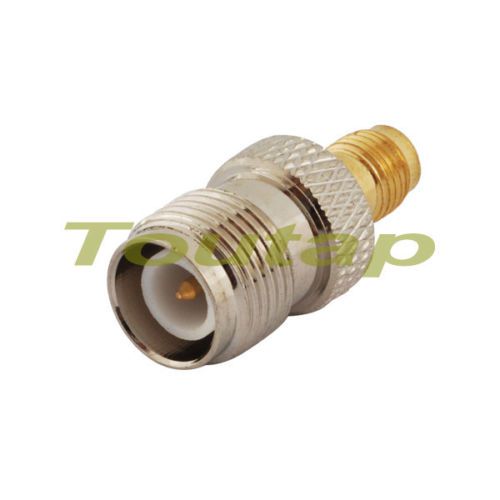

Sma-tnc Adapter Rp-sma Jack To Rp-tnc Jack Female Male Pin Straight Rf Adapter

US $3.79

  • Shenzhen, Guangdong, China
  • Jan 29th
SMA-TNC adapter RP-SMA Jack to RP-TNC Jack straight RF Coax Adapter Connector   Click here - add $3 for registered airmail   SPECIFICATION: RF adapters cost effective solution, which is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required. RF adapter product line includes in-series RF adapters design and between series adapter designs as well as T and Cross RF adapters. Interface types are included in RF adapter ,such as SMA, TNC, N and BNC,which are availablen in male, female, plug, jack, receptacle gender, in 50 Ohm &75 Ohm impedance and in standard polarity or reverse polarity. RF adapters are available in quick disconnect (QD), push-on or standard interface , straight, 90 degrees versions,as well as bulkhead ,or 4 hole panel configurations. RF adapters in standard and high performance with brass body .The stainless steel body will be customized!    SMA connectors, short for SubMiniature Version A, are semi-precision, subminiature devices that provide repeatable electrical performance from DC to 12.4 GHz with flexible cable. SMA connectors feature screw-type coupling. Semi-Rigid cabling extends the frequency range of the device to 18GHz. SMA connectors offer broadband performance with low reflections and constant 50 ohm impedance. These properties, along with minimum attenuation and low VSWR have made the SMA connector extremely popular in the microwave community. LTI SMA connectors are designed to conform to MIL-C-39012 specifications.         Category Connectors, Interconnects Family Coaxial, RF Adapters Series Between Series SMA-TNC Convert From (Adapter End) RP-SMA Jack, male Pin Convert To (Adapter End) RP-SMA Jack, male Pin Impedance 50 Ohm Style Straight Material Brass Features - Plating Nickel-plated / Gold-plated Mounting Type Free Hanging     Technical characteristics   Temp.range...................-65~ +165 (PE Cable -~ +85) Vibration...................... MIL-STD-202,Method 213 Impedanec......................50? Frequency Range..............DC~12.4GHz(0~18GHz) Working Voltage..............335V max Withstand Voltage.......... 1000V rms Contact resistance Center Contact................=0.15 dB/6GHz VSWR  Straight...............
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand Superbat
Convert To (Adapter End) RP-TNC Jack, male Pin
Model AD-S02SJ-T02SJ-14BS00
Style Straight
Country/Region of Manufacture China
MPN 1413
Convert From (Adapter End) RP-SMA Jack, male Pin
