Sclcr 10x125l Internal Turning Toolholder Boring Bar And 10pcs Ccmt 0602 Insert

US $49.99

  • ???, ???, China
  • Jan 30th

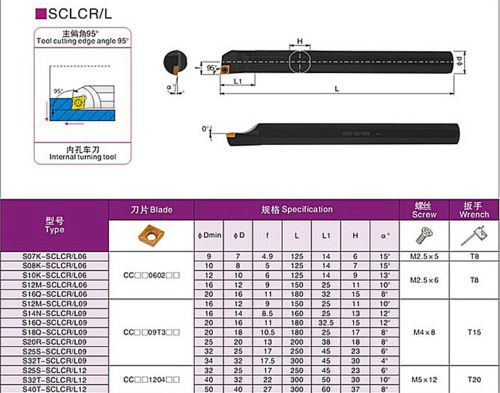

Specification: Product Name Internal Boring ToolHolder Model S10K-SCLCR06 Lead Angle 95 Degree Direction Right Hand Suitable Inserts CCMT 060204 Material Alloy Steel Color Black Shank Diameter 10mm Overall Length 125mm/5" Net Weight 188g Package Content 1 x S10K-SCLCR06 1 x Suitable Wrench 10 X  CCMT060204 HM YBC251 Product application Boring from light roughing to finishing in small bores Accepts Inserts CCMT Product features Profiling bar for semi-finishing and finishing operations Bar hardness approximately 45HRC Extreme gloss finis Positive 80 degree diamond CCMT inserts      inserts:    Insert Grade: YBC251 Chip Breaker: HM Material: Carbide Coating: CVD Tin Al2O3 TICN Machining Parts Material: Steel Alloy Machining Process: semi-finish/medium Product application Material Group Material Type Examples  ISO Code Cutting Application    Steels & Alloy alloy steels, tool and die steels, ferritic/martensitic steels 1020, 1050, 4140, 4340, 8620, P20  P10 - P35  semi-finish/Medium    Stainless Steel  Ferritic/Martensitic, Austenitic, Austenitic/Ferritic (duplex)  301, 303, 304, 304L, 316L  M20 - M35  semi-finish   Steel Alloy Optimal (Min - Max)  Cutting Speed Vc (SFM)   1049 (853 - 1312) Feed Rate (inch/rev)  0.009 (0.004 - 0.019) Depth of Cut (inch)    0.078 (0.019 - 0.118) Stainless Steel   Cutting Speed Vc (SFM)   590 (393 - 853) Feed Rate (inch/rev)  0.009 (0.004 - 0.019)  Depth of Cut (inch)   0.078 (0.019 - 0.118) Product features YBC251 Coating Grade Tin Al2O3 TiCN       Carbide Substrate     Surface with Tin coating to reduce friction and easily identify worn out spot Special structure Al2O3 layer forming a thermal barrier to protect insert from Anti-plastic deformation during high speed try cutting TiCN layer has high wear resistance characteristic Carbide substrate form by special crystal structure to increase the rigidness of the core base and thermal stability at high temperature YBC251 consist of tenacious carbide substrate with strong cutting edge and optimal layers of MT-TiCN, thick layer of Al2O3, Tin Coating.  It's suitable for general purpose on wide range of material: finishing, semi-finishing and light roughing of steel, cast steel and stainless steel.   Notice:  1. Due to the light and screen difference, the item's color may be slightly different from the pictures. Please understand. Make sure you don't mind before you bid.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Manufacturer hypo
Brand hypo
Country/Region of Manufacture China
Model S10K-SCRLR 10X125mm
