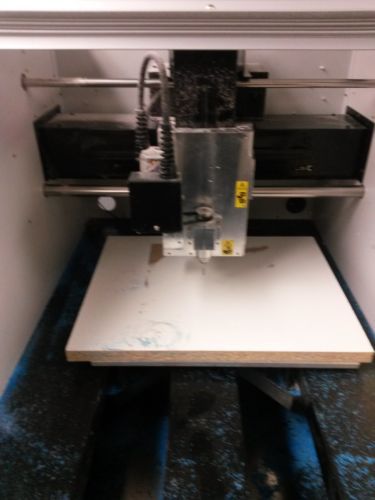

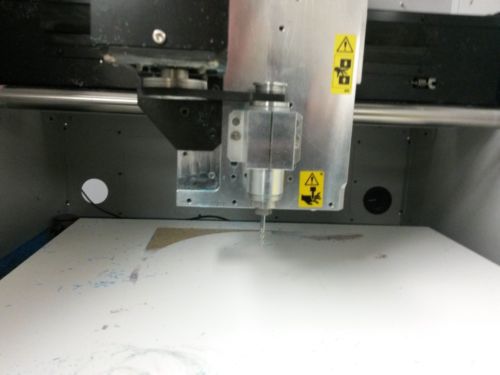

Roland Mdx 40 Cnc Mill W/ 4th Axis

US $6,000.00

Cincinnati, Ohio, United States
Jan 30th

Open on mobile:
QR code

MODEL MDX-40A Acceptable materials Resins such as chemical wood and modeling wax (metal not supported) X, Y, and Z strokes 12 (X) x 12 (Y) x 4-1/8 (Z) in. (305 (X) x 305 (Y) x 105 (Z) mm) Distance from spindle tip to table Maximum 123 mm (4-13/16 in.) Table size 12 (W) x 12 (D) in. (305 (W) x 305 (D) mm) Loadable workpiece weight 8.8 lb (4 kg) XYZ-axis motor Stepping motor Feed rate XY-axis: 0.0039 to 1.9 in./s (0.1 to 50 mm/sec.), Z-axis: 0.0039 to 1.1 in./s (0.1 to 30 mm/sec.) Software resolution NC-code: 0.000039 in./step (0.001mm/step), RML-1: 0.00039 in./step (0.01 mm/step)(RML-1) Mechanical resolution 0.00008 in./step (0.002 mm/step)(Micro-step) Spindle motor Brushless DC motor, Maximum 100 W Spindle rotation 4500 to 15000 rpm Tool chuck Collet Interface USB (compliant with Universal Serial Bus Specification Revision 1.1) Power supply Voltage and frequency AC100 to 240 +/-10%, 50/60 Hz Required power capacity 2.1 A Power consumption Approx. 210W Acoustic noise level No-load operation: 56 dB (A) or less, Standby: 42 dB (A) or less Dimensions 26-3/8 (W) x 29-15/16 (D) x 21-13/16 (H) in. 669 (W) x 760 (D) x 554 (H) mm Weight 143.3 lb (65 kg) Operation temperature 41 to 104°F (5 to 40°C) Operation humidity 35 to 80% (no condensation) Included items Power cord, power plug adapter, USB cable, collet, Z0 sensor, hexagonal wrench, hexagonal screw drivers, spanners, Roland System Requirements for Inlcuded Software OS Windows Vista®(32bit edition) or Windows® XP (32bit edition) and Internet Explorer 6.0 or later CPU Pentium® 4, 2.4GHz or faster recommended RAM 1GB or more recommended Free hard-disk space 20MB or more recommended Video card and monitor A resolution of 1024 x 768 or more recommended, video card compatible with OpenGL recommended, and at least 16-bit Optional Rotary Axis Unit (ZCL-40A) Maximum angle of rotation +/-18 x 105° (+/-5000 rotations) Maximum loadable workpiece size* 4.7 in.(120 mm) diameter by 10.6 in. (270 mm) long Maximum thickness holdable by workpiece clamp 0.4 to 1.8 in. (10 to 45 mm) Loadable workpiece weight 2.2 lb (1kg ) (including clamps) Feed rate 0.23-11.79 rpm Mechanical resolution 0.005625 deg./step (Micro-step) Dimensions 18.5 (W) x 11.3 (D) x 4.5 (H) in. (470 (W) x 286 (D) x 115 (H) mm) Weight 16.5 lb (7.5 kg) Included items Y-origin sensors (large and small), Z-origin sensor, Y-origin detection pin, center drill, live center, hexagonal wrench, cap *The range that can actually be cut is limited by the amount of tool extention and interference between the loaded workpiece Optional 3D Scanning Sensor Unit (ZSC-1) Maximum scanning area 12.0 (X) x 12.0 (Y) x 2.3 (Z) in. (305 (X) x 305 (Y) x 60 (Z) mm) Distance from probe tip to table Maximum 3.6 in. (92.4 mm) Table load capacity Maximum 8.8 lb (4 kg) Sensor Type Roland Active Piezo Sensor (RAPS) Effective Probe Length 2-5/16 in. (60 mm) Tip Bulb Radius 0.00315 in. (0.08 mm) Minimum scan pitch .002 in (.051 mm) Scanning method Contacting, mesh-point height-sensing Operating speed XY-axis 0.6 to 1.1 in./s (15 to 30 mm/sec.) Z-axis 0.04 to 1.1 in./s (1 to 30 mm/sec.)

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.

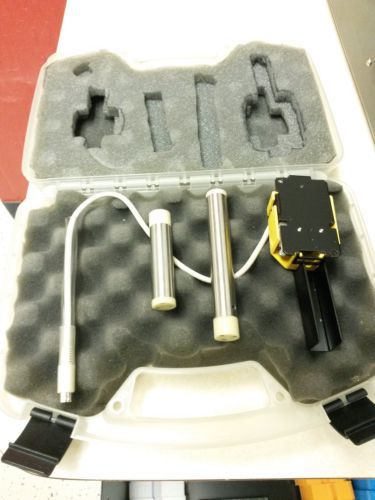

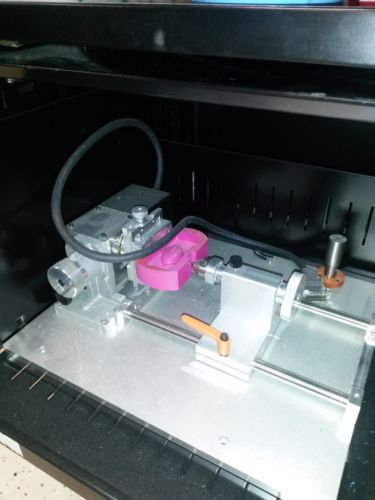

Seller Notes	“Used... Comes with software, live 4th axis, 3D scan, etc...”
