Renishaw Cmm Improved Spec Ph10m Hcu 1 Phc10-3 Controller With 6 Month Warranty

US $8,000.00

Minneapolis, Minnesota, United States
Jan 30th

Open on mobile:
QR code

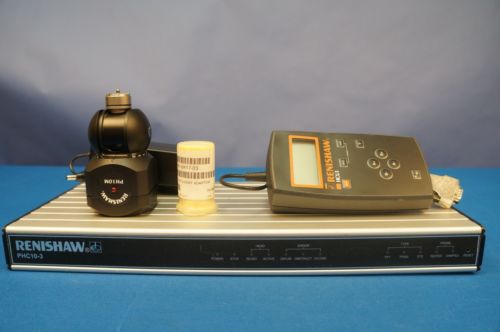

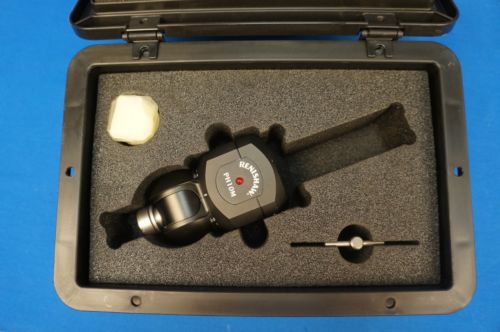

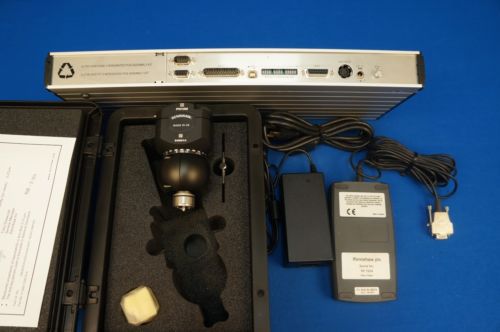

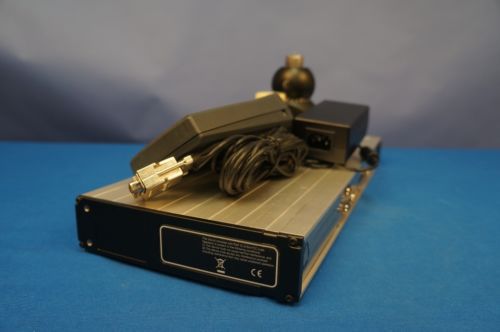

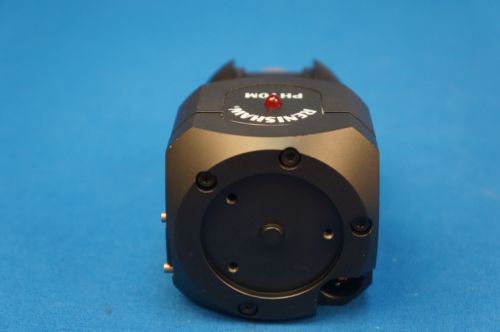

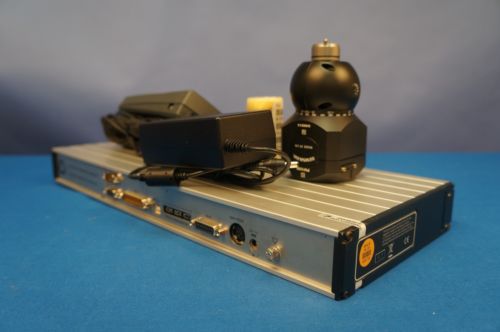

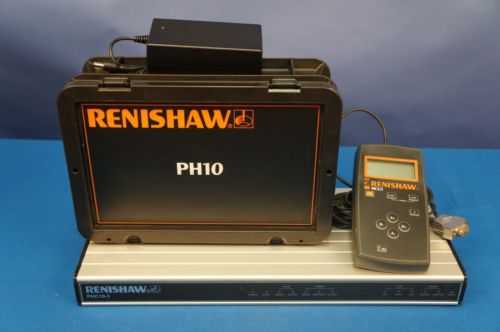

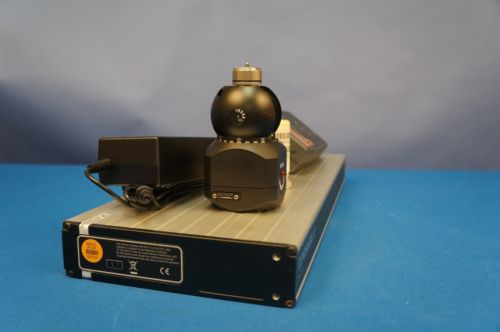

Powered by Frooition Pro Shop Search Renishaw CMM PH10M Improved Spec HCU 1 PHC10-3 Controller with 6 Month Warranty Click here to view full size. Full Size Image Click to close full size. Item Description Factory Rebuild Renishaw Improved Accuracy Specification PH10M Motorized Probe Head with PAA1, Renishaw PHC10-3 Probe Head Controller. (The PHC10-3 has now replaced the PHC10-2) and HCU1 al with 6 Month Warranty. RS 232 and USB communication for PHC10-3 controller. If your application requires custom cables please contact us for a buy it now package price. We also offer partial refunds for probing that you have replaced with this system. If you were to purchase these items at full retail price you would pay $25756.00 The range comprises three PH10 models, each of which can carry a range of probes and extensions and can be orientated in 720 repeatable positions, giving access to the most difficult-to-reach workpiece features. All three variants of the new PH10 heads are now supplied with a revised repeatability specification, down from 0.5 µm (2?) to just 0.4 µm (2?) (specified at a distance of 62 mm), giving users improved positioning at the stylus tip. The new specification heads are physically differentiated by a new ‘aqua blast’ finish which gives a modern, matt black appearance. PH10M The PH10M can carry long extension bars and complex probes such as SP25M or TP7M. The highly repeatable autojoint allows rapid probe or extension bar changing without the need for re-qualification. PH10M specification Length 117 mm Width 62 mm Weight 645 g Probe mounting Autojoint (multiwire) Head mounting PH10M shank to suit CMM Suitable controller PHC10-2 Repeatability of position 0.4 µm (0.00002 in) specified at a distance of 62 mm Total no. of positions 720 Max recommended drive torque 0.45 Nm Maximum extension bar 300 mm (11.8 in) using PAA3 extension PHC10-3 head controller PHC10-3 head controller receives instructions from the CMM control. The PHC10-3 controls all head functions and reports system status to the CMM: Drives PH10 (PH10T, PH10M or PH10MQ) to position - sent either from the HCU1 or CMM. Checks and reports position Flags up errors, e.g. failure to reach position, obstruction before or after locking etc. The PHC10-3 does not process any of the probe sensor signals. These are railed clean through the heads axes and controller to the probe interface. PHC10-3 specification Length 180 mm Width 440 mm Height 44 mm Weight 1.5 Kg Data transmission RS232 or USB Current Consumption (at 240V) less than 1 A PSU electrical ratings Supply voltage: 100-240 V ± 10% Frequency range: 50/60 Hz Power consumption: 49 W max. Transient voltages: Installation category II Input connectors 15 way 'D' Power supply 24 V DC 49 W provided by the Emerson PSU (DP4024N3M) power adaptor Probe output connectors 7-pin DIN or 9-way 'D' type Maximum cable length RS232 USB 50 m 5 m (extendible in lengths of 5 m by use of a hub, to a maximum length of 30 m) Hand held control unit HCU1 only This is by far the best price you will find on a Renishaw PH10M Motorized Probe, HCU1 PAA1 and PH10-3 Probe Head Controller. Why pay retail prices when you can purchase with Warranty from Metrology Parts. Purchase with Paypal from Metrology Parts a Paypal verified retailer. If what you order is not what you receive you will be refunded the full purchase price for this sale. Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw product needs. If you have any questions feel free to contact us. With 26 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support. About Us Payment Shipping Terms Returns About Us About Us Payment Shipping Terms Returns Payment About Us Payment Shipping Terms Returns Shipping About Us Payment Shipping Terms Returns Terms About Us Payment Shipping Terms Returns Returns Helpful Links More Items! Frooition www.frooition.com | eBay design, eBay store design, eBay shop design, eBay template design, eBay listing design This listing is currently undergoing maintenance, we apologise for any inconvenience caused.

Condition:	Manufacturer refurbished: An item that has been professionally restored to working order by a manufacturer or manufacturer-approved vendor. This means the product has been inspected, cleaned, and repaired to meet manufacturer specifications and is in excellent condition. This item may or may not be in the original packaging. See the seller’s listing for full details. ...	Country/Region of Manufacture	United Kingdom
MPN	A-1025-0050 A-1036-0001 A-1345-0220
Brand	Renishaw
Country of Manufacture	United Kingdom
Model	PH10M PHC10-3 HCU1 PAA1
