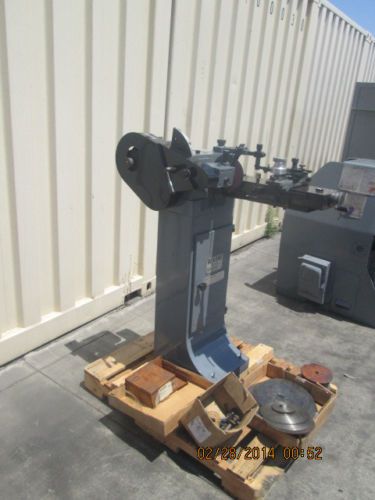

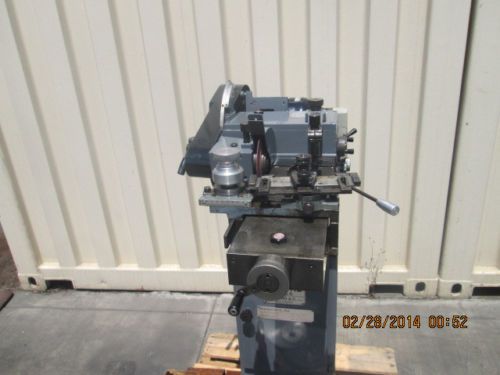

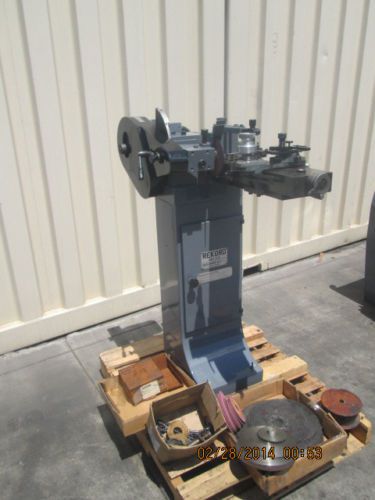

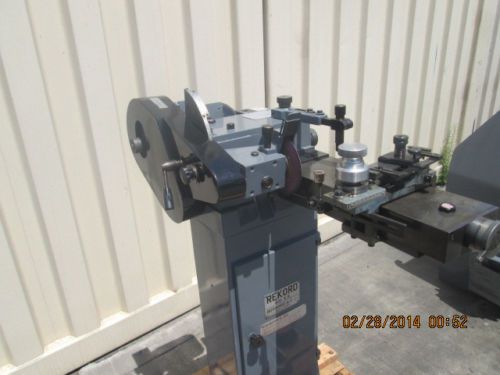

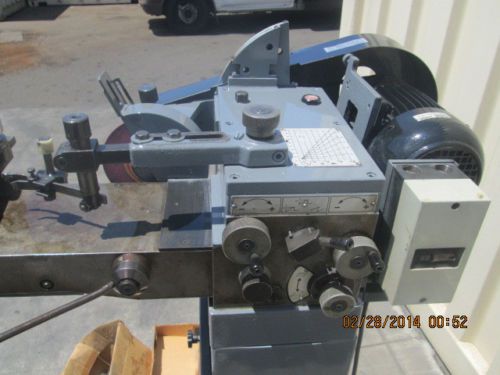

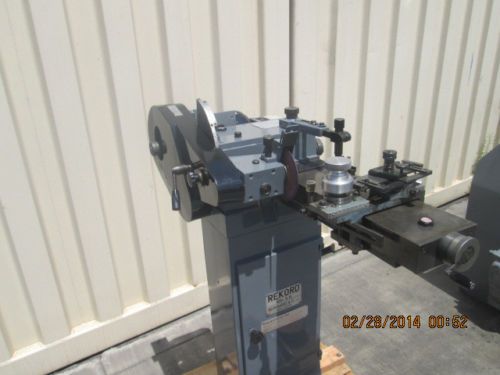

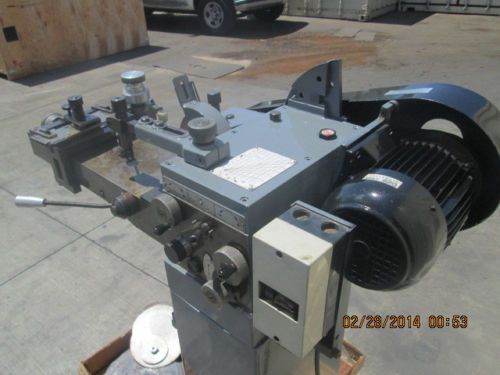

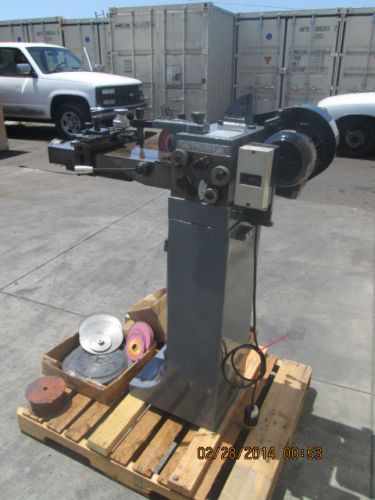

Rekord Model 400 Automatic Grinder For Hss And Friction Circular Cold Saw Blades

US $7,950.00

  • Huntington Beach, California, United States
  • Jan 30th

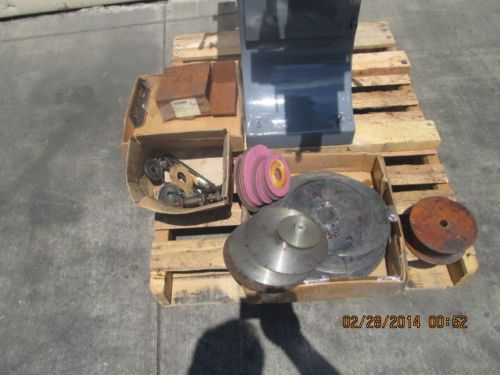

 Specs from website need to be verified! Please Call Jim for more inof 7146121480 Rekord 400B: Automatic Grinder for HSS and Friction Circular Saw Blades Features: Sharpening of circular saws with Straight, Curved, or Chamfered teeth (Form A&B (C optional) according To DIN 1840) Quick adjustment for chamfering Easy set-up of rake angles Fully Enclosed Gearbox with all moving parts in oil bath Three indexing speeds (60 – 120 – 200 teeth/min) Standard Machine Includes: Machine Stand Circular saw blade attachment: Diameter 65-400mm (20-550 optional) Set of bushings for 16mm shaft: 1”, 22, 27, 32, 40 & 50mm   MACHINE SPECIFICATIONS Blade Diameters 65-400mm (2.6-16”) Grinding Motor .75 HP Maximum blade thickness 6mm Maximum tooth pitch 24mm (.9”) Maximum tooth depth 15mm Grinding Wheel Dimensions 150mm x 32mm bore Grinding wheel speed 4200 rpm Indexing speed (3 speeds) 60-120-200 teeth/min. Voltage 220/400V, 3Ph, 60Hz Weight 145 kg (320 lbs.)   Control Options Hi-Low (Form C) Option (Ability to grind teeth with height differences automatically) Central dust extraction Circular saw attachments: 65-550mm , 30-70mm, 20-40mm Bandsaw attachment (For Bandsaws from 1/2 to 1 1/2” width and any length) Index Plates: For manufacturing blades from blanks or Grinding blades with broken teeth (specify # of teeth and diameter)
