Quantum Data 780 Handheld Hd Pattern Generator & Hdmi Test Instrument Qd780

US $2,499.00

  • Huntington Beach, California, United States
  • Jan 29th

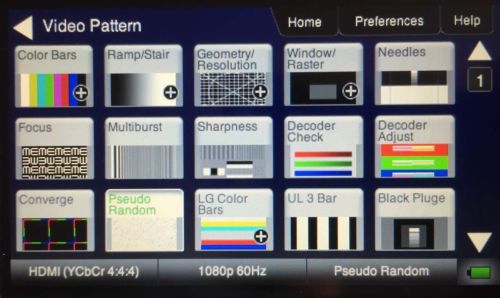

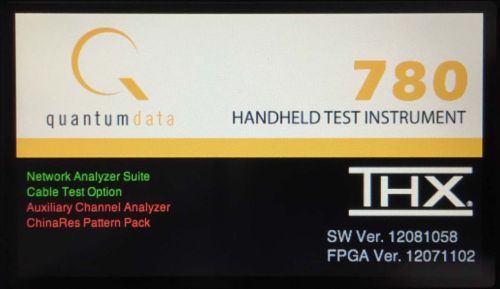

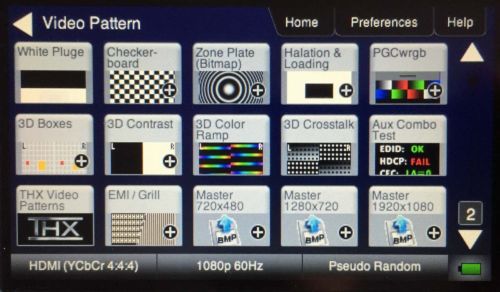

This Quantum Data 780 is in pristine condition and comes with some valuable add-on options including the Network Analyzer Suite ($760 value), the HDMI Cable Test Option ($494 value) and the THX test Pattern package. Unit comes with power adapter, USB cable and owners manual. This unit is a must have for enthusiast and professional display calibrators. Not only does it sever as a full functional pattern generator that can interface with CalMAN, ChromaPure and other calibration software. It also can be used to test HDMI cables before installing them and you can even use the display to show program content right on the unit's screen! If you are not familiar with this unit, be sure to read the 780 Data Sheet found at quantumdata.com  Standard Features Battery powered for portability. Device is powered via internal batteries or externally via an AC charger. Video pattern testing. Test a display's HDMI and analog component inputs with all the necessary standard timings to ensure that it can render video test patterns including deep color and HDMI 3D patterns. Over 25 video patterns supported. Add custom bitmaps. Create your own custom formats. Scroll bitmap patterns to test for motion artifacts. HDMI audio testing. Send audio patterns, tones & noise through HDMI, SPDIF or Optical digital audio outputs including over HDMI 1.4 ARC channel for 780A. Program audio parameters such as sampling rate, bit depth and channels. Use a variety of audio formats including LPCM, Dolby, DTS and high bit rate audio formats such as Dolby TrueHD and DTS Master Audio. HDMI analyzer for sources. Emulate a known-good HDMI sink device to analyze HDMI video and audio content from an HDMI source device with HDCP content protection. View the incoming video images and metadata from an HDMI source device on the LCD display even when content is protected with HDCP. Installer Test Utility. Quickly diagnose HDMI interoperability problems through an automated and simplified interface. Run tests upstream toward the source, downstream toward the sink or test both upstream and downstream simultaneously with the "Link" test. The utility also enables you to test on both sides of a repeater.  HDMI Network Analyzer (Option Included) Verify HDCP on repeaters and displays. Send HDCP encrypted video content to a downstream repeater (e.g. AVR) and/or sink (e.g. DTV). Check the authentication response from the sink. Check Max HDCP HDMI devices. Check the number of HDCP devices an HDMI source supports during HDCP authentication. Verify video timing. Verify the timing of an HDMI source. Compare against a known-good timing. Verify video type. Verify the video type of an HDMI source. View AVI infoframe content. Identify EDID problems. Run verification tests on the EDID of a sink device such as an HDTV or input of a repeater device. View the entire contents of the EDID of the sink device. Run portions of the EDID compliance test. Compare two EDIDS. Verify an HDMI source's response to an EDID. Emulate the EDID of any HDMI sink device to verify that an HDMI source device responds properly to it. Store and retrieve multiple EDIDs for use in testing. Verify audio data. Read the audio infoframes and audio sample packet headers including channel status bits from a connected HDMI source. Check for CEC devices. Poll an HDMI installation for CEC devices.  HDMI Cable & Link Test (Option Included) Verify HDMI cables. Run tests on HDMI cables. Test for pixel errors on multiple formats (resolutions) on the TMDS video and check continuity on the 5 volt, hot plug and DDC lines. Prequalify HDMI networks (prior to installation) with Repeater Test. Verify HDMI networks comprised of cables, audio/video processors, extenders, switches, repeaters, etc. prior to installation. Test for pixel errors on multiple formats (resolutions) on the TMDS video and check continuity on the 5 volt, hot plug and DDC lines. Test HDMI networks (once installed) with Frame Compare test. Verify HDMI networks comprised of cables, audio/video processors, extenders, switches, repeaters, etc. once installed. Test for pixel errors on the TMDS video.  Custom Bitmap Test Pattern Pack (Option Included) THX, LTD. Test Pattern Package - The THX test patterns enable A/V professionals to calibrate the displays on high-end 3D-capable HDTVs to match the same standards as those used in post-production facilities worldwide. Below are some of the THX test patterns included: • 3D convergence – test patterns to align pixels for proper convergence • 3D crosstalk – test patterns to determine level of 3D crosstalk • Color gamut – 2D/3D primary & secondary color patterns to fine-tune colors & gamma • Picture performance – pattern within THX Optimizer to verify accuracy of skin tones • THX box – 2D/3D grayscale test patterns to accurately adjust white point and gamma • THX Optimizer – test patterns to easily adjust brightness, contrast, color, tint, etc. • Uniformity – 2D/3D circle patterns to determine luminance & chrominance screen uniformity
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...
Brand Qunatum Data
Manufacturer Quantum Data
Model QD780
Type HDMI Video Generator
Country of Manufacture United States
