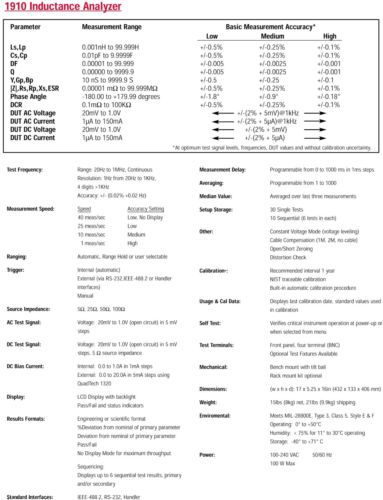

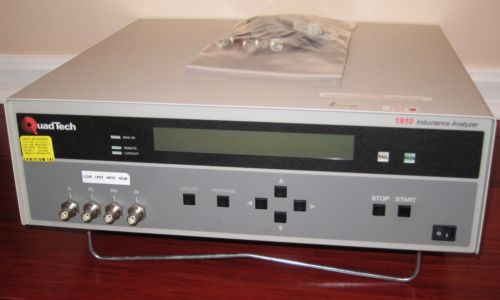

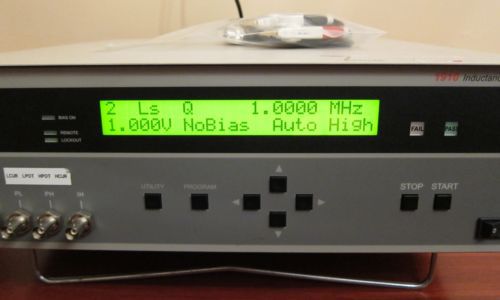

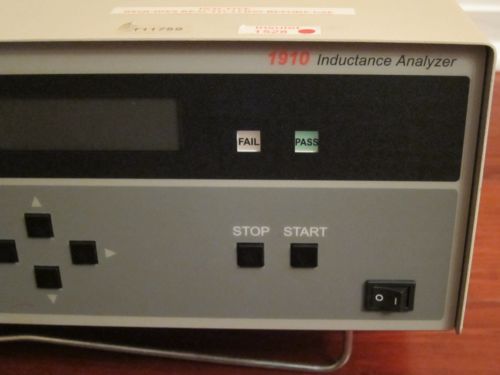

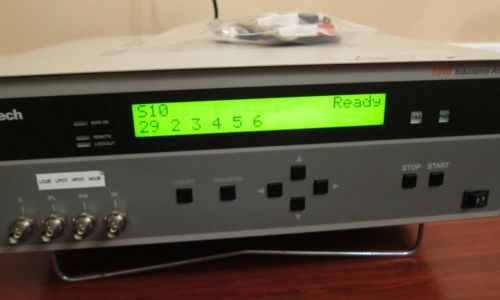

I G H E C H O L O G Y F F E R Do not miss this incredible opportunity!Catch your own Wave! *************************************************************************************************************************************** *************************************************************************************************************************************** Quadtech 1910 - Inductance Analyzer (20 Hz - 1 MHz) + Bonus (Instruction Manual) About: QuadTech QuadTech was established in March of 1991 with the purchase of the Precision Instrument Division of GenRad. The products and people joining QuadTech from GenRad at that time represented a long and successful heritage going back to 1915 when GenRad was founded. QuadTech has continued to build on that reputation by becoming a leader in the Electrical Safety marketplace with the sole mission of Making the Customer Successful. Throughout this reign of leadership in the electrical safety market space, QuadTech looked to Chroma ATE as a primary manufacturer of their hipot testers, safety analyzers, LCR meters and milliohmeters. This partnership was solidified in January of 2012 when the assets of QuadTech were purchased by Chroma Systems Solutions. This acquisition has allowed QuadTech to provide the sales and service of Chroma's comprehensive line of electrical power test instrumentation and automated test systems, as well as safety testers throughout North America including new products and technologies targeted at emerging commercial and defense, solar, EV/Automotive and LED markets. Product Condition: This Quadtech 1910 Inductance Analyzer (20 Hz - 1 MHz) is in good cosmetic and working condition as you can see at the pictures. This lot includes: Quadtech 1910 - Inductance Analyzer (20 Hz - 1 MHz) 4 BNC Test Probe Cable Power cord + Bonus: Document Library (2 pdf-files) ========================== Manuals (1) Instruction Manual (With Programming the Quadtech 1910 Inductance Analyzer) - 106 pages Handbill (1) 1910 Inductance Analyzer A High Performance Tester- 2 pages USES, FEATURES, Introduction, Description Product Specifications Introduction: The 1910 is a production oriented, Inductance Analyzer, with a programmable frequency range of 20Hz to 1MHz, designed to perform inductance and other impedance measurements on coils and wire wound devices. The unit is also capable of measuring DC resistance between 0.1m? and 100k? and provides voltage or current monitoring to the test device. The 1910 also provides a sequence testing mode, allowing up to 6 unique tests with one single start command. With its user friendly menu programming, automatic lead zeroing, and 5 digit measurement resolution the instrument provides fast and accuratetest results. Uses: Production Testing of Inductive Components & Wire Wound Devices AC Impedance & DC Resistance Measurements on a Wide Variety of Components Inductance Measurements Under DC Bias Current Conditions Component Design & Evaluation Features: 20 Measurement Parameters Frequency Range 20 Hz to 1MHz 0.1% Basic Measurement Accuracy Measurement Speeds Up to 40/sec DC Resistance Measurements Monitoring of DUT Voltage and Current 5 Digit Measurement Resolution Constant Voltage (Voltage Leveling) IEEE-488, RS-232 & Handler Interfaces, all Standard Open/Short Zeroing & Cable Compensation Load Correction 14 Pass/Fail Bins Keypad Lockout Product Description: 20 Measurement Parameters Measure and display any two of 15 impedance parameters simultaneously, with a basic accuracy of 0.1%. Additionally the 1910 can measure the DC resistance, or display the current through or voltage across a test device ensuring the operator of the real test conditions. Wide Frequency Over 27,000 user programmable test frequencies to fully characterize devices over the range of 20 Hz to 1 MHz. Automatic Test Sequencing For increased productivity and throughput the 1910 can perform up to six different tests in sequence with a single push of the start button. Each test can have different measurement parameters, test conditions and limits. DC Current Bias The instruments programmable internal DC bias current source from 1 mA to 1 Amp allows components to be tested under real operating conditions. This can be expanded to 100 Amps when the 1910 is used in conjunction with QuadTech's Model 1320 Bias Current Source and slave units Setup Storage/Recall The test operator has the ability to store and recall, from internal memory, up to 30 single test setups and 10 sequential setups (six tests in sequence). The front panel can be locked out, with password protection, to ensure that procedures are run the same way every time. Load Correction Substantially improves instrument accuracy by allowing the operator to specify the value of a known standard, measure it, and apply a correction to ongoingmeasurements. Programmable Source Impedance The operator is able to set instrument source impedance at 5, 25, 50 or 100 ohms, an important feature when comparing measure ments to those made on other another testers. Measurement results can vary substantially based solely on the source impedance of the tester being used. Specifications: Look at the last photo at description of this lot.
