Pwm Circuit For High Voltage - Ignition Coil - Flyback - Tesla Coils Pwm-ocxi V2

GBP 69.99

Alsager, Cheshire, United Kingdom
Jan 29th

Open on mobile:
QR code

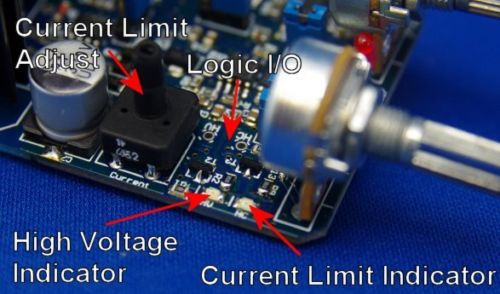

Advanced PWM High Voltage Control from RMCybernetics The PWM-OCXi v2 is an advanced power PWM control circuit. This quality, UK made circuit is perfect for controlling power to loads such as Tesla Coils, ignition coils, flyback transformers, and solenoids. The adjustable frequency and adjustable duty make it ideal for driving high voltage coils at their resonant frequency for maximum efficiency. It has a range of onboard circuits for dealing with transients and voltage spikes caused by noisy loads like ignition coils. This allows the device to run with high performance levels even when in a demanding environment. It also includes an adjustable current limit to protect from short circuits or allowing it to operate at a constant current with dynamic loads. The PCB contains multiple extra connector pads which allow the device to be interfaced with other devices such as microcontrollers. Full details are available in the datasheet. Features and Specifications ? Advanced active voltage and current protection ? Wide supply voltage range (12V – 30V) ? Transient voltage tolerant to 500V ? Standoff voltage from 0 to 340V ? Max output current 9A* continuous, 120A peak ? Latest low voltage drop IGBT technology ? Frequency range 0Hz to 1.5MHz ** ? Pulse width adjustable between 0% and 100%*** ? Adjustable current limit / constant current mode ? I/O connections for logic interfacing ? Pulse width can be set as percentage duty, or as a specific pulse time. ? Highly compact design ? High quality double layer PTH, 2oz Copper PCB ? Dimensions: L85 x W46 x H44 mm (pots +21mm) Fully assembled and tested before shipping * Max current varies with frequency and operating temperature ** Adjustable in ranges set by inserting timing capacitor. One capacitor supplied and circuit is ready for use. For full details and specifications - Download the PWM-OCXi v2 Instruction Manual Check our website for project ideas plus more great electronic modules and components About Us RMCybernetics are based in Alsager, Cheshire. We provide quality circuits for research and hobby projects. Shipping We aim to ship as soon as possible after recieving your order. We send by 1st or 2nd Class recorded with Royal Mail Payment Please pay right away with PayPal. If you are local to Alsager, you can also pay in our shop using cash or card. Contact Us Call us on 01270 747 008 Mon-Fri 9am-6pm Description About Us Shipping Contact Business seller information RMCybernetics Contact details Richard Morrow 69b Crewe Road Alsager Cheshire ST7 2EZ United Kingdom Phone:01270|747008 Email:rpmorrow@hotmail.com Return policy To qualify for a hassle-free return, you must pay with PayPal and have the item shipped to a US address. The item must be returned in the same condition it was received. See terms and conditions - opens in a new window or tab. After receiving the item, open a return within Return shipping 14 days You pay return shipping

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	RMCybernetics
Model	PWM-OCXi v2
MPN	PWM-OCXi v2
Function	PWM Ignition coil driver
Country/Region of Manufacture	United Kingdom
Example Uses	Tesla,Ignition Coil Testing, High Voltage projects
