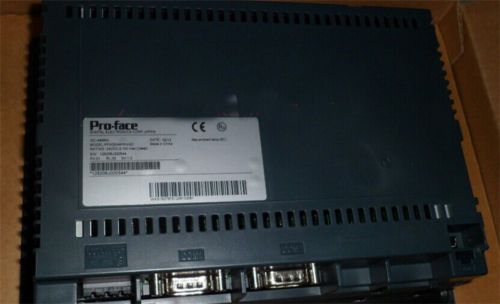

Pfxge4408wad Hmi 7" 800x480 Dc24v Dhl Freeshipping

US $283.00

shenzhen,Guangdong, China
Jan 29th

Open on mobile:
QR code

PFXGE4408WAD HMI 7" 800x480 DC24V New PFXGE4408WAD Specification Functional Specifi cations PFXGE4501WAD PFXGE4401WAD PFXGE4408WAD Display Type 10.1" TFT Color LCD 7" TFT Color LCD Display Colors 65,536 colors Resolution 800x480 pixels (WVGA) Backlight LED Active Display Area 219.6x131.76mm 154.08 x 85.92 mm Language Fonts *1 English Character Sizes Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts Application memory FLASH ROM 8 MB Backup NVSRAM 128 KB -- Clock Accuracy Variations in operating conditions and battery life can cause a clock inaccuracy from -380 to +90 seconds per month. Uses the clock of An external device Touch Panel Type Resistive Film (analog) Interface Serial (COM1) RS-232CAsynchronous Transmission,Data Length: 7 or 8 bit, Parity: none, Odd or Even, Stop Bit:1 or 2 bit,Data Transmission Speed:2,400 bps to115,200 bpsD-Sub 9 pin (plug) Serial (COM2) RS-422 / RS-485Asynchronous Transmission,Data Length: 7 or 8 bit, Parity: none, Odd or Even, Stop Bit:1 or 2 bit,Data Transmission Speed:2,400 bps to187,500 bps D-Sub 9 pin (plug) USB (Type A) Conforms to USB2.0 (Type A) x 1, Maximum Transmission Distance: 5 m (16.40 ft) -- USB (Type mini B) Used for application download General specifications: General Specifi cations PFXGE4501WAD PFXGE4401WAD PFXGE4408WAD International Safety Standards CE Certifi cations and Standards Directive 2006/95/EC (Low voltage), Directive 2004/108/ EC (EMC), EMI: EN61000-6-4, EMS: EN61000-6-2, EMS: EN611131-2, UL50 Type 4 indoor only Rated Input Voltage 11 W 8.2 W 5 W Ambient Operating Temperature 0 to 50centigrade degree Grounding Observe local codes and standards. The ground connection must have a resistance 0.1ohm and the ground wire must have a cross section of at least 2 mm2(AWG 14). Vibration Immunity IEC/EN60068-2-6 5 to 150 Hz, 3.5 mm (0.38 in) max., 1 gn pm 3 axes Structure Front Panel: IP 65 (IEC60529)Enclosure type 4 indoor use only (Ul50) with screw installation fasteners Rear Panel: IP 20 (IEC 60529) Coating The PCBA is coated against dust and humidity External dimensions (W x H x D)( mm) 275.8 x 206.8 x59.8 207.8 x 153.2 x 59.8 Cooling Method Natural air circulation

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	PFXGE4408WAD
MPN	PFXGE4408WAD
