Pepperl + Fuchs Power Supply Kfa6-str-1.24.4

US $100.00

  • New Plymouth, New Zealand
  • Jun 9th

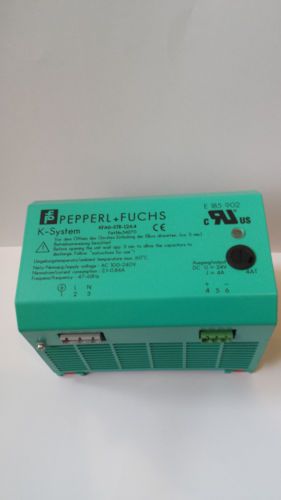

Power Supply KFA6-STR-1.24.4 115/230 V AC supply Output 24 V DC, 4 A Fused output Power Rail connection Supply Connection terminals 1(PE), 2 (L1), 3 (N) Rated voltage 92 ... 265 V AC , 47 ... 63 Hz Rated current 2.1 ... 0.84 A Fusing back-up fuse : B characteristic: 10 A C characteristic: 6 A D characteristic: 3 A Failure override time > 75 ms / 230 V AC ; 5 ms / 115 V AC Output Connection terminals 4+, 6- Current 0 ... 4 A , Power Rail limiting by means of fuse 4 AT , electron. limitation typ. 4.6 A Voltage 23.28 ... 24.72 V DC Ripple < 100 mV ss Efficiency typ. 87 % Overvoltage protected < 28 V DC Directive conformity Electromagnetic compatibility Directive 2004/108/EC EN 55011:2009 + A1:2010, EN 61000-6-1:2007, EN 61000-6-2:2005, EN 61000-6-3:2007 + A1:2011, EN 61000-6-4:2007 + A1:2011, EN 61000-3-2:2006 + A1:2009 + A2:2009, EN 61000-3-3:2008 Low voltage Directive 2006/95/EC EN 60950-1:2006 + A11:2009 + A12:2011 Conformity Degree of protection IEC 60529:2001 Ambient conditions Ambient temperature -20 ... 60 °C (-4 ... 140 °F) Mechanical specifications Degree of protection IP20 Mass approx. 800 g Dimensions 140 x 103.5 x 99 mm (5.5 x 4.1 x 3.9 in) Mounting on 35 mm DIN mounting rail acc. to EN 60715:2001 Connection possibilities self-opening connection terminals, max. core cross-section 2 x 2.5 mm2 International approvals UL approval UL recognized E185902
Item is in new unused condition ( Original packing box missing, so does not qualify for 'New' condition ).
Brand Pepperl Fuchs
MPN 54270
Model KFA6-STR-1.24.4
Country/Region of Manufacture Germany
