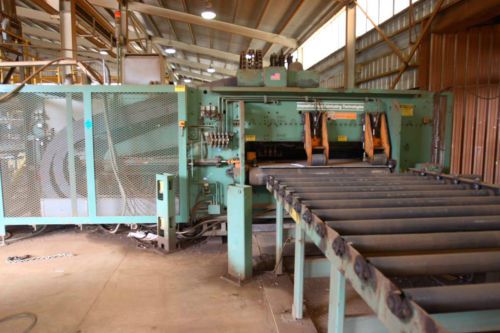

Peddinghaus Plate Processing Machine

US $325,000.00

  • Fort Worth, Texas, United States
  • Jan 30th
FOR ALL INQUIRIES PLEASE CALL TREVOR @ 817.247.7336Model: FPDB1800 Year:2006 Specs: Material Capacities Thickness Minimum 1/4" (6mm) Maximum 3" (75mm) Width Minimum 6" (150mm) (actual machine closes to 1.75" ) Maximum 72" (1800mm) (actual machine opens to 74.25" ) Stock Length Minimum 48" (1219mm) (required to switch from entry to exit encoder) Maximum 20 ft. (6.1 Meters) General Drill Specifications Max. Drill Size 2" (51mm) Power Per Spindle 38 HP (28kw) Three Spindle Speeds: Slow Spindle 120-1100 RPM Medium Spindle 150-1325 RPM Fast Spindle 200-1800 RPM Single Spindle Speed 120-1100 RPM Rapid Advance & Retract 240 IPM (6 MPM) Drill Feed Rate 1-20 IPM (25-508 mm/min) Drill Holder Options No. 4 Morse Taper; Graflex Size 6; Komet #63 General Punch Specifications Capacity throughout entire stroke 125 Tons (113 Metric Tons) Max. Material Thickness 1" (25mm) Full Stroke of Press Ram 4-1/4" (108mm) Max. Hole Size with 292 Punch 1-3/4" (45mm) Max. Hole Size with 272 Punch 1-1/4" (32mm) Stripper Type Positive Hydraulic Punch Stroke Control Automatically Adjustable to Plate Thickness Machine Control Siemens Model 840 Di All equipment is sold “as is” with no warranty either written or implied. All specifications, accessories, standard or optional, are approximate. It is the Buyer’s responsibility to make a thorough inspection for verification
