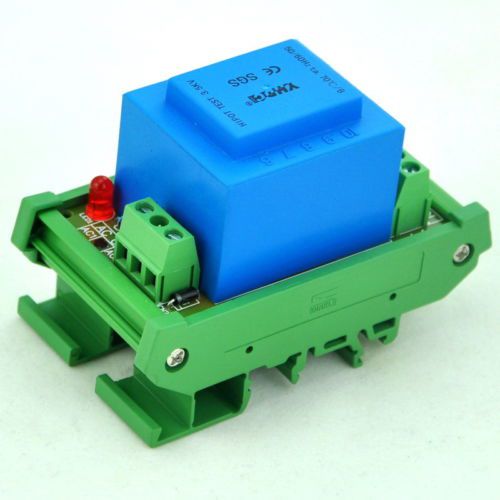

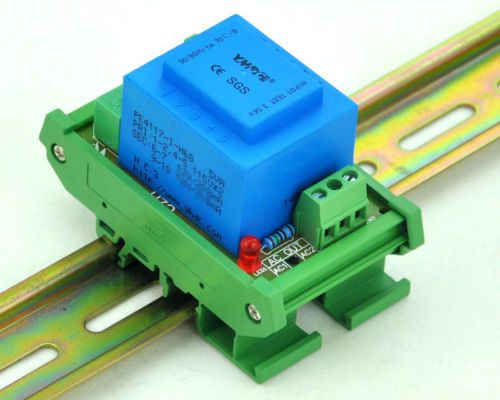

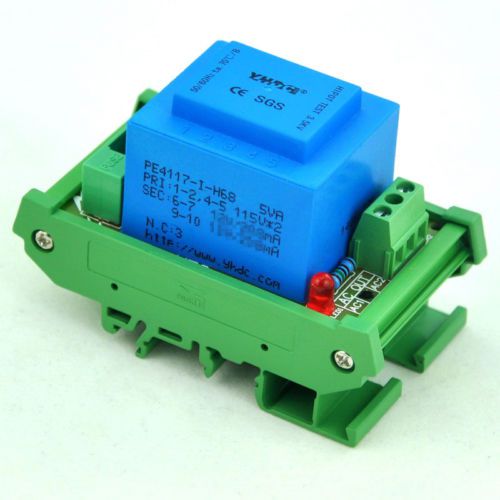

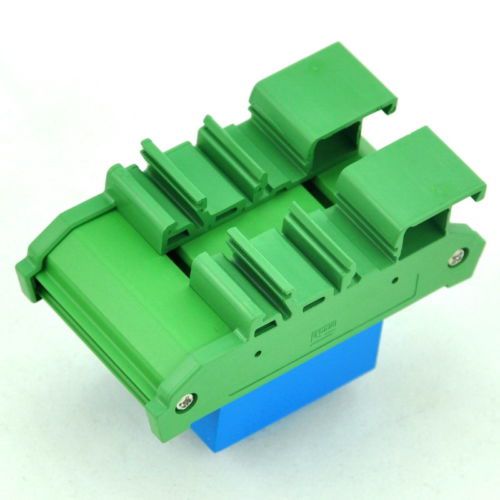

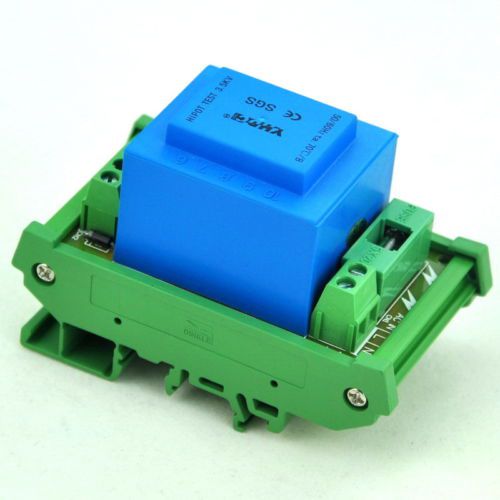

P 230vac, S 2x 18vac, 5va Din Rail Mount Power Transformer Module,d-1005t/r.

US $23.00

  • Hong Kong, Hong Kong
  • Jan 29th
Open on mobile:
QR code
    Description 5VA Power transformer module, DIN rail mount version. Primary input: 210~250VAC 50/60Hz. Secondary output voltage/current: 2x 18VAC / 2x 138mA. Part number: D-1005T/R Feature:     DIN rail mount or panel mount to selectable, DIN rail carrier   can support width 35mm / 32mm / 15mm rail.     With primary input fuse, fuse holder easy to replace the  fuse.     Epoxy resin encapsulated safety isolating transformer.     Screw terminal block easy to connect wires.     Output power indicator LED. Power transformer characteristic:     Epoxy resin cast in vacuum.     Fire resistance property in accordance with UL94-V0.     Dielectric strength: 3500V/1min.     Work frequency: 50 ~ 60Hz.     No-load current <=20mA, no-load loss <=0.5 watt.     Insulation grade: grade B.     Temperature rise: <= 22C. Specification: http://www.audiowind.com/pdf/D-1005.pdf Note: 1, No paper specifications,  please download the PDF specification. 2, Has been assembled and electrical test passed. 3, The item is DIN rail mount version, with DIN rail carrier, but not include metal rail.
