One Channel Ssr (solid State Relay) Module Board, Ac100~240v/2a.

US $230

  • Hong Kong, Hong Kong
  • Jan 29th

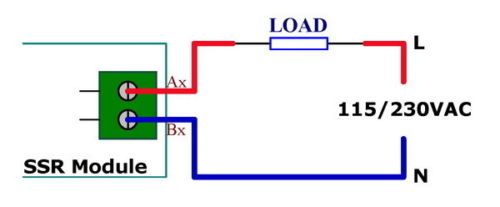

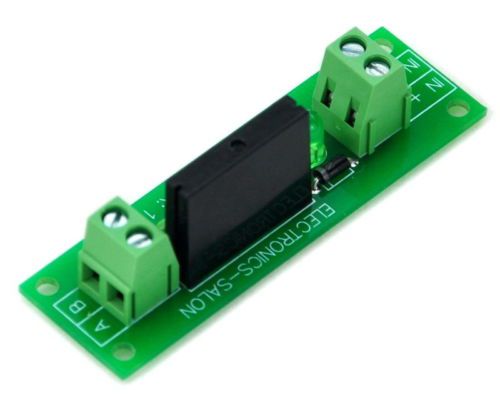

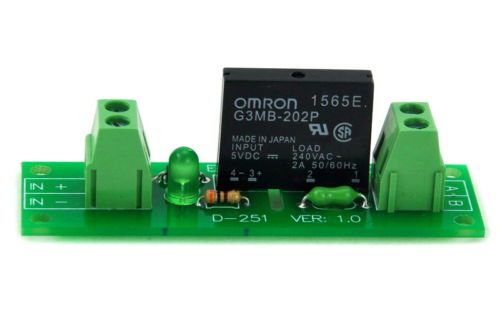

Description One Channel SSR (Solid State Relay) Module Board. This item has been assembled, and electrical test passed. OMRON G3MB-202P 5V solid state relay. LED indicator for each relay. High quality FR-4 fiber glass PCB. Size: 22 x 72.5mm / 0.866" x 2.854". SSR Action:                Voltage: 5VDC.                Current: 20mA. SSR Output:                Load voltage range: 75 to 264VAC (50/60Hz).                Load current: 0.1 to 2A. SSR Spec.:               Part number: OMRON G3MB-202P, 5V version.               Isolation: Phototriac.               Zero cross: Yes.               Rated output load: 2A at 100 to 240VAC (50/60Hz).               Load type: General purpose.               Datasheet:  http://www.audiowind.com/pdf/g3mb-ssr-datasheet.pdf Terminal block specifications:               Wire range: 24 ~ 12 AWG.               Strip length: 7mm.               Screws - M2.5, steel, Cr3+ Zn plated.               Pin header and Cage - Brass. This is a very simple module, no paper specifications, any questions please feel free to contact me. Schematic Output Load Wiring Diagram Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items. Engineered for professional eBay sellers!
