Newport Long Travel Steel Linear Stage, 100mm, Microstep, 1.0 µm, M6, M-mtm100p1

US $3,675.00

  • Saint Paul, Minnesota, United States
  • Jan 29th

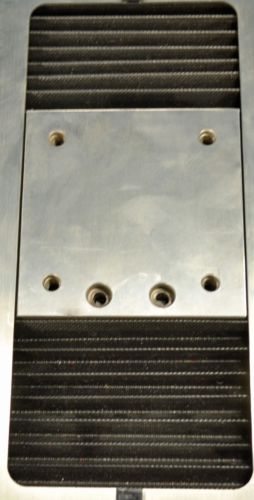

Long Travel Steel Linear Stage  w/ bottom mounting bracket 100 mm Microstep 1.0 µm 1/4 20 The M-MTM100PP1 Linear Stage features an all-steel construction and combines high stiffness and thermal stability with a low profile design. This Micro-step drive version has 100 mm of travel and 1.0 µm resolution. M-MTM stages are metric and can bear up to 100 kg with an exceptional high axial load capacity up to 200 N. For durable, linear motion, opposing single-row bearing surfaces are precision-ground from tool steel. Smooth motion is provided by a diamond-corrected lead screw and a matched, precision-lapped nut. The nut design includes anti-backlash preloading and a sophisticated decoupling system that prevents lead screw eccentricity errors from affecting stage movement. All MTM stages include a center home position switch, supplemented by an index pulse signal from the encoder for precise origin location. The home position may also be set to either end of the stage’s travel via an external switch on the stage body. Model       - MTM100PP1 Travel Range - 100 mm Load Capacity - 1000 N Minimum Incremental Motion, Linear - 1 µm On-Axis Accuracy - 5 or ± 2.5 µm Bi-directional Repeatability - 3 or ± 1.5 µm Uni-directional Repeatability, Guaranteed - 1.5 µm Maximum Speed - 20 mm/s Pitch - 40 or ± 20 µrad Yaw - 35 or ± 17.5 µrad Normal Load Capacity (Cz) - 1000 N Axial Load Capacity (+Cx) - 150 N Axial Load Capacity, Inverse (-Cx) - 50 N Drive Screw Pitch - 4 mm Origin - Centered, can be set to left or right travel limit via external switch Motor - UE63PP Drive Mechanism - Backlash-compensated leadscrew Motor/Encoder Type - Stepper motor, micro-step, 1µm res Limit Switches - Mechanical Thread Type - M6 Weight - 15.5 kg ( 34.2 lb) TERMS OF SALE $26 shipping to the Continental US $72 shipping cost to HI, PR, AK, and Canada  PayPal usually ships within 24 hours Thank you for your interest Please email me with any questions, comments, or concerns
Condition Used :
An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes Little to no wear.
