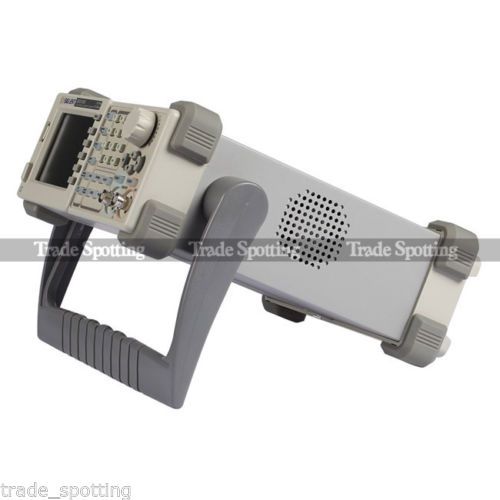

New Siglent SDG1025 Signal Generator Function/Arbitrary Waveform Generator 25MHz, US $359.99 – Picture 0

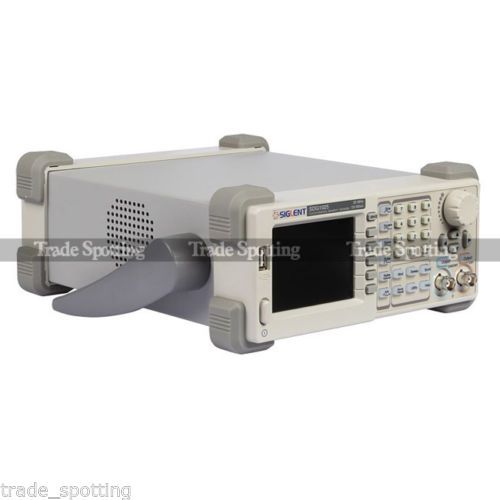

New Siglent SDG1025 Signal Generator Function/Arbitrary Waveform Generator 25MHz, US $359.99 – Picture 1

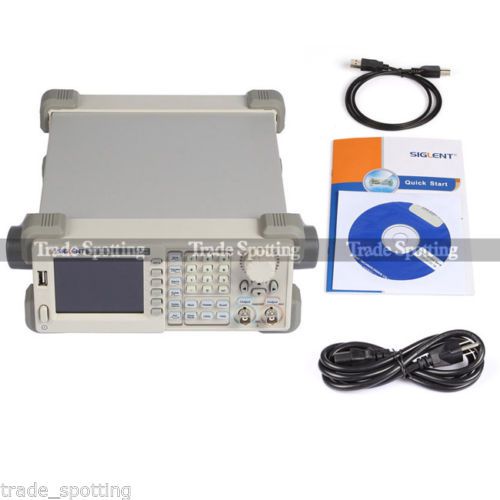

New Siglent SDG1025 Signal Generator Function/Arbitrary Waveform Generator 25MHz, US $359.99 – Picture 2

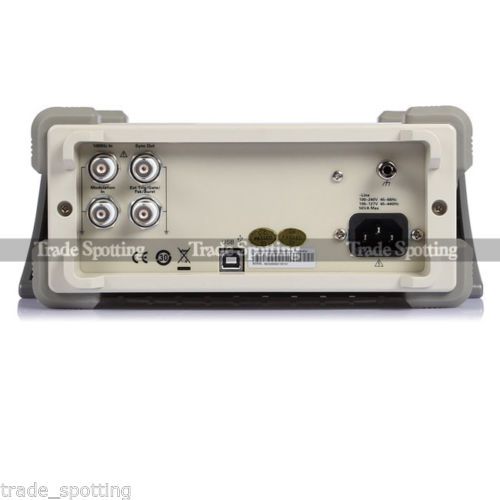

New Siglent SDG1025 Signal Generator Function/Arbitrary Waveform Generator 25MHz, US $359.99 – Picture 3

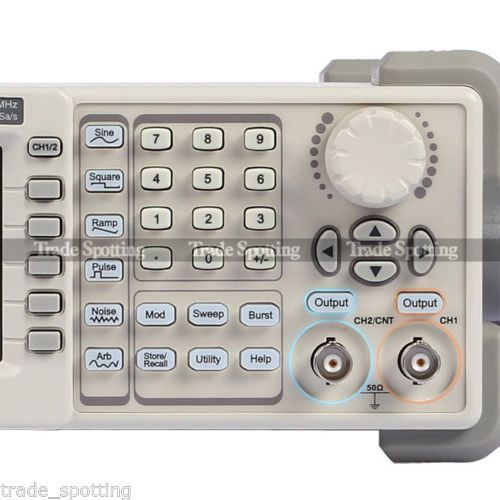

New Siglent SDG1025 Signal Generator Function/Arbitrary Waveform Generator 25MHz, US $359.99 – Picture 4

New Siglent SDG1025 Signal Generator Function/Arbitrary Waveform Generator 25MHz, US $359.99 – Picture 5

New Siglent Sdg1025 Signal Generator Function/arbitrary Waveform Generator 25mhz

US $359.99

Canton, China
Jan 29th

Open on mobile:
QR code

Overview SDG1000 Series Function/Arbitrary Waveform Generator has a clear and simple front-panel. The user-friendly panel layout and instructions, versatile terminals, direct graph interface, built-in instructions and help system have greatly simplified the operation process, with the help of which, users do not have to spend a great deal of time learning and familiarizing the operation of the generator before they can use it proficiently. The built-in AM, FM, PM, ASK, and FSK modulation functions generate modulated waveforms at ease, without the help of a separate modulating source. USB I/O is a standard accessory, while LAN and GPIB are optional. Remote instructions meet the SCPI specification requirements. Apply DDS technology, double output, adjustable phase, the highest output frequency is 20MHz. 125MSa/s sample rate, 14bit vertical resolution, 16Kpts wave length. Output 5 types of standard waveform, internally installed 48 types of waveform; Internally installed high precision, wide frequency counter, frequency is up to 200MHz. Abundant modulation function, sweep-frequency output, pulse train output. Standard collocation connection: USB Device, USB Host, support U Disk storage and software upgrading; GPIB and LAN port are optional. Can connect to SDS1000 series digital oscilloscope perfectly, and support remote command control. Model SDG1010 SDG1020 SDG1025 SDG1050 highest frequency output 10MHz 20MHz 25MHz 50MHz output channels 2 sample rate 125 MSa/s wave length 16 Kpts (channel one can choose 512Kpts) frequency resolution 1uHz vertical resolution 14 Bit waveform Sine wave, square wave , triangular wave , pulse wave ,white noise,48 types of function waveform Sine wave 1uHz ~ 10MHz 1uHz ~ 20MHz 1uHz ~ 25MHz 1uHz ~ 50MHz square wave 1uHz ~ 10MHz 1uHz ~ 20MHz 1uHz ~ 25MHz 1uHz ~ 25MHz pulse 1uHz ~ 10MHz 1uHz ~ 10MHz 1uHz ~ 10MHz 1uHz ~ 10MHz Ramp 1uHz ~ 300KHz 1uHz ~ 300KHz 1uHz ~ 300KHz 1uHz ~ 300KHz Gaussian white noise 10MHz bandwidth(-3dB) 20MHz bandwidth(-3dB) 25MHz bandwidth(-3dB) 50MHz bandwidth(-3dB) wave 1uHz ~ 10MHz 1uHz ~ 10MHz 1uHz ~ 10MHz 1uHz ~ 10MHz modulation function AM,FM,PM,ASK,FSK,PWM etc. other functions Frequency counter:frequency is up to200MHz Standard configuration USB Host & Device Optional port GPIB(IEEE-488),LAN product classify function/waveform generator size widthXheightXdepth=229mmX105mmX281mm —————————————————————————————————————————————————————— Since four years ago,we step in to test and measurement equipment field,our first product is DSO201 mini handheld oscilloscope. Though 4 yours' efforts, we gradually grows to be the biggest distributor of Owon, Siglent, Rigol, Hantek, Atten,which own more than 95% market share of the test and measurement equipment in the worldwide We guarantee that we import the products for those top manufacturers directly,and have our own technical team to supply you sales and technical support. We have 2 warehouses in China,5 in North America, 8 in European Union.we devote ourselves to help you to solve the customs.We provide Expedited shipping Which via DHL,UPS,Fedex or EMS from China , It just takes 3-5 Biz days to North America,4-7 Biz days to Europe. We have served for more than 100 countries/districts. You could contact us via ebay message for the inquiry. Most of the manufacturers upon provide 3 years warranty. We accept products return back or exchange.If you are not satisfied of the products,please return it within 60 days for an exchange or money back. 1,The oscilloscope cannot start? First, check the power cord and power strip, check the power switch to make sure it is open (SDS1000CFL series has a power switch and a power protection switch). To judge whether the machine is powered on through checking fan’s working status, if the fan works, the machine is powered on. If everything is normal but the oscilloscope still cannot start, please contact the after sale service. 2,The screen does not appear waveform during the signal acquisition? 1) Check the connection of the probes and signals. 2) Check the connection of the signal cable and BNC. 3) Check the connection of the probes and objects. 4) Check whether the object generates signals 5) Repeat the acquisition 6) Check the trigger status 3,Waveform is appeared but not stable 1) Check the trigger source channel panel is consistent with the actual signal path. 2) Manually adjust the LEVEL trigger knob to see whether the waveform is stable. 3) Use AUTO to adjust the waveform automatically to see whether the waveform is stable 4) Adjust time base, rule out false-wave interference 4,Amplitude is not exactly 1) Check the unit of source amplitude, the default unit is Vpp of aumo measurement which means difference between the highest and lowest value, the effective value. For example, commercial power we say is 220Vrms but the Vpp is over 600V 2) Oscilloscope is not an accurate measurement tool, according to chip digit the vertical axis will have quantization error. 5,Distortion is big when check high frenquency signal 1) Distortion is bigger when measuring signal near toplimit of oscilloscope bandwidth. Usually bandwidth should be greater than or equal to five times bandwidth of measuring signal, at that time the distortion will be very small. 2) Wrong probe will lead to distored waveform. At first bandwidth of probe should be greater than signal bandwidth, it would be best if it is greater than or euqal five times. And then, if probe is divided into 1X and 10X, 1X is usually 6MHz-10MHz, 10X is the maximum bandwidth of probe. 6,Waveform is interfered when measuring small signal 1) Siglent SDS1000 series can measure mV signal. It will turn on bandwidth limitation function at 2mV/div and filter high frequency clutter. 2) Contact clip to reference earth of signal which can reduce the distortion because of electric difference between oscilloscope and measuring signal. Shipping Payment Return Feedback Communication 1.Item will be shipped within 1-2 working days after full payment is cleared. Tracking number will be sent to all customers upon package shipment. 2.Delivery time is different in accordance to shipping address and shipping methods. -Economy shipping from China: about 20-30 biz days. -ePacket delivery (EUB) from China to US: about 10-15 biz days. -Expedited shipping from China takes about 3-5 biz days via DHL/UPS and 9-15 biz days via EMS. -Standard shipping (Royal Mail Tracked) from UK warehouse to local customers: about 3-5 biz days. -Standard shipping from US warehouse: about 3-7 biz days. -Expedited shipping from US warehouse: about 3-5 biz days. 3.Delivery time depends on destination,logistics mode and other factors. If you have not received your shipment within 30 days from payment, please feel free to contact us. We will track the shipment and get back to you as soon as possible with a reply. Customer`s satisfaction is our goal. 1. We accept payment via PAYPAL ONLY which provides full-scale buyer protection policy up to $500. We only ship to confirmed PAYPAL addresses.Please makesure payment address in PayPal is correct. 2. All major credit cards are accepted through our secure payment processor PayPal. 3. Payment must be received within 7 business days of auction closing. 1.60 days money back return policy. If you are not satisfied when you?receive your item, please return it within 60 days for a replacement or money back. Please contact us for return address before you send it back. 2. If item defective, in 3 months we will send you a replacement without extra charge, or offer refund upon faulty received. after 3 months you are still welcomed to send it back to us for exchange. Buyer may responsible for all return shipping costs. 3.In case you receive wrong products due to shipping error, please contact us for exchange or refund. If it's damaged , please refuse to accept and contact us as soon as possible. Please email us before leaving any negative feedback or open any dispute on PayPal. We care about our valued customers, and will always try to help you. So if you have any problems, please e-mail us immediately. We try our best to reply to your emails as soon as possible. If you do not receive any reply from us, please check your email ensuring your mailbox has not reached full size. You can contact us by Ebay messages.

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

Brand

Siglent
