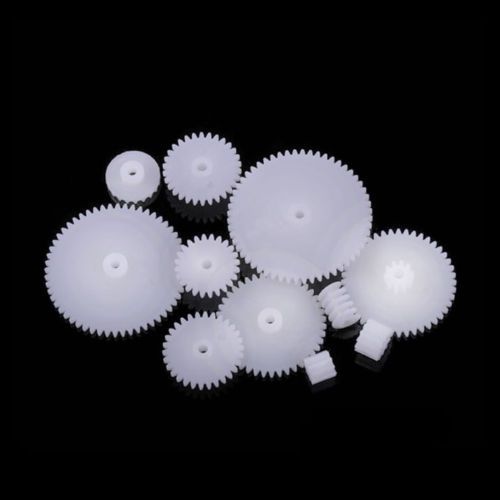

????? NEW Gears 11 Styles Plastic Gears All The Module 0.5 Robot Part for DIY OUR there are the following two sets (49 / 58) Description: Recognizing Code: Such as double-gear 2610-2B is the outer 26 teeth, within 10 teeth, aperture 2mm tight fit A tight with small 0.05mm aperture than standard B said loose with than the standard aperture 0.05mm Calculate the gear diameter: (Number of teeth +2) * modulus = gear diameter Gear modulus of the package: 0.5 Aperture: 1.5, 2, 2.5,3 Modulus: 0.5 Aperture 1.5, 2,2.5,3 9-2A 12-2A C20-2A 6*8?diameter 6mm,length8mm) 422A 30-2A 56-2A 5610-2A 3010-2B 2410-2B 4410-2B Gear basic knowledge Tooth Referred to as teeth, the gear for engaging the convex portion, the convex portion is generally radially arranged paired gear tooth to contact each other, can constant engagement running gear; Alveolar The space between two adjacent teeth on the gear; face is a cylindrical gear or cylindrical worm, perpendicular to the plane of the axis of the gear or worm Normal plane Refers to a plane perpendicular to the tooth line Addendum circle Where the tooth top round Dedendum circle Refers to the bottom of the channel where the circle Base circle The formation of the occurrence of involute line for pure rolling circle Pitch circle Is calculated at the end face of the reference circle of the gear geometry. Each of the tooth (teeth) ? ? gear for engaging the raised portion. Generally, these convex portions are arranged radially. Paired gear tooth contact with each other, resulting in constant engagement operation of the gear. Alveolar the ? ? gear on the space between two adjacent teeth. Gear End face ? ? the cylindrical gear or cylindrical worm perpendicular to the plane of the axis of the gear or worm. Law face ? ? gear, the normal plane is perpendicular to the plane of the tooth line. Addendum circle ? ? teeth located at the top of the circle. Root circle ? ? circle where the bottom of the groove. Form involute base circle ? ? occurred lines on pure rolling circle. The pitch circle ? ? calculate the reference circle of the gear geometry to the face-to-face, in a the dividing circle on modulus and pressure angle spur gear are standard values. Tooth surface ? ? teeth of the side surface located between the cylindrical surface of the cylindrical surface of the addendum and the dedendum. Tooth profile ? ? tooth surface by a specified surfaces (cylindrical gear plane) cut cut line. Dentate line ? ? tooth surface with a dividing line of intersection of the cylindrical surface. The end face of the pitch pt ? ? two adjacent ipsilateral long end face sub-degree arc tooth profile. The modulus m ? ? pitch divided by pi ? supplier, measured in millimeters. Diametral pitch p ? ? modulus of reciprocal, the inches. Tooth thickness s ---- in the end face of a tooth on both sides of the length of the sub-degree arc tooth profile. Slot width e ? ? alveolar in the end face of a sub-degree arc length between both sides of the tooth profile. Addendum h? ? ? radial distance between the tip circle of the pitch circle. Tooth root high Hf the ? ? indexing the radial distance between the circle and root circle. Total depth h ? ? addendum circle and dedendum circle between the radial distance. Tooth width b - tooth along the axial dimensions. Face pressure angle ?t ? ? acute angle over-end round tooth profile and indexing the radial line through the point of intersection of the tangent of the folder tooth profile. Standard Rack: only the size of the base circle, tooth, the whole tooth height, crown height and tooth thickness dimensions are in line with the standard specifications of the rack gear, cutting out the rack according to their standard gear specifications called benchmark rack. The reference pitch circle (Standard Pitch Circle): used to determine the various dimensions of the reference circle of the gear. Modulus is the number of teeth x Standard Pitch Line: rack on a particular section of line or tooth thickness measured along this line, half of the pitch. Action Pitch Circle: occlusal role of a spur gear, each with a tangent rolling circle. Standard Pitch: benchmark, with the benchmark rack pitch equal to the selected standard pitch. Pitch Circle: two gears with heart online occlusal contact points of each gear, left the track called the pitch circle. Pitch Diameter: pitch circle diameter. Working Depth: a spur gear tooth crown height., Also known as tooth height. Addendum: the addendum circle of the pitch circle radius. Backlash: two teeth bite, the tooth surface and tooth surface gap. Clearance: two teeth bite, the gap between a gear addendum circle with another gear bottom. Pitch Point: a pair of gears with pitch circle tangent point. itch: two adjacent interdental corresponding point arc distance. Normal Pitch: involute gear along a particular cross section measured by the same vertical pitch. Package: NEW Gears 11 Styles Plastic Gears All The Module 0.5 Robot Part for DIY Shipping: Orders will be shipped via airmail, air parcel or other services depending on situations. We ship the package within 1- 2 business days after the payment received. In most cases, international shipping takes around 13-24 business days . The shipment usually need 10-15 business days to United States/Unied Kingdom/Australia . The shipment usually need 4-6 weeks to Brazil / South America/France / Spain / Germany / Eastern Europe We try our best to provide you the most reliable of shipping service. But sometimes international delivery is highly depended on the local customs and post service.If you do not receive your item on time, please contact us immediately for further assistance. We will be responsible for any damages or losses incurred in the shipping process. (If you like a item sent by registered mail with the tracking number, you can extra pay (Please contact us ) . Shipping Rate(item arrived) Zone 7-12days 12-15days 15-21days 21-25days >45days United States 25% 50% 18% 7% Refund or Resend united kingdom Australia Canada 15% 46% 29% 10% Germany 11% 29% 39% 21% France Spain Brazil Italy 8% 35% 25% 32% South America 6% 15% 27% 52% other countries 4% 10% 15% 71% Payment: We only accept payment through Paypal. Use your PayPal account immediately the payment the seller can receive payment immediately, safe and convenient! PayPal also provides buyers to improve security. We ship to Paypal shipping address ONLY. When you pay from paypal, please check your shipping address at paypal, if the address is not correct, please make the alternation before you send payment. The incomplete address will cause the mail lost and it is your responsibility to make them correct. Contact us: We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you, Please do not leave Negative / Neutral Feedback or low Star Ratings without contacting us first with any issue. however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. We try our best to reply to your emails as soon as possible We aim to provide the best service and products!! Please leave a chance for us to communicate with you in case there is any problem. Any question,please contact us Please allow 24 business hours for us to response ,Thank you very much. Return policies: Return policy may differ for international buyers,If you would like to return your product for replacement, refund or repair, please Contact seller for more details. Learn more? Feedback: Engineered for professional eBay sellers!
