New 12864 Lcd Transistor Tester Diode Triode Capacitance Esr Meter Mos/pnp/npn

US $23.46

hong kong, Hong Kong
Jan 29th

Open on mobile:
QR code

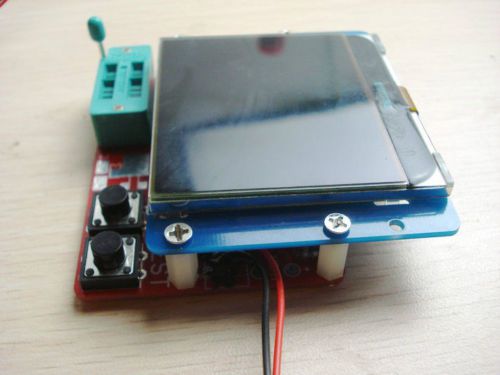

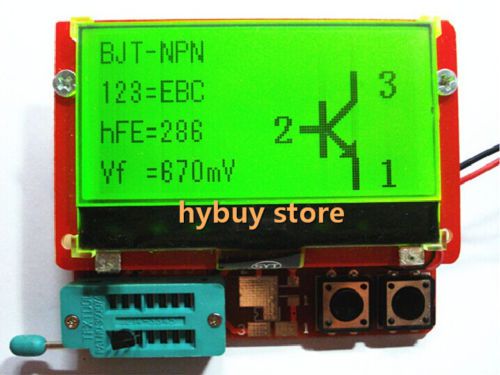

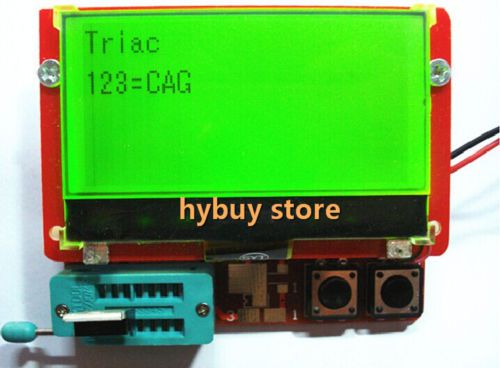

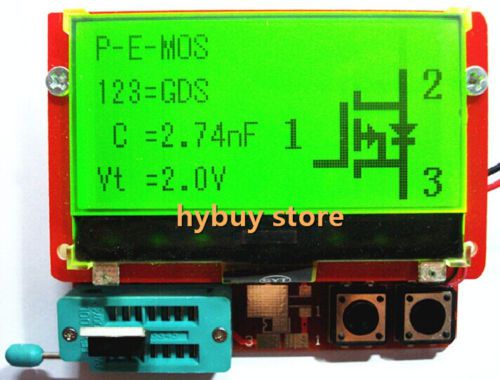

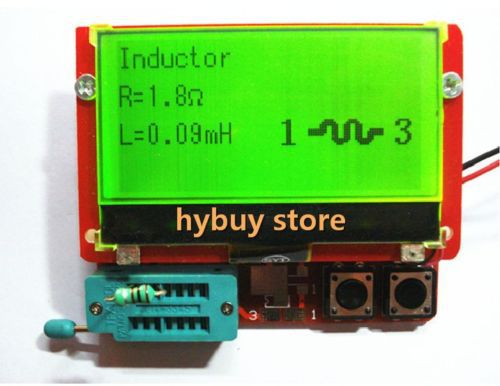

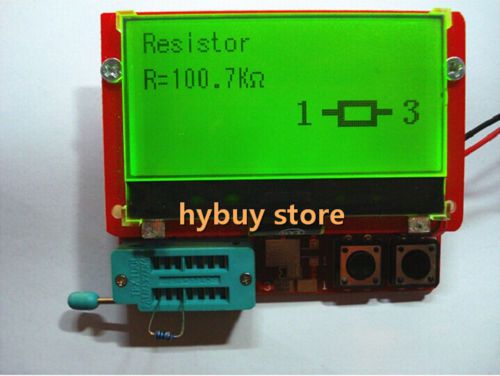

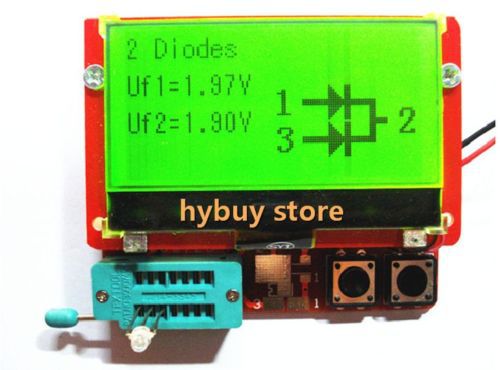

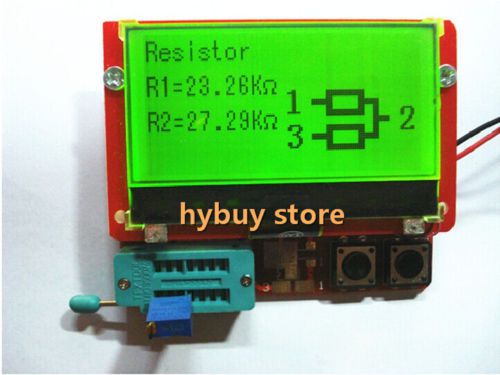

Welcome Description Component Tester Transistor Diode Capacitance ESR Meter Mosfet NPN PNP Inductance The new version has come out 2014/11/01. If later than 2014/11/22, we will send the the new version. Packing list: 1 X Component tester Not include battery(the airmail ban it). Shows as picture. The portable version has come out, if you need, pls click the link, Portable Digital Component meter 2014 New Version, Big Screen, better function Description: 1,2013 latest M328 version of the software ,more functions. 2,Use 8MHz external crystal , better measurement accuracy. 3.Backlight LCD display,only 2mA when stand by. 4,Using 9V battery (Not inlcuded) Need open sheel then install battery NEW Function: 1:Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components 2: Automatic test the pin of a component, and display on the LCD 3:Can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage 4: Measure the gate and gate capacitance of the MOSFET threshold voltage 5:Use 12864 liquid crystal display with yellow backlight Size:140*90*55MM Specifications: For you reference 1,One -button operation, automatic shutdown . 2,Only 20nA shutdown current. 3,Automatically detect NPN, PNP bipolar transistors , N -channel and P -channel MOS FET, JFET , diodes , two diodes, thyristors small power unidirectional and bidirectional thyristor. 4,Automatic identification components pin arrangement . 5,Measuring bipolar transistor current amplification factor and base - emitter threshold voltage. 6,Via the base - emitter threshold voltage and high current amplification factor to identify Darlington transistors. 7,Can detect bipolar transistors and MOS transistors protection diodes. 8,Measuring the gate MOS FET threshold voltage and the gate capacitance. 9,Can simultaneously measure two resistors and resistor symbol is displayed. Displayed on the right with a decimal value of 4 . Resistance symbol on both sides shows the pin number. So you can measure the potentiometer. If the potentiometer wiper is not transferred to an extreme position , we can distinguish the middle and both ends of the pin. 10,Resistance measurement resolution is 0.1 ohms , 50M ohms can be measured . 11,Can measure capacitanceCan measure capacitance of 30pF-100mF , resolution 1pF. 12.2uF more capacitors can simultaneously measure the equivalent series resistance ESR values. The two can be displayed with a decimal value , resolution 0.01 ohms. 13,Can be in the correct order and the diode symbol display two diodes , and gives the diode forward voltage. 14.LED is detected as a diode forward voltage higher . Combo of the LED is identified as two diodes. 15,Eeverse breakdown voltage is less than 4.5V Zener diode can be identified. 16,Can measure a single diode reverse capacitance. If the bipolar transistor connected to the base and collector or emitter of a pin , it can measure the collector or emitter junction reverse capacitance . 18 can be obtained with a single measurement rectifier bridge connection. Notice: Before measuring capacitance , the capacitor must be discharged , otherwise very likely damage the meter . Shipping We ship to worldwide. Orders processed within 24-48 hours of payment verification. We only ship to confirmed Paypal addresses. Your Paypal address MUST MATCH your Shipping address. Items will be marked in low value. Items are shipped via China Post & Hong Kong Post & Swiss Post Air Mail. If you want other shipping way(Express), Pls contact us. Country Shipping Way Shipping Time Tracking Number United States USPS(ePacket) 7-12 Yes Russian Federation China Post 15-35 Yes Other Country HK /Swiss Post Air Mail 15-35 No Contact us We strive to provide you with the best service, We will reply your question within 24 hours. Our goal is customer satisfaction! Our Working-time From 8:30 AM to 21:30 PM(GMT+08). Warranty and Guarantee Good Good quality. Buy with confidence! If you are not satisfied when you receive your item, please return it within 7 days for a replacement or money back. Please contact me before you return it. Full refund after we receive our original item, Note: Return shipping is to be paid by the Buyer. We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns. Payment We accept Paypal only, It is fast, Easy and Safe. Payment must be completed within 7 days. PLEASE NOTE: S&H DOES NOT INCLUDE DUTIES, LOCATL TAXES OR ANY OTHER IMPORTATION FEES. Please list your special requests (color, packages, etc.) in the PAYPAL NOTES SECTION when you make payment. About me Welcome to hylbuy store! We provide many kinds electronic products and other products, such as 3D printer parts, mobile phone and tablet and laptop accessory, test equipment, pump and motor, control and convert module, music and Hi-Fi, CNC parts, DIY kits and so on. We strive for provides good product and better service. We also provide bulk price for our customers. Thanks for your support and purchase. Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	M328
Multi-meter	Transistor Tester Diode Triode Capacitance ESR
Country/Region of Manufacture	China
