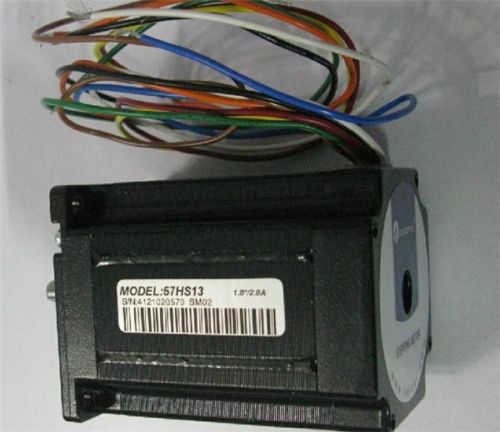

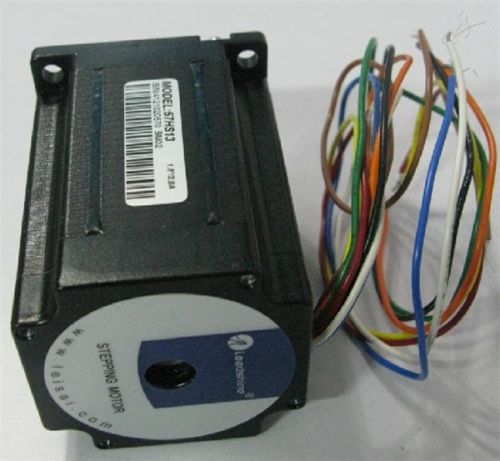

Nema 23 Leadshine 2-phase Hybrid Step Motor 57hs13 1.3nm 1.8 Degree Original New

US $86.00

  • shenzhen,Guangdong, China
  • Jan 29th
57HS13 Leadshine 2 phase stepper motor 57HS 1.3NM 1.8 degree Unipolar 2.8A New   57HS13  Features: *2-phase hybrid step motor *High torque design *Standard NEMA 23 dimensions *Series or parallel and unipolar wiring *Optimized for microstepping Specifications: General Step Angle 1.8° Step Angle Accuracy +5%(full step, no load) Temperature Rise 80°CMax Ambient Temperature -10°C -- +50°C Insulation Resistance 100M?min.500VDC Dielectric Strength 500VAC for one minute Shaft Radial Play 0.06 Max.(450g-load) Shaft Axial Play 0.08 max.(450g-load) Number of Leads 8 Electric     Model Number Connection Holding Torque Oz-in (Nm) Phase Current (Amps) Phase Resistance (Ohm) Phase Inductance (mH) Rotor Inertia Oz-in-sec2 (g.cm2)   57HS13 (Bipolar) Parallel 254.88(1.8) 4.0 0.5±10% 2.1±20% 0.006532(460) (Bipolar) Series 254.88(1.8) 2.0 2.0±10% 8.4±20% Unipolar 184.08(1.3) 2.8 1.0±10% 2.1±20% Matching drives: Model Match drives 57HS04 EM503/EM705/DM556 57HS09 57HS13 57HS22 Applications: Suitable for all kinds of small automation equipment and instruments, such as: pneumatic marking machine, marking machine, cutting machine, laser marking machine, plotter, small engraving machine, CNC machine tools, handling equipment, etc. The efficiency is very high for the users who expect low vibration, little noise, high precision and high speed small equipments. Stepper sets available in FASTTOBUY: M542 + 57HS09 Leadshine 2-phase Stepper Set (Drive + Motor) M542 + 57HS09 0.9N.m New M542 + 57HS13 Leadshine 2-phase Stepper Set (Drive + Motor) M542 + 57HS13 6.35N.m New M542 + 57HS22 Leadshine 2-phase Stepper Set (Drive + Motor) M542 + 57HS22 2.2N.m New   Matching drives: Model Match drives 86HS35 EM705/EM806/DM870/DM1182 86HS45 86HS85 EM705/EM806/DM870/DM1182/ DM2282 Applications: Suitable for all kinds of small automation equipment and instruments, such as: pneumatic marking machine, marking machine, cutting machine, laser marking machine, plotter, small engraving machine, CNC machine tools, handling equipment, etc. The efficiency is very high for the users who expect low vibration, little noise, high precision and high speed small equipments. Contact information: Fast To Buy Ltd 1207, International E-Commerce Industrial Park of FuTian, Shangmeilin, Futian district, Shenzhen, 518049, CN Phone: +0086 13724354369  or +0086 755 82546545 email: ebay@fasttobuy.com   skype: ebayfasttobuy our working time: EST 9:00AM ~ 6:00 PM Shipment: Once payment received. Item will be shipped out within 1-3 working days by DHL, Fedex, UPS, EMS ASAP. Usually it takes 3-7 working days to most of the country. You will be notified the traking number once shipped out.  Kindly please note the Tax fee and Customs clearance fee are not included in the item’s listing price.  Kindly please feel free to contact us before shipping if there’s any thing we can do for you. Warranty: Fast To Buy Ltd make sure the item is brand new with original package and offer 1 year warranty for the quality. Return policy: We accept return or refund within 14 days for the quality reason, not man-made reason.  Kindly please contact us before returning the package. Payment will be refunded to you within 24hrs once the package received by us.  You understanding appreciate. Kindly note: Pls check and confirm the part NO. and your application before place order, any further assistance please feel free to let us know.  Company picture:
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand Leadshine
MPN 57HS13
Model 57HS13
