National Instruments 6008 Daq

US $149.00

Tucson, Arizona, United States
Jan 29th

Open on mobile:
QR code

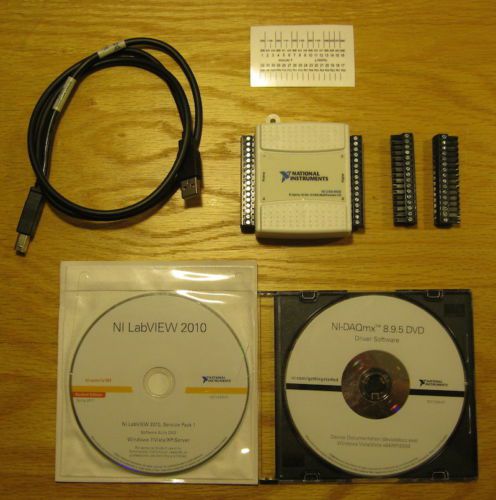

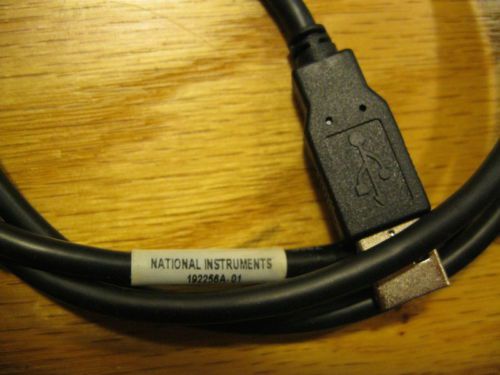

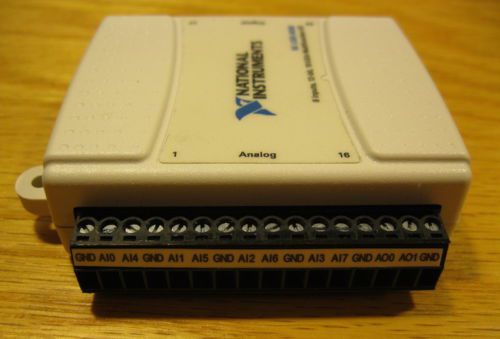

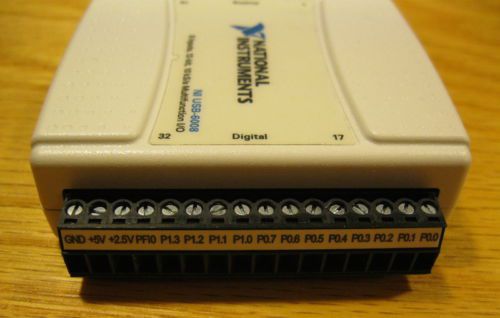

I bought this unit new a few years ago. It’s been kept in an air-conditioned, smoke free environment out of direct sun and no exposure to outside elements. It’s worked exactly as intended. This is a great way to learn LabVIEW, if you don't it already. It has 8 analog inputs (0 to 10V), 2 analog outputs (0 to 5V), 8 digital I/O (5V), and a counter (32bit resolution). National Instruments does a great job of showing how to use this. There a ton of videos of on Youtube that explanation how to program it. There are no issues with this device and it performs very well. Please feel free to contact me with any questions. Included items in this auction: National Instruments 6008 DAQ Original National Instruments USB cable Four terminal strips, two on the DAQ and two spares Label sheet for spare terminals NI-DAQmx 8.9.5 driver software LabVIEW 2010 Student Edition for Windows 7/Vista/XP/Server Detailed Specifications, as taken from National Instruments website (The following specifications are typical at 25 °C, unless otherwise noted.) Analog Input Converter type: Successive approximation Analog inputs: 8 single-ended, 4 differential, software selectable Input resolution: 12 bits differential, 11 bits single-ended Max sampling rate (aggregate): 10 kS/s AI FIFO: 512 bytes Timing resolution: 41.67 ns (24 MHz timebase) Timing accuracy: 100 ppm of actual sample rate Input Range, Single-ended: ±10 V Input Range, Differential: ±20 V , ±10 V, ±5 V, ±4 V, ±2.5 V, ±2 V, ±1.25 V, ±1 V 2 Working voltage: ±10 V Input impedance: 144 k? Overvoltage protection: ±35 Trigger source: Software or external digital trigger System noise, Single-ended, ±10 V range: 5 mVrms System noise, Differential, ± 20 V range: 5 mVrms System noise, Differential, ±1 V range: 0.5 mVrms Absolute accuracy at full scale, single-ended Range Typical at 25 °C (mV) Maximum over Temperature (mV) ±10 14.7 138 Absolute accuracy at full scale, differential Range Typical at 25 °C (mV) Maximum over Temperature (mV) ±20 14.7 138 ±10 7.73 84.8 ±5 4.28 58.4 ±4 3.59 53.1 ±2.5 2.56 45.1 ±2 2.21 42.5 ±1.25 1.70 38.9 ±1 1.53 37.5 Analog Output Analog outputs: 2 Output resolution: 12 bits Maximum update rate: 150 Hz, software-timed Output range 0 to +5V Output impedance 50 ? Output current drive 5 mA Power-on state 0 V Slew rate 1 V/?s Short circuit current 50 mA Absolute accuracy (no load) 7 mV typical, 36.4 mV maximum at full scale Digital I/O Digital I/O, P0.<0..7> 8 lines Digital I/O, P1.<0..3> 4 lines Direction control Each channel individually programmable as input or output Output driver type Open collector (open-drain) Compatibility TTL, LVTTL, CMOS Absolute maximum voltage range –0.5 to 5.8 V with respect to GND Pull-up resistor 4.7 k? to 5 V Power-on state Input Digital Logic Levels Level Min Max Units Input low voltage -0.3 0.8 V Input high voltage 2.0 5.8 V Input leakage current — 50 ?A Output low voltage (I = 8.5 mA) — 0.8 V Output high voltage Active drive (push-pull), I = –8.5 mA 2.0 3.5 V Open collector (open-drain), I = –0.6 mA, nominal 2.0 5.0 V Open collector (open-drain), I = –8.5 mA, with external pull-up resistor 2.0 — V External Voltage +5 V output (200 mA maximum) +5 V typical, +4.85 V minimum +2.5 V output (1 mA maximum) +2.5 V typical +2.5 V accuracy 0.25% max Reference temperature drift 50 ppm/°C max Counter Number of counters 1 Resolution 32 bits Counter measurements Edge counting (falling-edge) Counter direction Count up Pull-up resistor 4.7 k? to 5 V Maximum input frequency 5 MHz Minimum high pulse width 100 ns Minimum low pulse width 100 ns Input high voltage 2.0 V Input low voltage 0.8 V Power Requirements USB, 4.10 to 5.25 VDC 80 mA typical, 500 mA max USB, USB suspend 300 ?A typical, 500 ?A max Physical Characteristics Dimensions, Without connectors 6.35 cm x 8.51 cm x 2.31 cm (2.50 in. x 3.35 in. x 0.91 in.) Dimensions, With connectors 8.18 cm x 8.51 cm x 2.31 cm (3.22 in. x 3.35 in. x 0.91 in.) I/O connectors USB series B receptacle, (2) 16 position terminal block plug headers Weight, with connectors 84 g (3 oz) Weight, without connectors 54 g (1.9 oz) Screw-terminal wiring 16 to 28 AWG Torque for screw terminals 0.22–0.25 N · m (2.0–2.2 lb · in.)

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	National Instruments
Model	6008
