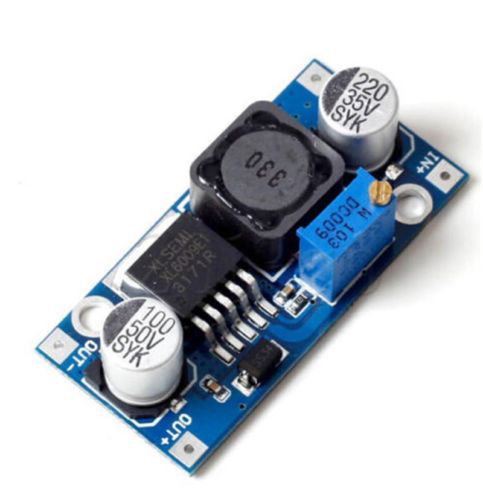

N Dc-dc Boost Buck Adjustable Step Down Up Converter Xl6009 Module Solar Voltage

US $206

  • HK, China
  • Mar 11th
Open on mobile:
QR code
Description Wide input voltage 5V ~ 32V;   Wide Output Voltage 5V ~ 35V ( with automatic buck , scope of work, any voltage inputs can be arbitrarily regulated voltage output ) ;   Built- 4A efficient MOSFET switches enable efficiency up to 94%; (LM2577 current is 3A)   high switching frequency of 400KHz, the ripple is smaller and smaller . (LM2577 frequency only 50KHz) Application:    Car regulator , solar photovoltaic, wind power and other applications of voltage instability . Technical parameters: Model Specification:DSN6000AUD Automatic Buck module Module Properties:Non- isolated boost (BOOST) Rectification:Non- Synchronous Rectification Input Range:3V ~ 32V Output Range:5V ~ 35V Input Current:4A ( max ) , no-load 18mA (5V input , 8V output , no-load is less than 18mA. Higher the voltage , the greater the load current . ) Conversion efficiency:< 94% ( greater the pressure , the lower the efficiency ) Switching frequency:400KHz Output Ripple:50mV ( the higher the voltage , the greater the current , the greater the ripple ) Load Regulation:± 0.5% Voltage Regulation:± 0.5% Operating Temperature:-40 ℃ ~ +85 ℃ Dimensions:48mm * 25mm * 14mm ( L * W * H ) Package Include:1 PCS Preview Engineered for professional eBay sellers!
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand Buytra
Output Ripple 50mV
Model XL6009 Module Solar Voltage
Load Regulation ± 0.5%
Wide input voltage 5V ~ 32V
Voltage Regulation ± 0.5%
Wide Output Voltage 5V ~ 35V
Operating Temperature -40 °C ~ +85 °C
Input Current 4A ( max )
Dimensions 48mm * 25mm * 14mm ( L * W * H )
Switching frequency 400KHz
Package Include 1 PCS
