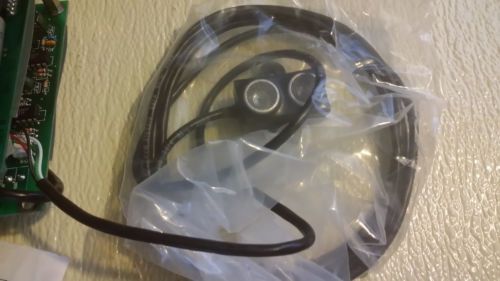

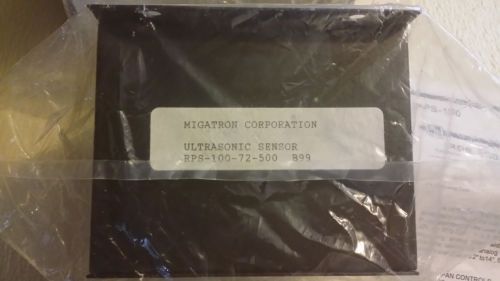

Migatron - Rps-100-72-500 Ultrasonic Sensor With Remote Sensing Head new

US $399.99

Fargo, North Dakota, United States
Jan 29th

Open on mobile:
QR code

RPS-100-72-500 - Migatron RPS-100 Controller with Remote Sensing Head, 5"-72" range, 0-10 VDC and 4-20 mA Analog Output RPS-100-72-500 Retail Price: $867.00 Manufacturer SKU: RPS-100-72-500 Manufacturer ID: F01-9251720 Part Number: RPS-100-72-500 Description RPS-100-72-500 Migatron RPS-100 Controller with Remote Sensing Head, 5"-72" range, 0-10 VDC and 4-20 mA Analog Output Specifications: Various sensing ranges Broad sensing beam Low frequency - 38.5kHz 2-way power operation Small remote transducers Adjustable delay controls 2 multiplexed transducers LED indicator Isolated Form C relay output Small electronic controller The RPS-100 is the first of the RPS series and has a proven track record of reliability. Since its introduction in 1979, the RPS-100 has proven itself in versatility and ease of operation. The remote transducer allows for mounting of the sensor head in cramped spaces while the controller is out of the way. The ranging and proximity modes provide the versatility of simple detection, or actual distance measuring. The isolated form C relay furnishes N.O. and N.C. outputs, and with the addition of the RPS-500 card various analog outputs are supplied. The RPS-100 sensor, which operates at a frequency of 38.5kHz, has a broad sensing beam which allows for detection of an object at greater angles of tilt. Mounting flanges, LED indicator, ranging potentiometer, and 6-ft. transducer cable are included. Optional cable lengths are available. Download the RPS-100-72-500 datasheet in *.pdf format RPS-500 Analog Ranging Card CLICK HERE to download a catalog sheet for this product. Analog Ranging Card 2500 Volts Isolation 1 - 10 VDC Analog Voltage 4 - 20 mA Analog Current Ranges 2"-14", 5"-36", 5"-72",10"-240" Inverting Switch Zero, Span, Sample & Hold Controls 120VAC or 24VDC Power Input The RPS-500 ranging board was designed to give analog voltage and current outputs proportional to distance and can be used with the RPS-100, RPS-300, RPS-325 or RPS-326. It is a fast, accurate means of converting analog pulse width generated by the ultrasonic sensor into analog voltage and current. Ranges available are 2" to14", 5" to 36", 5" to 72", 10" to 240". ZERO & SPAN CONTROLS The RPS-500 analog card comes with a zero and span control. These two potentiometers allow the analog signal to be adjusted over a desired range. The adjustment ratio is 5:1. This means that the RPS-500-14 (range 2" to 14") can be adjusted to give an analog output over a range as small as 2.4" or as large as 12". Example: If you desired a 4mA signal at 4" and a 20mA signal at 14" you would adjust the analog card as follows. Place a target at 4" and adjust the zero control until your current meter reads 4mA. Move the target to 14" and adjust the span control until you reach 20mA. With no more than two adjustments of each potentiometer the desired range will be achieved. If the analog card is in the inverted state, voltage and current decreasing with distance, the zero pot will adjust the 20mA point and the span pot will adjust the 4mA point. Always adjust the close point first. INVERTING ANALOG SIGNALS Both the current and voltage outputs of the analog RPS-500 card can be inverted. In the non-inverted state (switch 1 ON switch 2 ON) the voltage and current increase with distance. In the inverted state ( switch 1 OFF switch 2 OFF) the voltage and current decrease with distance. Note: The inverting switches should be set in the desired positions before beginning adjustments with the zero and span controls. SAMPLE AND HOLD After each return echo the output voltage and current are updated. If no echo is received the previous readings are maintained or held. The time these readings are maintained will depend on the setting of the hold potentiometer, cw (up to 5 seconds). After this time has elapsed, the outputs will go to there maximum readings, indicating that there is no return echo. The advantage of this control is that it allows an echo or echos to be missed for a time without changing the output readings. This has proven to be advantageous in level control where the surface may be agitated. LED DISPLAY This 10 segment LED display will tell when a return echo is in the range of the sensor. For example, when the RPS-500 card is used with the RPS-300-14 and the target is 4 inches away just 1 or 2 LEDs will be on. When the target moves to 9 inches about 1/2 of the display will be on, and when the target is 14" away all the LEDs will be on. ENABLE LINE When the enable line is held high (high = 3 to 30V) the sensors will not transmit and the hold circuit will time out, causing the outputs to go to a maximum reading. A short time (Approximately 4.2mS) after the enable line is pulled low (low = 0 to 1V) the sensors will transmit. When a return echo is received the outputs will be updapted. Specifications: RPS-500 Power Input: 120 VAC or 24 VDC Ambient Temperature: 0?C to 60?C or 32?F to 140?F Output 4 - 20mA: Current sourcing, load 0 to 500 ohms. Reference to "GND OUT" terminal. Output 0 - 10VDC: Load Equal to or Greater than 500 ohms. Reference to "GND OUT" terminal. Up Date Time: 10mS 14" card, 20ms 36" card, 40mS 72" card, 150mS 240" card. ZERO Control: Adjustable SPAN Control: Adjustable 5 : 1 ratio. Switches: 1 ON, 2 ON increase voltage and current with distance. 1 OFF, 2 OFF decrease voltage and current with distance. Output Isolation: 2500V for outputs 0-10 VDC, 4-20MA when powered by 120 VAC. Using the RPS-500: The distance control on the front cover of the control box must be full cw for maximum analog ranges. The supplied cable is used to connect the RPS-500 board to the RPS-100, 300, 325, or 326 Ultrasonic Sensor. This cable has shielding between "XMIT" and "1st DET" which is needed to prevent cross talk. The following wire connections should be made. RPS-100, 300, 325, 326 GND +12VDC XMIT 1st DET. Cable Wire Color BLACK WHITE RED GREEN RPS-500 GNC +12VDC XMIT 1st DET. Figure: A-Wiring Diag. - For RPS-100, 300, 325, 326 B-Wiring Diag. - For RPS-500 PART NUMBER RANGE OUTPUT RPS-500-14 RPS-500-36 RPS-500-72 RPS-500-240 2" - 14" 5" - 36" 5" - 72" 10" - 240" Analog 0 -10 volt, 4 - 20mA, Inverted or non-inverted Analog 0 -10 volt, 4 - 20mA, Inverted or non-inverted Analog 0 -10 volt, 4 - 20mA, Inverted or non-inverted Analog 0 -10 volt, 4 - 20mA, Inverted or non-inverted

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	MIGATRON
Model	RPS-100-72-500
