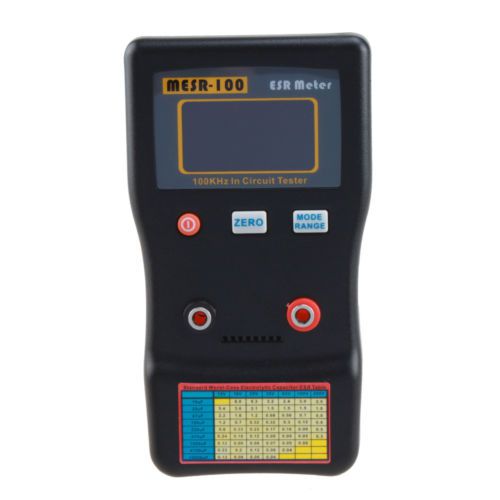

Mesr-100 Autoranging In Circuit Esr Capacitor Low Ohm Meter 0.001 To 100r

US $58.99

GZ Warehouse, China
Jun 9th

Open on mobile:
QR code

Payment Shipping Return Warranty MESR-100 AutoRanging In Circuit ESR Capacitor Low Ohm Meter 0.001 to 100R In Stock: (Running Low - Order Soon) Description Payment Shipping Returns Policy Warranty Features: JINGYAN MESR-100 V2 Auto-ranging capacitor ESR and Low Ohm Meter Measuring range from 0.001 to 100.0R, support IN CIRCUIT Testing. Using true 100 KHz sine wave to measure the ESR value, which is equal to the testing method of capacitor manufacturer. In the market, there is some technique using short pulse method to testing, but the value will be varying vs the capacitance and sometimes reading is different from the manufacturer's value. Dual terminal, for fast and easy inspect general capacitor or resistor, a printed ESR table for fast check Specification: Range Accuracy (After Zero, tested with 1,10,100R resistor) Refresh Time (Manual Mode) *Auto mode take 0 to 2s more time depend on value 0.000 to 1.000R 1%+2Digit ~0.4s 1.000 to 10.00R 1%+1Digit ~0.4s 10.00 to 100.0R 2%+1Digit ~0.4s *Accuracy maybe affected by the test lead’s length and contact point resistance. Standard test leads is 15cm, for longer test leads need special shielding to affect the EMI inference (Can contact sales’ person for more detail) 1) Accuracy: Up to 1% (detail on above table) Wide Measurement Range: >1uF (for 0.1uF the error will be larger on equation 1/(2*pi*F*C) @ 100Khz ) 2) High Resolution: 4 digit, or 0.001Ohm @ 1 Ohm range 3) Measuring voltage: <~40mV RMS (TESTING VOLTAGE) 4) Clamping voltage: ~0.15V (open voltage) 5) Battery 2X AA 1.5V battery (*Batteries NOT INCLUDED IN) 6) External Power: 5V micro USB 7) Operating current 0.02A 8) Battery Life time: >80 Hours Operating Introduction: 1) POWER ON Press and hold the ON/ OFF circle orange button for 2 to 3 second to power on. Press and release the ON/ OFF button to shut down meter. 2) AUTO/ MANUAL mode: i) Auto Range: Press and release the RANGE button and at the first line of LCD will show “AUTO:" At auto mode meter will automatically select the best range to detect. ii) Manual Range: Scroll the manual range from 1R, 10R and 100R range by press and release the RANGE button In LCD will show MANUAL at first LCD line and show at second line: 0-1R, 1-10R and 10-100R. 3) 1 Key Zero: Short circuit the test leads’ terminal, cancelling the wire resistance. Press and release the “ZERO" button, LCD shows “ZERO" and wait the zero disappear. If you are using the meter array socket, you need to use a short pin to short circuit to set zero. 4) Backlight: LCD backlight will on during power on 5) Auto Sleep: Around 10 hours for not testing, it will shut down automatically to save power. 6) OVERFLOW or OL: Display overflow when the value is out of range, you can check that you are zero correctly. 7) ESR TABLE: It is for reference only, different manufacturer of capacitor has different ESR, better to test a good cap ESR and compare with what you are testing, usually bad cap with higher ESR few times larger than good one. 8) SOFTWARE ESR: Put the 25V Electrolytic capacitor value to LCD, and compare, GOOD if C < XXuF, means the capacitor maybe good condition if it is less than XXuF 9) PLASTIC STAND: If you don’t use the stand, press and push the lock position: Package Content: 1 x MESR-100 V2 2 x 15cm test clips (as photo) Estimated Shipping time: TO USA: 15-25 business days (ePacket Delivery from China with tracking number) To Other Countries: 25-50 business days (China Post Air Mail With free tracking number We only accept orders which are approved by paypal (eCheck Payments are shipped after they clear). To ensure that your order gets approved please make sure your orders are done with a verified Paypal account. Payment needs to be received within 7 days of purchase or the transaction may be cancelled and item resold. Orders generally ship within 2 business days from when payment has cleared ( after payment has cleared ). Your tracking number will be emailed to you once shipped. You can find your tracking number by logging into eBay and going to purchase history under My eBay Items are shipped Monday to Friday, We do not ship on weekends or holidays. Before paying please always double check your shipping address, because this cannot be changed once purchase has been made We only ship to paypal address! If you want to ship to other address, please change your paypal address before making a payment. Some items will be shipped from China and usually will arrive in 7-25 business days. The arrival time depends on different areas and some kinds of factors : Country Delivery Time Working Days (not including holiday) 5-7 8-11 12-14 15-19 20-22 >22 Working Days + Saturday + Sunday 5-9 10-15 16-20 21-25 26-30 >31 United States Rate (item arrived) 5 .1% 50.1% 29.6% 10.5% 4.7% Refund United Kingdom Rate (item arrived) 9.9% 63.2% 19.1% 3.4% 4.4% Refund Australia Rate (item arrived) 21.4% 50.0% 14.3% 7.2% 7.1% Refund France Rate (item arrived) 10.5% 28.6% 43.8% 10.1% 7.0% Refund Germany Rate (item arrived) 11.1% 22.2% 30.3% 20.9% 15.5% Refund Canada Rate (item arrived) 0.0% 47.1% 31.4% 17.6% 3.9% Refund Spain Rate (item arrived) 3.5% 25.0% 47.9% 12.9% 10.7% Refund 14-Day Return Policy If you are not satisfied with your purchase, you may return eligible items for an exchange or refund within 14 days after you receive the items, buyer pays return shipping. Return Eligibility Items must be in new condition, meaning unworn with the security tab (if applicable) intact. Conditions which will void your ability to return merchandise includes: Scratching, Breaking, Wearing items, Opening the inside of watch, Removing links, Removing the security tab on high-end items, or lastly, if the auction explicitly says in the description that the item cannot be returned. Return Instructions Before returning any item, you must message us to get a RMA# (Return Number). We will send you an email with this number, a form to fill out, and a return address to send the item to. Please write this number on at least three sides of the return box to ensure that the package clears security. Keep your purchase, accessories, security tags if provided, and all packing materials in new condition to avoid refusal of the returned merchandise. 6 months warranty. We strive to give excellent service and please contact us should there be any concerns or issues Computer & Networking Cell Phones & Accessories Car Parts & Accessories Gaming Accessories Music & MP3 Audio Player Engineered for professional eBay sellers! On May-07-15 at 18:57:59 PDT, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Unbranded/Generic
MPN	Does not apply
UPC	Does not apply
