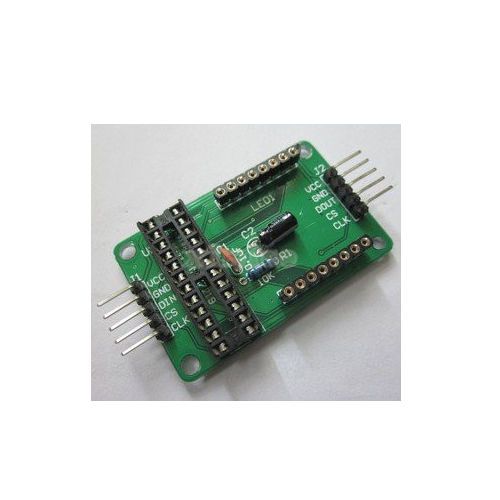

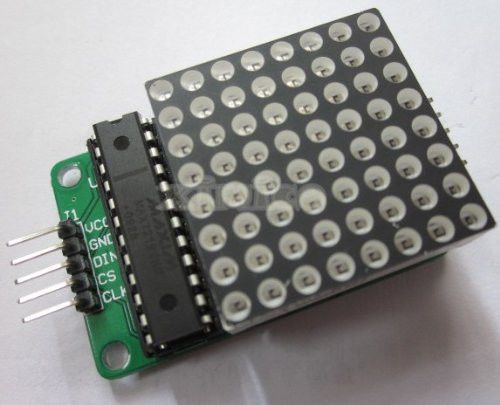

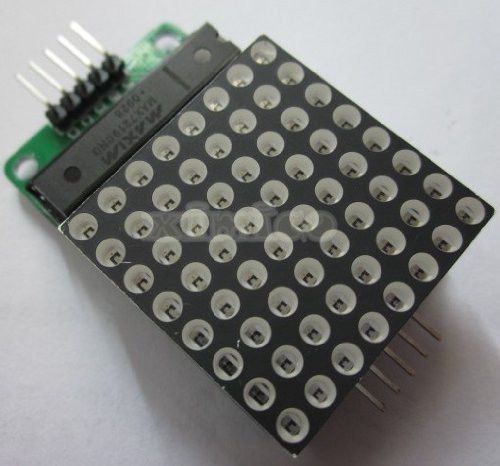

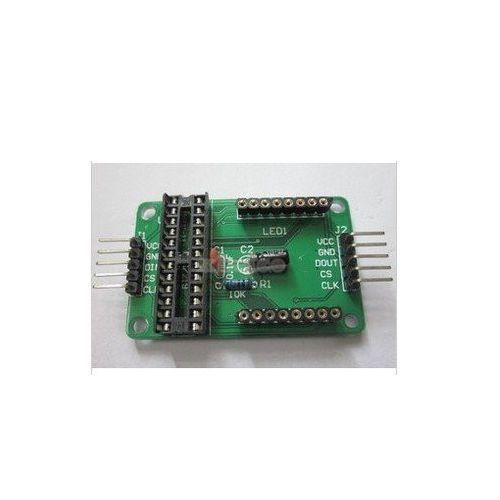

MAX7219 Dot matrix module MCU control Display module DIY Kit for Arduino, US $4.59 – Picture 0

MAX7219 Dot matrix module MCU control Display module DIY Kit for Arduino, US $4.59 – Picture 1

MAX7219 Dot matrix module MCU control Display module DIY Kit for Arduino, US $4.59 – Picture 2

MAX7219 Dot matrix module MCU control Display module DIY Kit for Arduino, US $4.59 – Picture 3

MAX7219 Dot matrix module MCU control Display module DIY Kit for Arduino, US $4.59 – Picture 4

Max7219 Dot Matrix Module Mcu Control Display Module Diy Kit For Arduino

US $4.59

??, ???, China
Feb 25th

Open on mobile:
QR code

Description International Buyers Please Note: - Import duties, taxes and charges are not included in the itemprice or shipping charges. These charges are the buyer responsibility. - Please check with your country customs office to determine what these additional costs will be prior to bidding/buying. We will carefully test every item before shipment. The quality is guaranteed! Product Description A single module can drive an 8 * 8 common cathode lattice Module Operating voltage: 5V. Module size: 5 cm long X 3.2 cm wide X 1.5 cm high With four screws hole, aperture 3mm Module with input and output interfaces, supports multiple modules cascade Wiring instructions: 1.The module left as an input port to the output port on the right. 2.The control of a single module, simply input port to the CPU 3.Multiple modules cascade input termination CPU, 2 output termination module, a module of the input of the input terminal, the output terminal of the first two modules of the first three modules, and so on. 51 MCU, for example: VCC -> 5V GND -> GND DIN -> P22 CS -> P21 CLK -> P20 Note: 1.VCC and GND is not reversed, it would burn the chip! 2.When the 51 microcontroller P0 port control, must be connected to the pull-up resistor, it is recommended that the resistance of 4.7K--10K. 3.Please lattice into the hole first seat, and then inserted into the round hole Block PCB board welding. Lattice word side facing the surface order from left to right pin 123456. PCB board 1 foot square pad! 4.Electrolytic capacitors long-legged as positive, negative short legs; ceramic capacitor without the positive and negative points. Package includes: 1x PCB board 2x 5P bent pin single row pin 1x 24P IC socket 1x Inline MAX7219 chip 1x 10uF electrolytic capacitor 1x 0.1uF ceramic capacitor 1x 10K resistor 2 Block 2x 8P round hole (pitch 2.54mm) 1x 3mm 8 * 8 common cathode red dot Payment Only through PayPal Shipping Thanks for your bid. Item will be shipped from China post on the 48 hours after your full payment has been received. Rate the seller on the time it took to mail the item, not the time it took you to receive the item!See the ebay policy here Delivery time: IMPORTANT: China Post Air Mail, China Post Air Parcel, HongKong Post Air Mail, HongKong Post Air Parcel may not be tracked and may result in delays or lost parcels. ----We can also ship the item through express service like DHL, UPS, if you are ready to pay the extra charge. To know the details please contact us with email. We ship to eBay address. Please make sure your address in ebay is matched with your shipping address before you pay. The images are for reference only. Please take the item you get as the standard. Please indicate your personal requirement, such as colors, packages, value of declaration etc, at paypal's message when you pay to us. Notes: We will NOT be responsible for any delay during delivery including but not limited to customs postage checking, strike, force majeure etc. As a buyer, it is your duty to pay the tax when you make a order from abroad. Our price does not include taxes, VAT, or other hidden charges. Terms of Sale Return & Refund Refund or replacement request is available only the requests within 1 week after parcel received & returning the item as the same condition as received. Please contact us to request a return authorization. Your name, auction number, and reason for return should be included in the email. All items returned must contain all original packaging materials. Please repack the item carefully. Items returned will be tested and a new replacement will be shipped to the buyer immediately when found defective. In the event that a suitable replacement is not available then a refund will be issued. Shipping, handling and insurance fees are non refundable. If the item is found non-defective, the item will be sent back to the buyer at buyer's expense. Items returned without RMA number will be refused and returned to the sender. Buyer is responsible for All Return Postage and Shipping Charges. Buyer is responsible for additional shipping costs for items that are returned refused and/or undeliverable. We do not accept any returns without an authorization number on the box or label it is being returned in. About Us if you send email to us,In our working hours will be resumed within 48 hours. If you we are not satisfied with the product or service ,please contact me and don't give us negative or natural feedback,We must give you a satisfactory solution. Feedback & DSRs (Detailed Seller Ratings). We depend on our eBay reputation and customer satisfaction to succeed.Therefore, Your feedback and DSRs are extremely importantto us as better DSR scores affect our search placement on eBay. We would like to earn your good feedback and 5 star DSR rating. Your action will help us offer our milk and bread . If we have not given you reason enough for 5-star grades on each DSR then please let us know how we can earn your 5-star rating before submitting yourscores! Contact Us Contact us through ebay message in English
