Liberty Lutron-p-red Cable - 350' - Lighting Control For Sivoia Shade Svq-pcbl

US $229.00

  • South Saint Paul, Minnesota, United States
  • Mar 24th

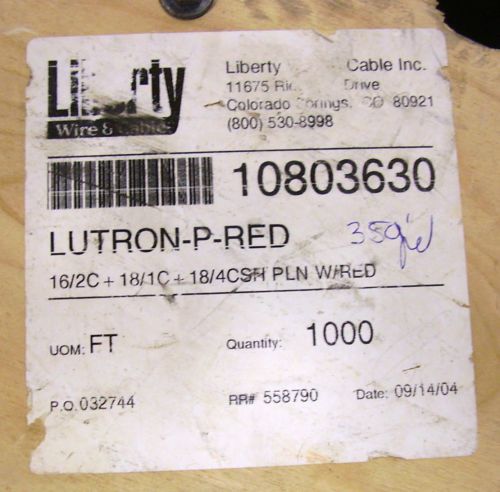

Liberty Lutron-P-Red  OEM systems lighting control for Lutron Sivoia shade control SVQ-PCBL equal cable 350' Piece Features and Benefits   •  Lutron control and power cable   •  Equivalent to SVQ-PCBL   •  Twisted, shielded 18 AWG shielded quad   •  Twisted, unshielded 16 AWG power pair   •  18 AWG single for sensor wire   •  Plenum rated PVC jacket with a red stripe   •  NEC CMP, CEC CMP FT6, RoHS compliant   •  1000 foot spools Applications   •  OEM window drapery motor power and control   •  Class 2 and Class 3 low voltage power   •  Systems instrumentation and Control Cross Reference LUTRON-P-RED is comparable to: Mfg. & Part No. Gepco: 16/18SVAP Technical Specifications  Description Composite cable consisting of a 18 AWG stranded, twisted and shielded quad with a 2 conductor 16 AWG stranded, twisted, and unshielded power pair and a single 18 AWG stranded sensor wire all under on common jacket NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. Component 1: 18 AWG shielded quad  19-strand annealed bare copper conductors  Plenum rated polyvinyl chloride insulation  Wall thickness: 0.012" | 0.30mm  Diameter: 0.074" | 1.87mm  100% aluminum/poly shield foil in 24 AWG 7-strand tinned copper drain wire Component 2: 16 AWG power pair  26-strand annealed bare copper conductors  Plenum rated polyvinyl chloride insulation  Wall thickness: 0.012" | 0.30mm  Diameter: 0.083" | 2.10mm Component 3: 18 AWG sensor / ground wire  19-strand annealed bare copper conductors  Plenum rated polyvinyl chloride insulation  Wall thickness: 0.012" | 0.30mm  Diameter: 0.074" | 1.87mm Color Code Power pair: Red, Black  Quad group conductor: Violet, Yellow, Gray, Blue  Static ground conductor: Yellow/green stripe Assembly Shielded quad, power pair and sensor wire cabled on a common axis Electrical 18 AWG quad group conductor DCR: 5.46 ? / 1000' | 17.91 ?/KM  Capacitance: 45 pF/FT | 147.60 pF/M  Impedance: 53 ?  Velocity of Propagation: 55 % Voltage rating: 300V  18 AWG single conductor DCR: 5.46 ? / 1000' | 17.91 ?/KM  Maximum current: 2.63A@25 C  16 AWG pair conductor DCR: 1.46 ? / 1000' | 4.80 ?/KM  Maximum current: 5.0A@25 C Regulatory NEC: CL3P 75 C  CEC: CMP FT6 60 C  EU RoHS 2002/95/EC Compliant Packages Reel: 1000' | 305M  Weight: 87 Lbs/1000' | 130 Kg/KM Installation Pull Tension: 127 Lbs | 565 N  Bend radius: 3.22" | 82mm unloaded  Bend radius: 6.44" | 164mm loaded  Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32 F | 0 C ambient temperature Applications Lutron® shade control cable  Direct drop in for Lutron SVQ-PCBL cable  Plenum Lutron® quiet electronic drive motor control  SIVOIA Construct Ripcord under jacket Jacket Plenum rated polyvinyl chloride  Colors: Natural White/red stripe  Wall thickness: 0.020" | 0.51mm  Diameter: 0.322" | 8.18mm Any offer of free shipping is based on the cheapest rate at time of shipping regardless of any shown option. Expedited shipping and 24-hour handing available. Return Policy: I do my best to research the parts and their compatibility. If I make a mistake in the listing or shipping I will refund the price and pay shipping both ways or just refund your money depending upon the cost to me. If you make a mistake and want to return it, you pay shipping both ways, plus, 25% of the item's cost, or $5 (to a maximum of $25), to cover my fees and time. And I'll probably still give you a good rating for being a good sport. Price/Cost/Fees: I generally try to estimate and ship at cost and research the most cost effective service. USPS Priority Shipping is generally cheaper for most items that I sell so you get faster shipping and insurance. I am not responsible for how long the shipping companies take. If you need to get it quicker, or by a guaranteed date, be sure to let me know and we can set up a faster option. eBay and PayPal fees are about 10-25% of the total price. About Me: I first started selling used Saab parts as a way to offset the cost of repairing my own. Now, I offer a wider variety of items depending upon what is available and at prices that benefit the buyer and myself,. Unlike some resellers, I generally have a very good idea of what I'm selling, and in most cases experienced in their respective areas. I do a fair amount of research before I buy the items I sell so that I am able to answer your questions or point you in the right direction. My goals: 1. To operate with integrity so that you can be assured of anything I have for sale. 2. Happy customers assure potential customers that I mean what I say. 3. Make enough money to make it worthwhile. This is not my main occupation but I do take pride in my customer service and giving the buyer a good value. If you have any questions or comments just let me know. The Fine Print: Don't drive and text  •  Eat your vegetables  •  Save for a rainy day Check the air in your tires  •  Say thank you  •  Admit your mistakes Call your mother once in a while.
Remnant
Brand Liberty
MPN LUTRON-P-RED
Model Lutron Red
