Leica Tcra 1105 Plus 5" Total Station Surveying Equipment

US $4300

  • Mount Vernon, Washington, United States
  • Mar 10th

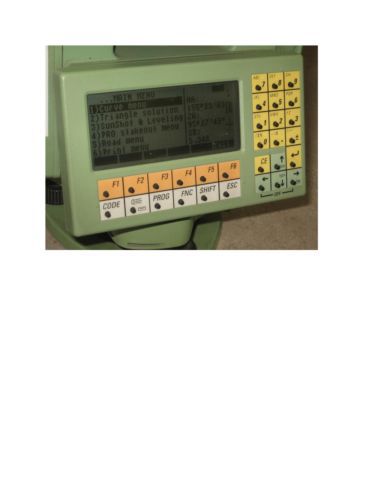

LEICA TCRA1105plus + ROBOTIC TOTAL STATION With Tripod Data Systems Pro ( TDS pro) installed onboard You are bidding on used Leica TCRA1105 plus full robotic prismless total station with 5” angle accuracy. TCRA1105 gives you access to the best, most-productive measuring methods available and ideal for a wide range of applications and with its innovative Servo, Autolock®, and Robotic technology, allows you and your survey crews to survey more productively than ever before. When you invest in the Leica TCRA1105 you get more than just an advanced survey instrument, because the TCAR1105 is really a complete Integrated surveying™ solution. It comes standard with 3 MB of internal program memory, standard applications offers five programs and optional applications provide 12 programs. A PCMCIA port is also standard for external memory 512KB card which holds 4500 data blocks. With providing a RCS1000 remote-control system you can upgrade the unit to a full robotic system and do trigger, inspect and code measurements from the target area. Unit is provided with onboard memory and an RS232C data output connector to use with a data collector or external computer. Unit also features a memory cardholder on the side for on-board data collecting which save you the cost of data collector. This unit has been used but it is in excellent condition rated 9 out of 10. Guaranty will impress everybody’s expectation. The TCRA1105 + features a large graphical display and a full alpha/numeric keyboard. Its high-performance motors rotate the unit at an astounding 50 degrees per second and fast servomotors will track the prism at a speed of almost 20 MPH (5 degrees per second) for faster target acquisition. It also features a new Jog/Shuttle mechanism replaces the clamp/tangent screw for high-speed rotation and accurate target sighting. Unit is featured with IP-54 Waterproof/Dustproof rating, which is suitable for use in the toughest environments. Leica’s exclusive optical data link eliminates the hassles and headaches of radio-controlled robotics. No interfering frequencies, no FCC licensing issues.     Magnification: 30X Image: Erect Angle accuracy: 5”/1.5 mgon Angle minimum display reading: 1”/5” Distance measurement: 1Prism: 3.500m/11.480ft, 3Prism: 5.000m/16.400ft Distance measurement precision: +/-(1mm + 2ppm) Distance measuring time: 0.2s in tracking mode Distance measuring time: 0.8s in coarse mode Distance measuring time: 1.2s and 3s initial in fine mode Distance minimum display: 1mm Angle units: Switchable between meter or feet, angle degrees or gon Display: Dual, LCD, 8 lines of 32 characters, graphics capability, on- line help, messages Keyboard: 32keys (numeric and alphanumeric input) 12-key numeric block, 20 function keys Data input/output: RS-232C compatible, asynchronous serial Data recording: Memory card, holder Servo driving mechanism: Servo control with slow down function Servo coarse movement shuttle control outside: 7 speed change Servo fine movement: Jog control Min. 1 sec. Servo max. Rotating speed: 50deg/sec. Servo Max. auto tracking speed: 12deg/sec. ATR1 mode: 1Km/3300’ with prism and 0.5 Km/1650’ with 360deg prism Lock mode: 0.5 Km/1650’ with prism and 350m/1150’ with 360deg prism Minimum distance range: 5m/16.4’ (ATR1) and 20m/65’ (LOCK) Program memory: 3MB Compensator: Liquid dual axis Compensating range/Accuracy: 4’/1” Laser plummet: Provided Weight: 7.7 kg, 17 lbs including tribrach and battery       We have kept this gun as back up for a few years and no longer need it.  The batteries work but there longevity is not there - For the gun to be used daily I would get another set.  Here is a list of what is included: TCRA1105 + full robotic Total station with Original hard case RCS1100 Control Unit with Original hard case TCPS26B-G134 External Radio GRZ4 360 DEGREE PRISM 639985 2X GEV 137 Y-Cable 707135 3X GEB121 4X GEB111 CU Bracket GHT32 GKL 122-1 Charger GEB 71 Battery (2) Antenna for radio and CU Original carrying cases with rain cover, lens sun shade, 5/8" to 360 adapter, PCMCIA card and the RCS1100 manual.  No software for the TDS Pro onboard - it is already installed.  The picture of the controller that blocks out the letters is because of the flash.
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...
Brand Leica
Model TCRA1105 Plus
