Leadshine Motor 2 Phase 48.14(0.34)nm 42hs03+ M415b Stepper Drive 18-40dcv New

US $115.00

shenzhen,Guangdong, China
Jan 29th

Open on mobile:
QR code

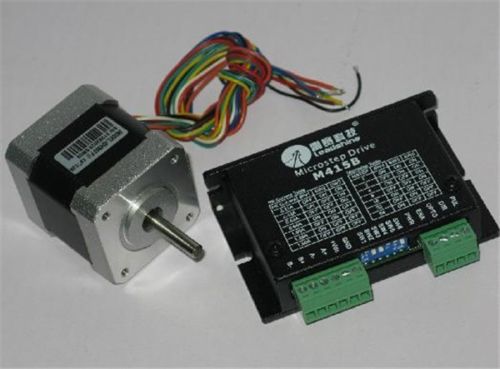

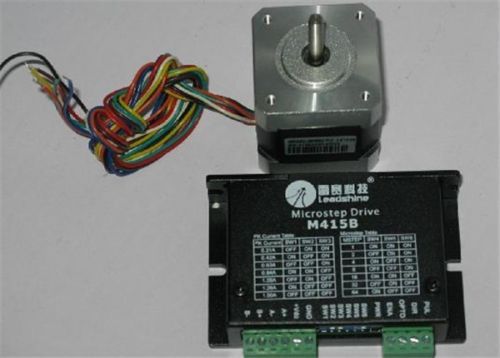

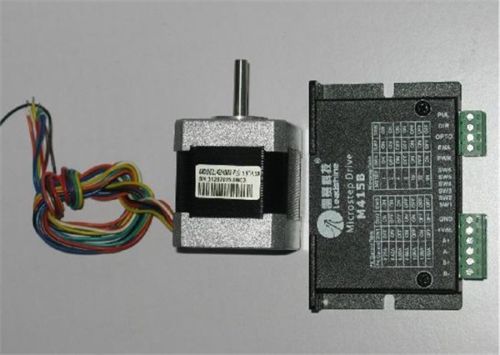

Leadshine motor 2 phase 48.14(0.34)NM 42HS03+ M415B stepper drive 18-40DCV New M415B Features: *High performance, low cost *Supply voltage up to +40VDC *Output current up to 1.5A *Inaudible 20 KHz chopping frequency *TTL compatible and optically isolated input signals *Automatic idle-current reduction *Mixed-decay current control for less motor heating *7 selectable microstep resolutions: 1, 2, 4, 8, 16, 32, 64 *Suitable for 2-phase and 4-phase motors *Protection against power leads(+, -)reversal *Small size: 86*55*20mm (3.386*2.165*0.787Inch) Specifications: Parameters M415B Supply voltage +15~40 VDC Typical supply voltage +24~36 VDC Output current 0.21~1.5 A Microstep resolutions 1, 2, 4, 8, 16, 32, 64. Applications: Suitable for a wide range of stepping motors from NEMA size 16 to 23, which used in various kinds of machines, such as X-Y tables, labeling machines, laser cutters, engraving machines, pick-place devices, and etc. It’s specially adapted to the applications desired with low vibration, high speed and high precision. 42HS03 Features: *2-phase hybrid step motor *High torque design *Standard NEMA 17 dimensions *Series or parallel and unipolar wiring *Optimized for microstepping Specifications: General Step Angle 1.8° Step Angle Accuracy +5%(full step, no load) Temperature Rise 80°CMax Ambient Temperature -10°C -- +50°C Insulation Resistance 100M?min.500VDC Dielectric Strength 500VAC for one minute Shaft Radial Play 0.06 Max.(450g-load) Shaft Axial Play 0.08 max.(450g-load) Number of Leads 8 except 42HS04(4 leads) Electric Model Number Connection Holding Torque Oz-in (Nm) Phase Current (Amps) Phase Resistance (Ohm) Phase Inductance (mH) Rotor Inertia Oz-in-sec2 (g.cm2) 42HS03 (Bipolar) Parallel 66.55(0.47) 1.4 2.3±10% 4±20% 0.001164(82) (Bipolar) Series 66.55(0.47) 0.7 9.2±10% 16±20% Unipolar 48.14(0.34) 1.0 4.6±10% 4±20% Matching drives: Model Match drives 42HSxx EM402/DM422C Applications: Suitable for all kinds of small automation equipment and instruments, such as: pneumatic marking machine, marking machine, cutting machine, laser marking machine, plotter, small engraving machine, CNC machine tools, handling equipment, etc. The efficiency is very high for the users who expect low vibration, little noise, high precision and high speed small equipments. Other stepper sets available in FASTTOBUY: M415B + 35HS01 Leadshine 2-phase Stepper Set (Drive + Motor) M415B + 35HS01 0.07N.m New M415B + 39HS01 Leadshine 2-phase Stepper Set (Drive + Motor) M415B + 39HS01 0.065N.m New M415B + 39HS02 Leadshine 2-phase Stepper Set (Drive + Motor) M415B + 39HS02 0.22N.m New M415B + 42HS02 Leadshine 2-phase Stepper Set (Drive + Motor) M415B + 42HS02 0.22N.m New M415B + 42HS03 Leadshine 2-phase Stepper Set (Drive + Motor) M415B + 42HS03 0.34N.m New M415B + 42HS08 Leadshine 2-phase Stepper Set (Drive + Motor) M415B + 42HS08 0.8N.m New Contact information: Fast To Buy Ltd 1207, International E-Commerce Industrial Park of FuTian, Shangmeilin, Futian district, Shenzhen, 518049, CN Phone: +0086 13724354369 or +0086 755 82546545 email: ebay@fasttobuy.com skype: ebayfasttobuy our working time: EST 9:00AM ~ 6:00 PM Shipment: Once payment received. Item will be shipped out within 1-3 working days by DHL, Fedex, UPS, EMS ASAP. Usually it takes 3-7 working days to most of the country. You will be notified the traking number once shipped out. Kindly please note the Tax fee and Customs clearance fee are not included in the item’s listing price. Kindly please feel free to contact us before shipping if there’s any thing we can do for you. Warranty: Fast To Buy Ltd make sure the item is brand new with original package and offer 1 year warranty for the quality. Return policy: We accept return or refund within 14 days for the quality reason, not man-made reason. Kindly please contact us before returning the package. Payment will be refunded to you within 24hrs once the package received by us. You understanding appreciate. Kindly note: Pls check and confirm the part NO. and your application before place order, any further assistance please feel free to let us know. Company picture:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Leadshine
MPN	M415B + 42HS03
Model	M415B + 42HS03
