LCD1604 16x4 Character LCD Display Module 5V LCM Yellow/Green Backlight, US $398 – Picture 0

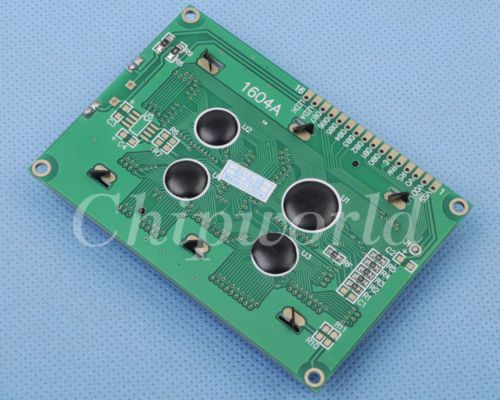

LCD1604 16x4 Character LCD Display Module 5V LCM Yellow/Green Backlight, US $398 – Picture 1

Lcd1604 16x4 Character Lcd Display Module 5v Lcm Yellow/green Backlight

US $398

Shenzhen, China
Jan 29th

Open on mobile:
QR code

Recommendations For You 40% Off, $2.79 Now 50% Off, $2.65 Now 20% Off, $3.60 Now 20% Off, $3.60 Now 50% Off, $5.46 Now Visit my eBay Store:ChipWorld Product Name: NEW LCD1604 Steady 16x4 Character LCD Display Module 5V LCM Yellow/Green Blacklight More Items In Our Store,Click Here! SKU: 4153 Parsts No. : Package: Brand: Quantity: 1 MECHANICAL SPECIFICATIONS Item Nominal Dimensions(mm) Module Size(W*H*T) 87.0*60.0*13.0 Viewing Area(W*H) 62.0*27.0 Character Area(W*H) 2.99*4.82 Dot Size(W*H) 0.55*0.55 PIN CONNECTIONS Pin Symbol Function 1 VSS Ground for Logic(0V) 2 VDD Power supply for Logic(+5V) 3 V0 Power supply for LCD Driver 4 RS H:Data;L:Instruction Code 5 R/W H:Read;L:Write 6 E Enable signal 7~14 DB0~DB7 Data Bus Line 15 LED+ Backlight Power(+5V) 16 LED- Backlight Power(0V) FEATURE LCD Type& Colour STN:Yellow-Green View Angle 6 O’clock Display Type Positive Type,Negative Type Control IC & Package KS0066 or EQV,COB Operating Temperature -20°C~70°C Storage Temperature -30°C~80°C For more quantity, please contact me.(My skype: ada-yu2013) The Standard shipping we provide is non-regiested mail without a tracking. We provide free shipping with tracking number when your order is over $50. If your oder is below $50 and you need tracking, please contact me. Maybe you request 2pcs 2.4GHz NRF24L01+ Antenna Wireless Transceiver Module For Microcontrol new 4pcs 433Mhz WL RF transmitter and receiver link kit for Arduino/ARM/MCU 20pcs 433Mhz WL RF transmitter and receiver link kit for Arduino/ARM/MCU good 5pcs new Breadboard 830 Point Solderless PCB Bread Board MB-102 MB102 Test DIY 9PCS NEW TEC1-12706 Thermoelectric Cooler Peltier 12V 60W 92Wmax good $ 3.8 + free shipping $ 6.0 + free shipping $ 28.0 + free shipping $18.0 +free shipping $ 28.0 + free shipping Any problem, please contact us freely 1) We accept PayPal payment ONLY. inkFrog Analytics
