Lcd Usb Mini Voltage And Current Detector Mobile Power Usb Charger Tester Meter

US $7.59

  • GUANGDONG, China
  • Jan 29th

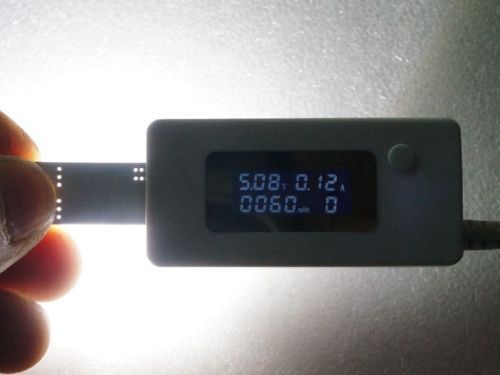

This test can be a USB charging current, voltage, discharge capacity,  intelligent devices. It can be very easy to find digital device charging problem. Tester three dimensional size 60 * 28.5 * 15mm (without cable), about 15 cm  length of the line The only button on the tester is used to view and test data switch, the  tester can store 10 groups of test data mirco USB input port USB output port can be connected to a data line, a discharge resistor or the  like cable device comprising a data communication function, the data does not  affect the data transmission line. Test specifications, voltage can not exceed 7V, current can not exceed 3.5A Note: When the voltage is lower than  4.7V on the instrument display or higher than 5.3V, the LCD screen will flash,Does not affect the use? ======================================= Application examples Because mobile phones and digital devices at low battery or full charge, the  current and voltage is not a stable value, the application example of the  discharge device is a USB 1A or 2A discharge resistor. 111111111111111111111 To purchase USB resistive load, please click here.  http://www.ebay.com/itm/141293531705 The first group of pictures charger test ipad original charger connected to 2A load resistor, the output current and  voltage to 5.01v 1.89A ipad original charger via USB HUB, connect the 2A load resistor and mobile  phones, the measured value of the maximum current and voltage 5.01V 2.28A, very good  charger, Salcomp(a NOKIA company) charger connected to 2A load resistor, the output  current and voltage to 5.01v 1.89A Salcomp(a NOKIA company) charger via USB HUB, connect the 2A load resistor  and mobile phones, the measured value of the maximum current and voltage 5.01V 2.20A, very good  charger, Bose charger 1A current load resistor connected to 2A current automatic  charger immediately to protect the output, good charger Mobile power connector USB HUB for mobile phone charging, the measured  voltage and current values 5.00V 0.44A Mobile power via USB HUB, connect the 2A load resistor and mobile phones, the measured value of the maximum current and voltage 4.86V 1.96A, Still good  mobile power The Second group of pictures USB date cable LG 1M original data cable, 1A current charger, USB tester, test results 4.8V  0.92A palm 1.8M original data cable, 1A current charger, USB tester, test results  4.71V 0.90A samsung 1.5M original data cable, 1A current charger, USB tester, test  results 4.80V 0.92A Orange data cable, 1A current charger, USB tester, test results 4.22V  0.81A,This cable quality is not good ===================================================== Mobile power discharge capacity test Begins to discharge 0001mAh 0002mAh 10 minutes after the discharge capacity was 0164mAh We conclude that the charging current is 0.98A, the discharge capacity of 10  minutes 164 mah, one hour 984 mah, this mobile power one hour charge or  discharge capacity of the entire 1A exactly,   Note: This data is mobile power discharge capacity, the battery capacity is not, according to our experience, the discharge capacity is about 1.9 times the battery capacity.  The former Test Reference Manual Tester discharge capacity value is cleared, and the mobile power is fully charged. ===================================================== Instructions 1. Input Voltage: 3V - 7V Input current: <3.4A 3. Parameters that you can test: Voltage of battery. Current of battery, value of discharging capacitor.(Total ten parameters) 4. Communication function: Yes 5. Parameters adjusting fuction:Yes. Equipments for parameters adjustment: One electronic load, one constant current  source. Voltage of constant current source should be setted to 8.5V <Vc< 10V(Proposal  9V). Electronic load should be setted to CC modle(Constand current model. There  are 3A, 2A, 1A and 0.3A models for current adjusting. Here is a example for 3A: When you set electonic load at 3A model, the current will be adjusted step by  step. It will cost you about 10 seconds and you can see the result changing  procedure in the LCD screen. When you see the 3A result shown in LCD screen, the  adjustment process is finished. You can shut off the electronic load and the  parameters will be saved automatically. 6.Clean the data: Push the button until the parameters changed to next sets of  parameters. Then release the button. Then the next sets of parameters will be  started and they will start from zero. 7. Check the parameters: Quick beat the button double times(within 0.5s), then  it is checking model. The LED background will be flash.Then you can see the next  set of parameters in LCD screen. Quick beat the button double times agian, you  release the parameters checking model. LED backgroud be be light with flash. 8. Over voltage or under voltage: An arrowhead will be shown in LCD screen and  LED background will flash. Push the button and LED will be light without flash.  It will last 30s. 9. Trun on model. The LCD screen will show all parameters within 1s when you connet power supply  by MicroUSB or male plug of USB with wire.(It is to check whether the LCD screen  is good or not). Then you can see the parameters used last time(capacitor and  which set of parameters). You also can see the current voltage, current and over  voltage or under voltage. Please see following illustration.
