Kingfisher Ba-40 4 Slot Back Plane Rtu Plc

AU $165.00

  • Brompton, SA, Australia
  • Jan 29th

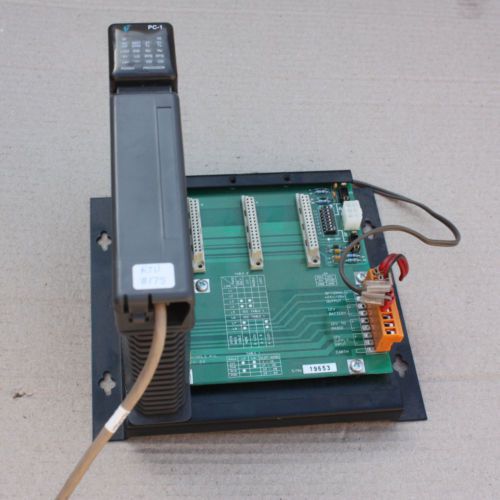

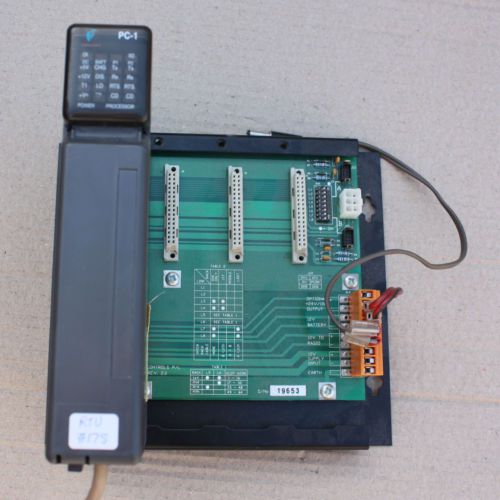

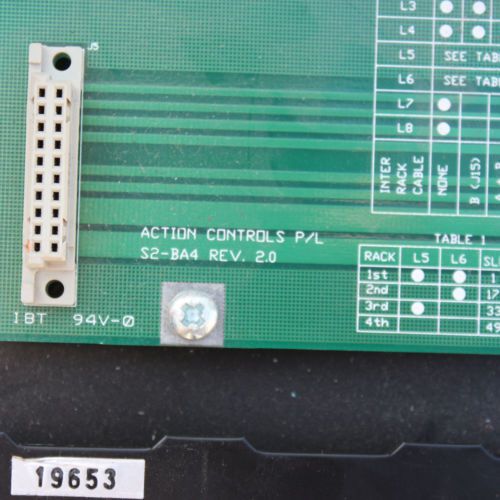

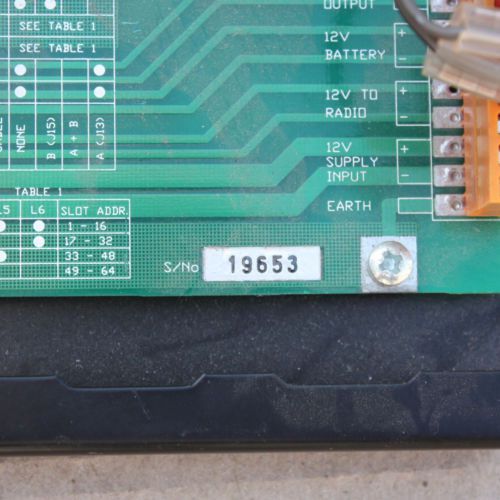

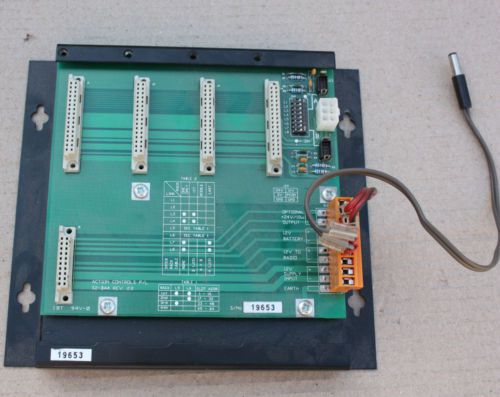

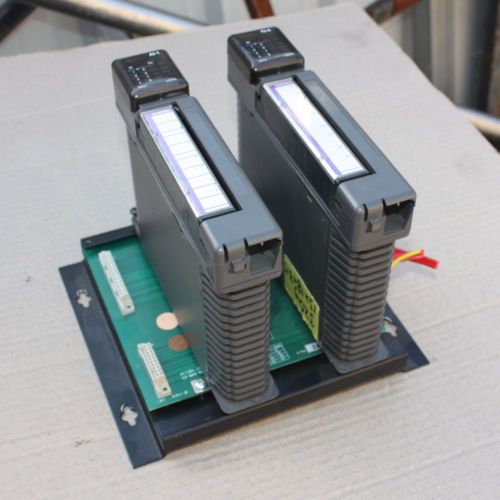

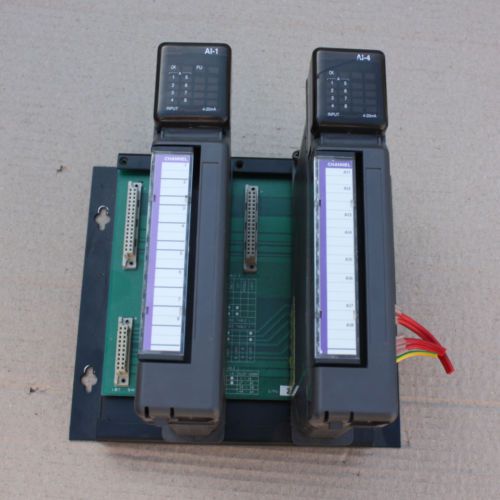

BA-4 Four-Slot Backplane PC-1 Please note we also have 2 x PC-1s, an AI-1 and an AI-4 listed. Features: A BA-4 backplane is for use with the PC-1 (power & processor module) in the far left slot and any I/O or communication modules in the other 3 slots. A BA-40 backplane is similar to the BA-4 backplane except the J5 (PC-1 lower connector) and SL-9 (PC-1 power) connectors have been removed to allow various modules to be installed in the leftmost slot. A BA-40 can be used with a PS-xx power supply and a CP-xx processor module or can be linked to any other backplane when more slots are required. There are four (4) connectors at the far right of a BA-4 backplane. The two (2) small 8 way connectors are for inter-backplane communication links, the six way connector is for an external power supply (+5V and +12V DC), and the lower 9 way connector is used for incoming and outgoing power. A BA-40 does not have the lower 9-way SL-9 connector. Product specifications: BA-4 External Connections J14 Power Connector (viewed from the top) 24V 12V 5V PCON 0V 0V PCON = Processor controlled power enable. The 24V pin is not used by the PC-1.  The 12V and 5V output pins can be used to power a second backplane (e.g. BA-40).  These pins are supplied by the PC-1 when a battery or input supply is connected to the orange BL9 connector.   J13 (in), J15 (out) Inter-rack Backplane Comms Connectors   Orange SL9 connector - (BA-4 only, viewed from the top without the plug inserted) To power the PC-1, the +12V and 0V Input Supply pins need to be wired to a suitable power supply (e.g. connect a PSU-3 power supply). The +24V Aux. Supply is only available if the PC-1 is fitted with a DC-DC converter (optional).  Two battery terminals are supplied for charging of a backup battery.  The +12V Radio terminals can be used to power a radio or other external equipment. Please call Tim 0419 363 992 with any questions or email tim_marshman@blackboxproductions.com.au and check out my other listings I have tons more gear to list so If you are chasing something specific please get in touch. You are welcome to inspect the items by appointment at out Hindmarsh address in Adelaide
