Kc901h Scalar Network Analyzer Field Strength Meter Sweep Frequency Generator

US $935.00

Shenzhen.Guangdong, China
Jan 29th

Open on mobile:
QR code

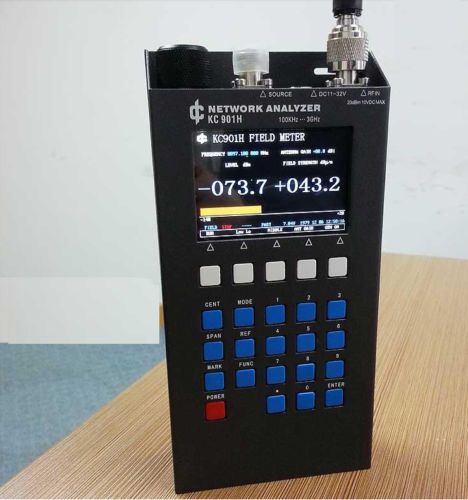

template KC901H scalar network analyzer frequency scanning antenna spectrum sensing field strength meter comprehensive test RF multimeter This device is mainly used in debugging various active, passive radio frequency devices live, such as the duplexer, electric-wave filter, amplifier, splitter, mixer, test the standing wave of the aerial and present collinear insertion loss. Increase the appropriate externally positioned attenuation pad, can debug the loops of radio frequency of transmitting set, receiver. In some frequency bands, can also carry on field strength measurement, interference finding out, cabinet fault point location and speed factor measurement. The instrument antijamming capability is strong, the dynamic range is big, it is convenient and ocular to debug the duplexer, electric-wave filter, aerial, overhaul in the course in base station, can hand-carry, change at any time. The standing wave test of the aerial adopts the tracking receiver, can finish testing under the strong external disturbing condition, especially suitable for broadcasting the TV transmitting antenna, large-scale shortwave antenna test. 901H has very wide power voltage ranges, can take the direct current power supply between 11.5-32V, it is charged that very convenient and vehicle carried. This device can be regarded as specialized communication engineers and technicians, broadcast attenbant instrument always on the alert of TV transmitting station. Used for raising homework efficiency, reduce and take and transport the burden, improve engineering quality. Main technical feature: 1.Frequency domain: Transmit and test 100KHz… … 3GHz (allow to use 0…..100kHz) Reflect and test 1.5MHz… … 3GHz (allow to use 0…..1.5MHz) 2. Maximum output level: +10dBm( 1MHz— — 1GHz) + 0dBm( 1— — 3GHz) 3. Input sensitivity: Superior to - 107dBm or 1?V (50KHz— — 1GHz, 144/435MHz typical value-115dBm or 0.3?V) Superior to - 87dBm or 1?V (1— 2.2GHz) 4. Damage level: Output port DC15V, +20dBm Input port DC15V, +20dBm 5. S21 tests range(typical value) : 110dB( 1MHz—1GHz, measures the trends about 60dB in 100KHz,120dB in 435MHz) 90dB( 1—3GHz), 60dB( 2—2.5GHz) 6. Resolving ability: Frequency 1Hz Level 0.1dB 7.5V) : 1.5dB(frequency spectrum test, REF=20dBm) 3dB (frequency spectrum and field intensity test) ( 1+0.05L) DB (S21 tests) +2dB -3dB* loss25MHzf1GHZ 6dBRL18dB 8. Mains voltage: 11.5V… … 32V (charge),7.2V……8.4V (battery) 110V230V 50/60Hz(power adapter input) 9. Physical dimension: 230x 113x 46mm Main function: Transmit test ( S21) Standing wave tests ( S11) Frequency spectrum reveals(SPEC) Field strength measurement (FIELD) Manual: 1.Your valid phone number is very necessary for the shipping, otherwise we can't guarantee that the package would safely arrives. 2. Any Customs tax applied to this package should be covered by buyers. What in Package: 1 x Network analyzer 1 x Power adapter(charger) 1 x Shoulder harness 1 x Keypad Cover 1 x User's Manual ?Payment 1. Payment methods accepted : Paypal only. 2. Payment must be received within 7 business days of auction closing. ?Shipping 1. We ship your orders within 1-2 business days after the payment received. 2. Item shipped via Singapore Post or HongKong Post , It takes about 7-14 business days (USA,CA,AU,UK).others country 10-20 business days(Brzil,India,RU),Exact delivery time depends on postal process. 3. If you do not receive your item(s) by 30 business days,Please feel free to contact us via ebay mail system , we will try our very best to resolve any problems with you ?Return Policy 1. Return is accepted within 7 days after the buyer's receiving the item. 2. If this item is defective upon receipt, customer has up to 7 days from date of receipt for exchange of a new one. 3. Unused/unopened merchandise will be fully credited. ?Other Policies We are not responsible for any custom duty or import tax. If you need we write low price on shipping bill, pls leave message when you make payment . All emails will be answered within 24 hours. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible, Suggest send eBay message to us, That is easy to find .
