Jdsu Acterna Hst-3000c W/ Bdcm-wb2 Xdsl Adsl2 Vdsl2 Bonded Copper Tdr Hst 3000

US $2,395.00

  • Toledo, Ohio, United States
  • Jun 9th

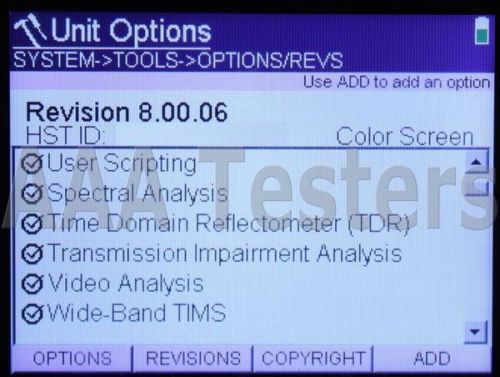

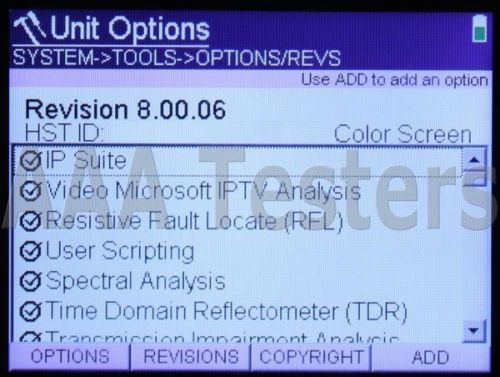

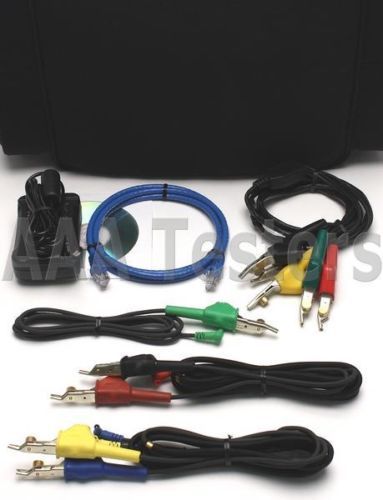

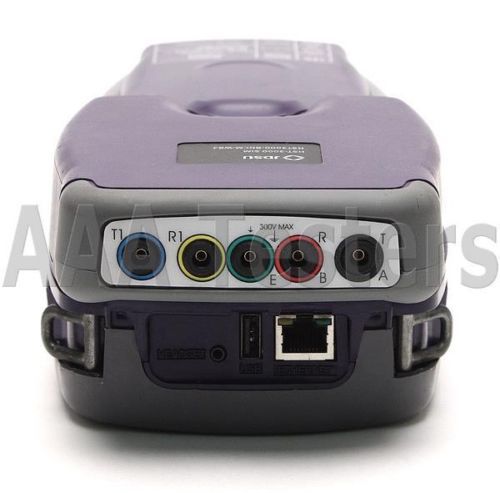

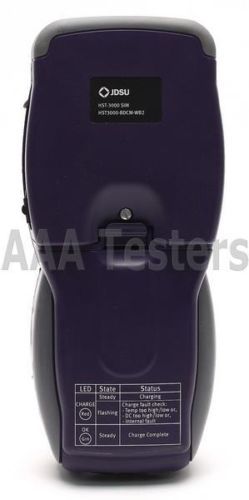

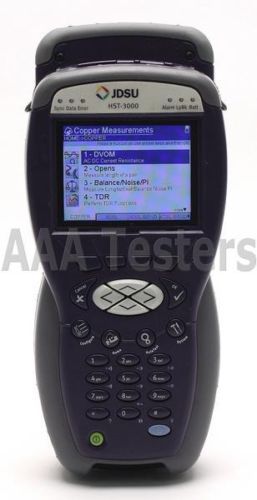

                                                              Content on this page requires a newer version of Adobe Flash Player.                      The Following Items Are Included: JDSU HST-3000C HandHeld Consumer Services Tester w/ Options (BC# 20741) IP Suite Video Microsoft IPTV Analysis Resistive Fault Locator User Scripting Spectral Analysis Time Domain Reflectometer Transmission Impairment Analysis Video Analysis Wide-Band TIMS JDSU HST-3000 BDCM-WB2 ADSL/VDSL Bonded & Copper Module (BC# 20742) 5 Color Test Lead Set RJ45 To 5 Color Clip Cable Ethernet Cable AC Adapter/Charger User Manual On CD-ROM Carrying Case (G)     BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! This Item Has A Current Calibration!   JDSU Acterna HST-3000C HandHeld Consumer Services Tester   Installed Options: - IP Suite - Video Microsoft IPTV Analysis - Resistive Fault Locator - User Scripting - Spectral Analysis - Time Domain Reflectometer - Transmission Impairment Analysis - Video Analysis - Wide-Band TIMS   INCLUDED MODULE: - JDSU HST-3000 SIM BDCM-WB2 (Broadcom Bonded xDSL Module.  ADSL1, ADSL2, ADSL2+, VDSL2, Bonded ADSL, Bonded VDSL And Copper Testing.)   Includes Carrying Case & Accessories As Listed Above!   Working Condition: Excellent Condition: Refurbished Calibrated: Yes Warranty: 90 Day Exchange Warranty     Acterna HST-3000 Handheld Consumer Services Tester Highlights Test call types including voice, 56K, 64K, Nx56K, Nx64Kand H0 to verify correctswitch translations for inbound and outbound calls Place and receive calls on T1 (primary or secondary) for NFAS configurations Switch in-service D-channel to stand by D-channel for verification of Dchannel backup operation in NFAS configurations Call status results provide summary of calls D-channel monitoring of layer 2/layer 3 cause code messages Store and print full layer 3 (Q.931) decodes As a widely deployed service, ISDN is a key source of revenue for telecommunication service providers world-wide. This, coupled with today’s reduced budgets and smaller workforces, make it more critical than ever to ensure the timely and successful turn up and maintenance of ISDN service – the first time out. Additionally, thorough ISDN testing can prove more complex than basic physical layer and BER testing for technicians who lack the necessary training. To meet these challenges, an easy-to-use, versatile test solution is required that helps reduce failures and repeat rates while enhancing efficiency and ensuring consistent test practices. The Acterna HST-3000 is a powerful and versatile test instrument for testing ISDN PRI service. Hand-held, rugged and easy-to-use, the HST-3000 is ideal for field use. Its modular design provides a scalable, all-in-one solution for ISDN testing, as well as thorough testing of the facilities over which it is provided. The HST-3000 ISDN PRI option enables testing of Primary Rate ISDN circuits at both the customer site and central office. It supports call placement, receipt, D-Channel Decode analysis for 23B+D, NFAS (Non-Facility Associated Signaling), 24B and backup D channel switching. With the full range of T1 loopcodes and BERT patterns it can also test BER across any combination of channels to verify service before delivery to the customer. Compact and rugged for field technicians, the HST-3000 can be used in all conditions, from an inside office environment to a noisy, wet outdoor span repeater. The HST-3000 also boasts automated setups and advanced features that ensure consistent adherence to service provider methods and procedures. Each HST-3000 is built to order and can easily be field-upgraded with new modules and software as application and technology needs change. Call Verification The HST-3000 can place, receive and monitor ISDN PRI calls on a primary or secondary T1 interface. It has the ability to place and receive single or NFASvoice, 3.1 kHz audio, 56k data, 64k data, Nx56/64k data or H0 calls. In addition, dual transmit/receive interfaces, standard on each T1 Service Interface Module (SIM), allows the HST-3000 to be deployed to test in-service to standby D-channel switching. Allmajor call controls are supported, including National, DMSand 5ESS. For incoming calls, the HST-3000 can either prompt the user to accept or reject the call, automatically accept or reject the call, or accept and loop back the B channels. After a call has been accepted, the technician can drop the received B channel data to the speaker or headset or BERT the call. BER testing and a voice path via a handset is provided to qualify these data and voice calls, respectively. This allows technicians to access T1 physical linkmeasurements and verify switch translations prior to delivering service. Easy-to-read result menus allow technicians to view ISDN statistics, call status, BERT results, T1 results and D-channel decodes. Technicians can also view a summary screen that presents a rapid assessment of test performance and a summary of results for the physical layer, LAPD and Q.931 results. D-Channel Decodes Analysis D-Channel decodes help to verify that a call is successfully established, or determine why a callwas not completed by examining the protocol cause values. The HST-3000 can monitor layer 2 (Q.921) and layer 3 (Q.931) cause code messages on the D-channel in both terminate and monitor modes. Layer 2 results give technicians the ability to check link and D-channel status, verify LAPD frames and check utilization rates. Following link establishment, layer 3 decodes allow technicians to verify such factors as call state, who made or dropped the call, why the callwas dropped, where the call is being carried (Interface ID/B-Channel) and call types. Troubleshooting Non-intrusive, bi-directional monitoring of in-service D-channel signaling messagesmakes troubleshooting ISDN service easier. For ISDN PRI circuits, the technician can access live D-channel lines through monitor jacks on a DSX patch panel. If the problem can not be isolated, then sectionalization can be accomplished byemulating either the TE or the NT. This enables the technician to sequentially replace each piece of premise equipment to identify the source of errors– reducing the total time to trouble resolution. Results can be displayed on-screen or stored for later retrieval and output via RS-232, USB or Ethernet connectivity standard with each base unit. Flexible and Rugged Design The HST’s rugged, weather resistant design and long battery life are ideally suited for use in the field. Itsmodularity allows for field upgrades to support new testing requirements. Standard Ethernet, USB and serial connections offer flexibility to easilydownload software and offload captured test data. Easily configurable, the HST-3000 can be used by different technicianswith different responsibilities to perform a wide number of tests. The HST-3000 is easilyupgradeable with technologies and advanced options that support the changing needsof service installers. Test the Copper, Test the Service, Improve the Process If equipped with the Copper Testing option and a copper Service Interface Module , the HST-3000 can quickly troubleshoot the local loop for line impairments that degrade or impair T1 performance. With the HST-3000, technicians can quickly identify and locate cable impairments: shorts, grounds, opens, crosses, bridged taps, wet sections and other high resistive faults. These impairments are easy to accesswith the HST-3000’s advanced time domain reflectometer (TDR), precision digital volt/ohm meter (DVOM) and an accurate resistive fault locator (RFL) to pinpoint troubles prior to circuit installation. Copper test features are optimized for use anywhere on the local loop – at the NID, crossbox, pedestal, main distribution frame or anywhere a technician might gain access to the local loop to locate the source of trouble. The T1 or HDSLfacility that carries the ISDN PRI service can be qualified using a number ofBERT patterns, such asQRSS, 1 in 8 and 3 in 24. The HST-3000 has an internal T1 clock signal and can also respond to in-band or out-of-band loopbackcommands, making it ideal for end-to-end or loopbackBER testing. After the physical layer has been tested, the actual ISDN service can be tested by placing and receiving calls, which verifiesproper switch translations. The HST-3000’spre-programmed tests and customized scriptsensure that all technicians, including novice users, follow the same procedures, eliminating mistakes caused by improper test configurations or incorrect procedures. Acterna’sTechComplete™ software (optional customized), allows the HST-3000 to improve turn-up and maintenance processesby operating with service provider’s dispatch and closeout report systems to offload stored test results for later trend analysis and coaching reports. With these features, the HST-3000 can reduce repeat rates and failures and improve overallprocess efficiency.   HST3000-BDCM-WB2 ADSL/VDSL Bonded and Copper (up to 30 MHz) with Broadcom Chipset Saves money an reduces repeat faults with triple-play services testing capability in one Universal xDSL module that covers ADSL1, ADSL2, ADSL2+, VDSL2, Bonded ADSL, and Bonded VDSL Provides critical ability to verify correct pair-bonding and provisioning Provides investment protection in both CPE and DSLAM equipment, featuring the lates Broadcom chipset and compatible with the widest range of chipset manufacturers (Broadcom, Infineon, Ikanos/Conexant, and Texas Instruments) Reduces troubleshooting time enabling users to segment single line performance issues of a bonded group and segment which pair requires further troubleshooting Provides Hlog, and QLN graphing, which are key for identifying bridged tap, noise, and pair balance problems Service providers face significant challenges when ramping up their networks to provide advanced triple-play services with the same or better quality than cable/ multiple switch operators (MSOs). A key success factor will be to cost-effectively increase bandwidth to subscribers for new IP video services over bonded asymmetric Digital Subscriber Line 2+/very high-speed Digital Subscriber Line 2 (ADSL2+/ VDSL2) while continuing to provide single line ADSL2+ service to subscribers without triple-play services capability. It is tempting to believe that the bonded two pair ADSL2+/VDSL2 connection can be tested similarly to single line ADSL connection, however, testing one pair at a time is insufficient. Internet Protocol television (IPTV) services require pristine xDSL service Layer 1 performance. Factors such as noise, crosstalk, pair imbalance, bridged taps, and other copper plant anomalies can be easily hidden when testing one pair at a time. Dual-pair bonded group testing is critical to ensuring that the service will be delivered to the subscriber with the best possible quality of service (QoS). Designed for the outside plant, the HST-3000 meets those challenges head-on. Featuring the latest Broadcom Corporation chipset, the new service interface module (SIM) tests bonded-pair ADSL2+/VDSL2 by terminating both pairs of a bonded group. The Broadcom SIM also supports legacy ADSL1, ADSL2, ADSL2+, and VDSL2 in the same module, making it easy for technicians to switch between testing bonded and non-bonded services without having to swap modules. Further, the same module features dual tip/ring/ground interfaces for basic and advanced copper testing to further isolate copper pair problems. The new SIM provides additional testing power for field technicians who install and maintain access networks and high-bit-rate triple-play services, including IP Video. The lightweight, rugged, and battery-operated HST-3000 with the Broadcom SIM cost-effectively scales to provide an all-in-one solution for field installation, maintenance, and troubleshooting across a wide range of triple-play service test applications.   Please check our Huge Inventory with savings of up to 80% off of retail on Cat5/5e/6 LAN Cable Certifiers and Fiber Optic OTDR's, Fusion Splicers, CATV Meters, Fiber Optic Kits, Sources, Meters, Tools, Network Analyzers and much more. Here is a Link to our Ebay Test Equipment Store. All of our Test Equipment is backed with a Full Warranty and unbeatable customer support & service. Please don't hesitate to contact us for a Quote on Something you don't see in our inventory, sometimes we have items that may have not been listed or processed yet.   Test Equipment Store Offers a wide range of Refurbished Telecom/ Datacom Tools and Test Measurement Equipment. Which includes Fiber Optic Test and Splicing tools, Fusion Splicers, OTDRs, Copper and Fiber Cable Certifiers, CATV Test Equipment, Cable and Antenna Analyzers, Network Analyzers and much more!   We carry a large inventory of quality refurbished and used test equipment from all the major manufacturers. If you are looking for multiple quantities or if we don't have a listing for a particular item that you are looking for. Please contact us as it may be fresh inventory waiting to be listed or we'll be glad to find it for you at the best price possible and put up an eBay listing for you!   Contact: Test Equipment Store eBay Sales Phone: 1-419-517-6681 Toll Free : 1-800-548-2381     We Ship World Wide!   We will attempt to ship your item(s) within 24 hours after payment has been received. To get a real-time shipping quote to your destination, enter your country and zip / postal code information into the shipping calculator and click "Get Rate". Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We Offer Multiple Quantity Price & Shipping Discounts, Email Us If You Are Interested In Larger Quantities.   UPS Ground   United States   USD 0.00 USPS Express Mail International (EMS)   Worldwide   USD 0.00   We accept credit card payment transactions via the online checkout system! The checkout process is designed so that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through the online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hours (1 Business Day) upon receipt of payment from the winning bidder. (Certain orders may take longer for processing due to comprehensive final service inspections) A Shipment Tracking number(s) will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Tracking number(s) will be provided the same day as order shipment. Thank you ALL MAJOR CREDIT CARDS & PayPal ACCEPTED               Put your auctions on autopilot with Kyozou eBay Auction Management Software
Condition:
Seller refurbished: An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details. ...
Brand JDSU
MPN HST-3000C
Model HST-3000C
