Ion Chamber Tbm Model # Tbm-ic-mark V N/r

US $260

San Bernardino, California, United States
Jan 29th

Open on mobile:
QR code

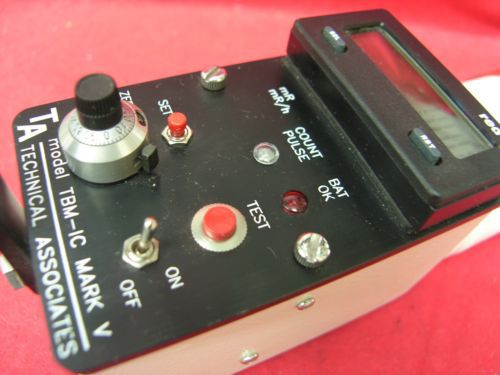

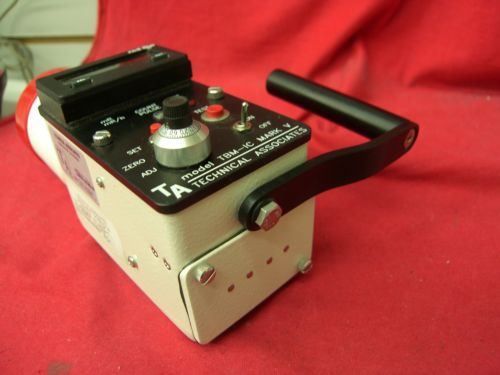

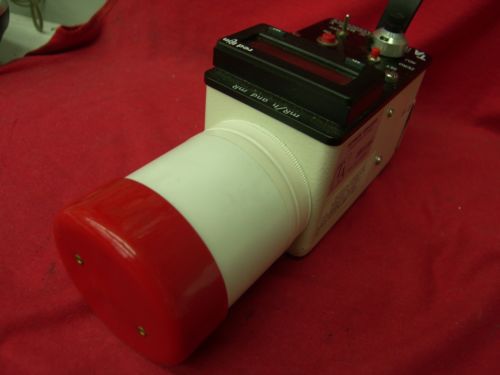

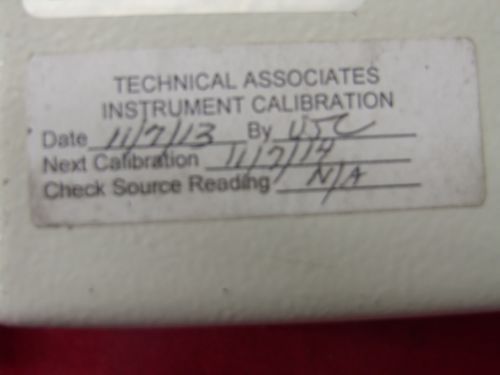

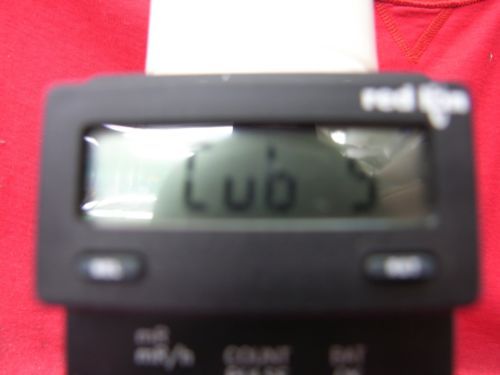

ION CHAMBER TBM Model # TBM-IC-MARK V Up for sale used Ion Chamber TBM By Technical Associates M/N TBM-IC-MARK V with calibration true 11.07. 2014. In good working order. FEATURES: DIGITAL READOUT: 8 digit-rate, 8 digits integrate DOSE RATE & TOTAL DOSE READ OUT SMALL LIGHTWEIGHT 26 oz. TBM PACKAGE FLAT RESPONSE - FREE AIR ION CHAMBER SEES AXIALLY BELOW 5 KEV GAMMA OR X-RAY SEES ALPHA, BETA, GAMMA, X-RAY FAST RESPONSE WIDE RANGE: 0.1 mR/hr to 9.999 R/hr OPTIONAL X-RAY COMPLIANCE SLEEVE APPLICATION: Whenever a fast, sensitive ion chamber instrument is needed, the TBM-IC-MARK V is the latest in a series. The TBM-IC-MARK V ion chambers are now smaller and lighter. Based on newest more stable, essentially drift-free electrometer technology. DESCRIPTION: The TBM-IC-MARK V consists of a 2.5'' dia x 3.5'' long air ion chamber coupled to a stable solid state MOSFET input electrometer with built in A to D converter to read out directly in mR/h or mR. Rate range is 0.1 mR/h to 9.999 R/h in a single range. Dose range is 0.01mR - 99.9R in a single range. 180 mg/cm2 graphite lined methacrylate walls accurate ``air equivalence.'' Thin (0.5 mg/cm2) Mylar window allows high sensitivity readings for alpha and for low energy beta such as C14 in addition to higher energy Betas, Gammas and X-rays. SPECIFICATIONS: Detector: Free Air ion chamber 2.5'' dia x 3.5'' long. Internal volume 260 cc Wall & Cap: Methacrylate, graphite lined 180 mg/cm2 walls and 540 mg/cm2 cap. Optional 1g/cm2 walls. Window: 2.0'' dia. x 0.5 mg/cm2 Mylar. Readout: LCD 8 digits. Indicator Lamp: Green LED 10 pulses/sec per mR/h Red Over-range Indicator Range: Rate 8 digit 0.1 mR/h to 9.999 R/h in a single range. Integrate 8 digits 0.01 mR to 99.9R in a single range. Electrometer: Solid State MOSFET input. Electronics: A-D converter LCD drivers. Batteries: 10 ea. (Button) NEDA CR-1220 - shelf life 7 years. 6 ea. (AA) NEDA 15A - 1000hr. Dimensions: 5-1/2'' x 3-1/2'' x 8'' including handle. Weight: 26 oz. complete with batteries. Options: Readout in Si units: Sv and Sv/h. X-Ray-SLV is optional X-Ray compliance sleeve with 10cm2 aperture. NO RESERVE

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Techical Associates
Country/Region of Manufacture	United States
Model	TBM-IC-MARK V
