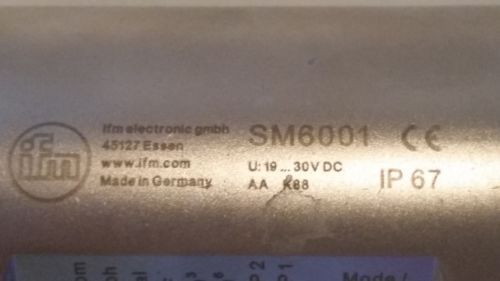

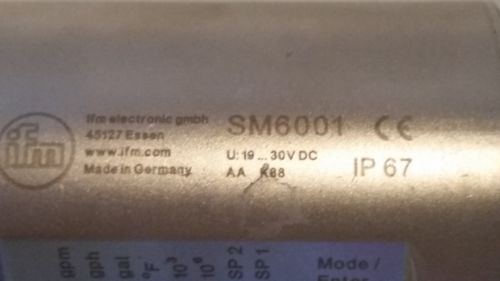

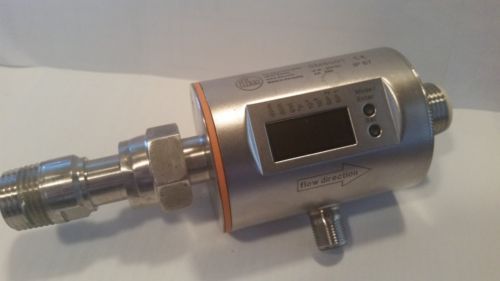

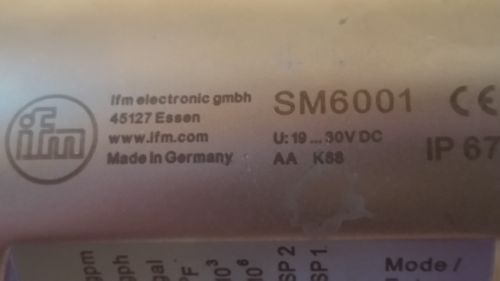

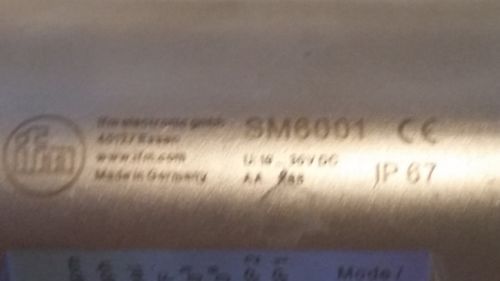

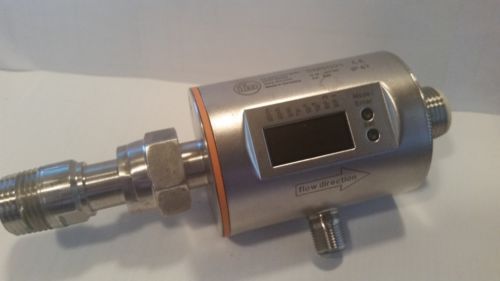

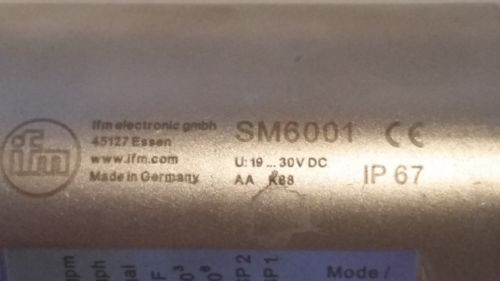

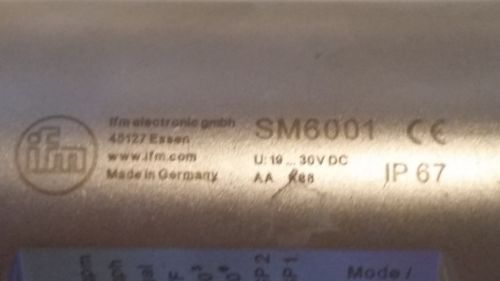

Ifm Sm6001 Magnetic Inductive Flow Meter (smr12ggxfrkg/us-100)

US $182.99

Tucson, Arizona, United States
Jun 9th

Open on mobile:
QR code

Discounts available for purchases of 3 or more. SM6001 |? SMR12GGXFRKG/US-100 Flow sensors Made in Germany DrawingWiring3D PDF RETAIL price $499.00EBAY Price $150.50 Add to cartAdd to favorites Check Availability Enter quantity and click icon for availability date: Top Seller - Typically available from stock Interactive product selection (selector) Product characteristics Magnetic-inductive flow meter Quick disconnect Process connection: G 1/2 flat seal connection to pipe by means of an adapter Function programmable Totalizer function 2 outputs OUT1 = flow monitoring (binary), flow rate meter (pulse), preset meter (binary) OUT2 = flow monitoring or temperature monitoring (analog or binary) Input for counter reset Measuring range 0.03...6.604 gpm Application Application Conductive liquids (conductivity:>= 20 µS/cm / viscosity: < 70 cSt at 104 °F) Pressure rating [psi] 232 Medium temperature [°F] 14...158 Electrical data Electrical design DC PNP/NPN Operating voltage [V] 19...30 DC ?) Current consumption [mA] 120 Insulation resistance [M?] > 100 (500 V DC) Protection class III Reverse polarity protection yes Outputs Output function OUT1: normally open / closed programmable or pulse OUT2: normally open / closed programmable or analog (4...20 mA / 0...10 V, scaleable) Current rating [mA] 2 x 200 Voltage drop [V] < 2 Short-circuit protection Yes (non-latching) Overload protection yes Analog output 4...20 mA; 0...10 V Max. load [?] 500 Min. load [?] 2000 Pulse output flow rate meter Measuring / setting range Flow monitoring Measuring range 0.030...6.604 gpm 1.5...396.3 gph Display range -7.925...7.925 gpm -475.5...475.5 gph Resolution 0.010 gpm 0.5 gph Set point, SP 0.060...6.600 gpm 3.5...396.5 gph Reset point, rP 0.030...6.570 gpm 1.5...394.0 gph Analog start point, ASP 0.000...5.300 gpm 0.0...318.0 gph Analog end point, AEP 1.300...6.600 gpm 78.0...396.0 gph in steps of 0.010 gpm 0.5 gph Volumetric flow quantity monitoring Pulse value 0.01...30 000 000 gal Pulse length [s] 0.01...2 Temperature monitoring Measuring range [°F] -4...176 Resolution [°F] 0.1 Set point, SP [°F] -2.5...176.0 Reset point, rP [°F] -3.5...175.0 Analog start point, ASP [°F] -4.0...140.5 Analog end point, AEP [°F] 31.5...176.0 in steps of [°F] 0.5 Accuracy / deviations Flow monitoring Accuracy ± (2% MW + 0.5% MEW) Repeatability ± 0.2% MEW Pressure loss (dP) / flow rate (Q) Temperature monitoring Accuracy [K] ± 4.5 (Q > 0.26 gpm) Reaction times Power-on delay time [s] 5 Flow monitoring Start-up delay [s] 0...50 Response time [s] < 0.150 (dAP = 0) Damping, dAP [s] 0.0...5.0 Temperature monitoring Response time [s] T09 = 30 (Q > 0.26 gpm) Software / programming Programming options hysteresis / window function; N.O. / N.C; output polarity; current / voltage / pulse output; start-up delay; display can be deactivated; display unit Environment Ambient temperature [°F] 14...140 Storage temperature [°F] -13...176 Protection IP 67 Tests / approvals Pressure equipment directive article 3, section 3 - sound engineering practice EMC EN 61000-4-2 ESD: 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated: 10 V/m EN 61000-4-4 Burst: 2 kV EN 61000-4-5 Surge: 0.5 kV EN 61000-4-6 HF conducted: 10 V Shock resistance DIN IEC 68-2-27: 20 g (11 ms) Vibration resistance DIN IEC 68-2-6: 5 g (10...2000 Hz) MTTF [Years] 156 Mechanical data Process connection G 1/2 flat seal Materials (wetted parts) stainless steel 316L / 1.4404; PEEK (polyether ether ketone); FKM Housing materials stainless steel 316L / 1.4404; PBT-GF 20; PC; EPDM/X Weight [kg] 0.495 Displays / operating elements Display Display unit 6 x LED green (gpm, gph, gal, °F, 10?, 1000 x 10?) Switching status 2 x LED yellow Measured values 4-digit alphanumeric display Programming 4-digit alphanumeric display Electrical connection Connection M12 connector; gold-plated contacts WiringCore colors BK black BN brown BU blue WH white Colours to DIN EN 60947-5-2 ------------------------ OUT1: 3 selection options switching output flow rate monitoring pulse output quantity meter signal output preset counter ------------------------ OUT2: 5 selection options switching output flow rate monitoring switching output temperature monitoring analogue output flow rate analogue output temperature Input for counter reset Remarks Remarks ?) to EN50178, SELV, PELV MW = measured value MEW = final value of the measuring range Pack quantity [piece] 1

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	ifm elector
Country/Region of Manufacture	United States
Model	SM6001
MPN	SMR12GGXFRKG/US-100
