Hp 3325b Synthesizer / Function Generator W/ Hpib | Parts / Repair

US $1400

San Diego, California, United States
Feb 26th

Open on mobile:
QR code

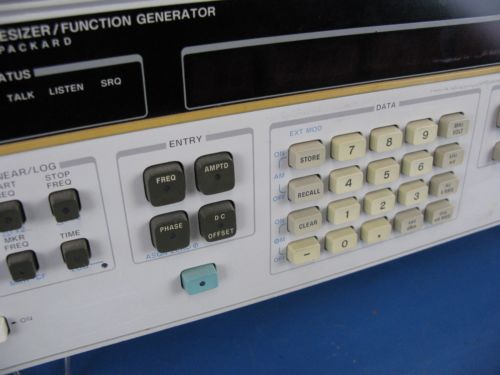

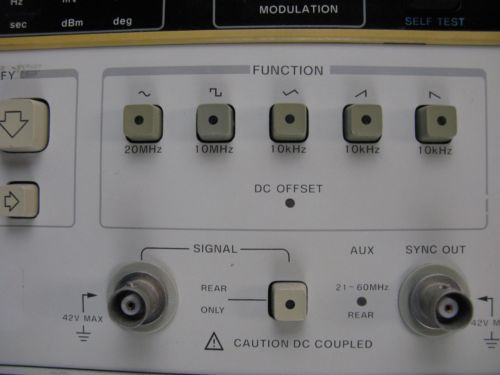

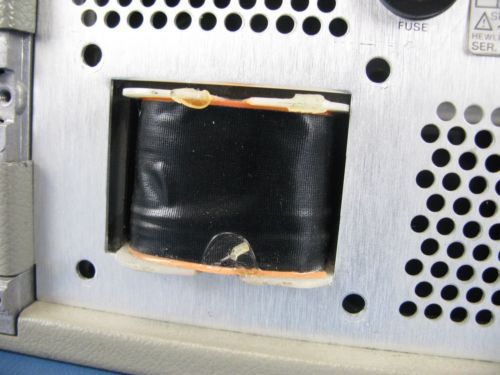

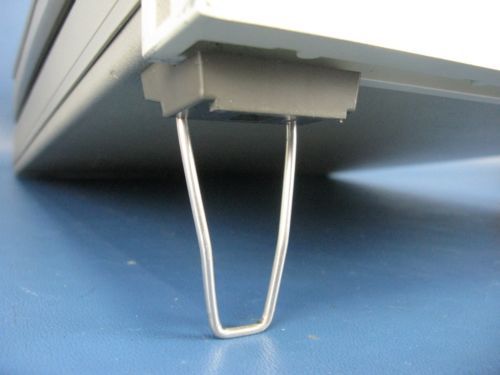

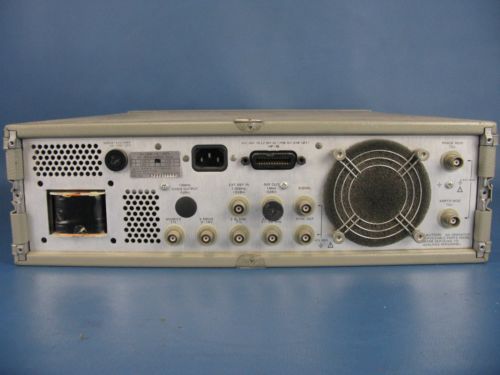

HP 3325B Synthesizer / Function Generator w/ HPIB | Parts / Repair Here is a used Agilent / HP 3325B Synthesizer / Function Generator. This unit is in fair used condition. It is missing the transformer cover from the back. It is also missing its two rear feet. The carrying handle and front feet are still in great shape and function properly. This unit does not power on. It looks like the last owner tried to troubleshoot the unit a little and then gave up after removing the transformer cover. This unit is to be considered for parts / repair purposes only. Agilent 3325B is a generator/waveform synthesizer with frequency accuracy, resolution, and stability that are ideal for applications such as crystal filter test, multiplexed communication system testing, clock/timing simulation and audio frequency system testing. Exceptionally linear triangles and ramp signals are produced with synthesized accuracy and stability for applications such as VCO testing or process control. The dc-to-21 MHz frequency range (sine) makes the 3325B ideal for high-performance video system testing. Pure sine waves or high quality squarewaves can be combined with up to ±5V of DC offset to interface with biased circuits or for stimulus in digital environments. In modulation applications, let the Agilent 3325B provide the carrier for a modulation source, or use the internal modulation source to get modulated signals from the 3325B alone. Synthesizer Precision The HP3325B frequency accuracy is determined by a precision frequency-reference and can be set with a resolution of 1 uHz. It has up to -65dBc harmonic and -70dBc spurious levels for precision measurements. The phase of the output signal can be precisely controlled +-719.9 deg with 0.1 deg resolution, and multiple HP 3325B's can be locked together for multi-phase applications. Function Generator Versatility Precision squarewaves to 10.999,999 MHz have 20 ns rise times with synthesizer accuracy and precision. Triangle and ramp waveshapes are also available with .05% linearity up to 10.999,999 kHz. DC and phase offset can be added to these waveshapes. The modulation source can be used as an arbitrary function generator via HP-IB, providing user-defined waveshapes. These features make the HP 3325B one of the most versatile sources for bench or ATE system applications. Save-recall memory includes 10 non-volatile memory locations, for simple and rapid access to frequently used test setups. Discrete Sweep The enhanced feature set of the HP 3325B includes 100-segment discrete sweep capability which allows arbitrarily defined multi-segment linear or stepped sweeps and tone sequences. This compliments its linear and log, phase continuous sweep capability. Internal Modulation Source A built-in programmable modulation source provides sine, square and arbitrary waveshapes for internal amplitude or phase modulation, or for use as a second source. In addition, a rear panel sync output provides a TTL compatible dc to 50MHz signal with 1uHz resolution for use as a precision, high resolution clock signal, and extended frequency coverage. ATE systems Compatibility All functions, including frequency, amplitude, phase, modulation, sweep and waveshapes are programmable via HP-IB or RS232 interface. The HP 3325B is fully compatible in form, fit and function, with the HP 3325A. All HP-IB programs written for the HP3325A are fully compatible with the HP3325B. An isolated interface, combined with floating outputs and inputs assures trouble free operation in a systems environment. The main output can be switched to the rear panel by a simple front panel keystroke, or under program control for optimum systems configuration. Please see photos for more details Power cords and other accessories are NOT included unless otherwise stated. Sold As-Is PAYMENT Payment is due within 7 days of purchase. AVR-Sales accepts payment by PayPal or Credit Card over the phone. Sales tax of 8.00% will be applied to all sales within California, unless a valid tax exempt certificate is presented. Our eBay system is automated to open an unpaid item case after 2 days of an unreceived payment. Please contact us if you feel you have received this notice in error or need to make other payment arrangements. SHIPPING Shipping stated is for continental 48 United States only. Please inquire for shipping charges for all other locations and/or combined shipping. Shipping to Alaska, Hawaii, APO/FPO, Puerto Rico, and other locations may be higher. We ship USPS Priority Mail for international shipments. We cannot guarantee we will be able to ship to your specific country. For larger items please provide a physical address. PO Boxes may be charged an additional shipping fee. TERMS OF SALE 30 day warranty does not apply if shipped outside of the U.S. If a buyer with a shipping address outside of the continental US makes a purchase without first requesting a shipping quote, AVR Sales reserves the right to cancel the transaction. Items returned for any reason other than misrepresentation will be subject to a 20% restocking fee. Items specifically stated as sold "AS IS" are not covered under our warranty. If an accessory is not pictured or mentioned, it is not included! AVR-Sales makes no guarantee to the life of batteries unless specifically stated otherwise. AVR-Sales documents all serial numbers for items listed & sold. ABOUT US AVR-Sales 650 Gateway Center Way, Suite I San Diego, CA 92102 858-715-0950 CONTACT US You may contact AVR-Sales through the eBay message system . Your email will be answered promptly Monday through Friday during normal business hours. Emails received on weekends and holidays will be answered the following business day. DISCLAIMER: Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by purchasing this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. DISCLAIMER for Healthcare, Lab, and Life Sciences Equipment: "The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item." grh Powered by SixBit's eCommerce Solution

“Used but not abused!”

Brand	Agilent / HP
Country/Region of Manufacture	United States
Model	3325A
Manufacturer	HP
MPN	3325A
