Hipotronics-hubbell Hd103-auto A-1 Ac/dc Hipot Dielectric Insulation Tester 3kv

US $3,967.25

Phoenix, Arizona, United States
Jan 29th

Open on mobile:
QR code

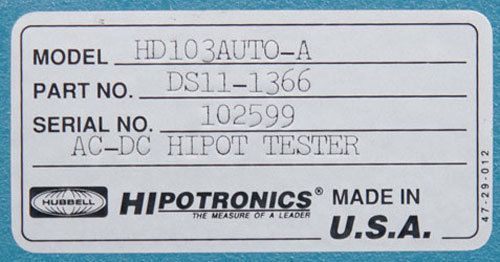

Hipotronics-Hubbell HD103-Auto A-1 AC/DC Hipot Dielectric Insulation Tester 3kV Comes with a manual and what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from Hipotronics and may vary slightly due to upgrades, options, or revisions this unit may or may not have. This unit ships guaranteed to work for 30-days, parts and labor, excluding freight. This unit will ship with test leads even though the picture does not show them. We may not have an exact manual for this unit. The AUTO unit is no longer made and I am not sure what the specification differences are, however the output is the same. The Unit's Serial Number Tag Reads: Model Number: HD103AUTO A Serial Number: 102599 Part Number: DS11-1366 Date Code: 8442 Link to the Datasheet: Hipotronics HD100 Series Hipot Tester Datasheet Benefits: Two Tests in One Unit - Eliminates the need for purchasing separate AC and DC Hipot. Meets Industry Specifications - Tests to most UL, CSA, VDE, IEC, MIL, BSI, BABT and other industry standards for Dielectric Withstand Testing. NIST Traceability - All meters are traceable to the National Institute of Standards and Technology (we do not do calibration so you may need to get the unit calibrated) Rack Mountable - Easy installation into a 19" rack. Applications: The most common applications are for testing of: High Voltage Tubes Capacitors Transformers Wires and Cables Coils and Chokes Motors and Generators Connectors Medical Devices Appliances Switches and Relays Description: The 100 Series AC/DC Hipots are accurate, durable instruments designed to perform hipot tests on all types of electrical products, systems, and components. They are designed to perform AC dielectric tests and DC dielectric tests. Key Safety Features: Recessed, Twist Lock High Voltage Reentrant Connection - Minimizes user accessibility to high voltage. Also prevents the output lead from being accidentally removed from the high voltage outlet. Interlock Provision - Allows easy installation of any type of safety switch into the interlock circuit. Breaking this circuit will prohibit the generation of high voltage. Over Current Protection - Protects the user and the test object from excess current levels by shutting down the high voltage instantly. The overload sensitivity is continuously adjustable to allow testing of various test loads. Audible/Visual Alarms - The audible and visual indications provide a clear indication of an overload situation or a go/no-go failure. Zero Start Interlock - Ensures that the voltage control adjustment is turned to zero volts when the high voltage transformer is energized. This feature ensures that the high voltage is not applied instantly to the object under test, which is potentially harmful in certain applications. Gravity Operated Solenoid - Discharges the object under test when a failure occurs in the object under test or when power is turned off. Output Connected to Voltmeter - Ensures accurate voltage measurement regardless of output loading. Specifications: Input Voltage: 120 V, 60 Hz Output Voltage: AC: 0 - 2.5 kV AC DC: 0 - 3.0 kV DC DC Output Voltage: Negative output, positive ground Metering: 4.5" analog meters, ±2% full scale accuracy Voltmeter: 0-0.6/1.2/3.0 kV Current Meter: 0-50/500/5000 µA DC and 0-5 mA AC Dimensions: 21" W x 19.625" D x 20" H Weight: 46 lbs. (21 kg) - this is for the standard unit. For More Pictures Please Click the Following: Picture 2 - Back View Picture 3 - Side View Picture 4 - Current Meter Picture 5 - High Voltage Output Connections Picture 6 - Serial Number Tag For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $100.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination. If you have any questions please call Michael at 1-866-MHZ-ELEC (1-866-649-3532) Toll Free. Also, please click here to view or other auctions! 11/27/13 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition	Manufacturer refurbished : An item that has been professionally restored to working order by a manufacturer or manufacturer-approved vendor. This means the product has been inspected, cleaned, and repaired to meet manufacturer specifications and is in excellent condition. This item may or may not be in the original packaging. See the seller’s listing for full details.
Seller Notes	“This unit ships guaranteed to work for 30-days, parts and labor, excluding freight. This unit will ship with test leads even though the picture does not show them. We may not have an exact manual for this unit. The AUTO unit is no longer made and I am not sure what the specification differences are, however the output is the same.”
