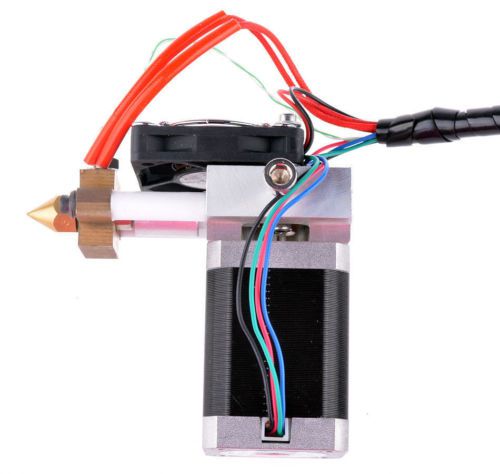

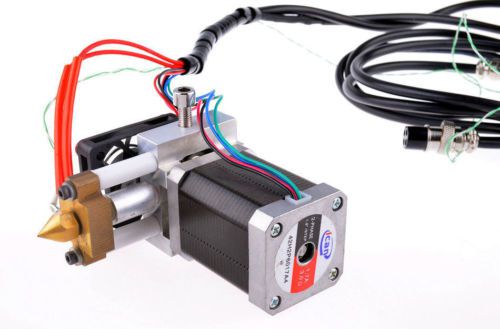

High Torque 3d Printer Extruder Print Head Abs (no Backlash) 1.7a + 0.3mm Nozzle

US $75.05

default, default, Hong Kong
Jan 30th

Open on mobile:
QR code

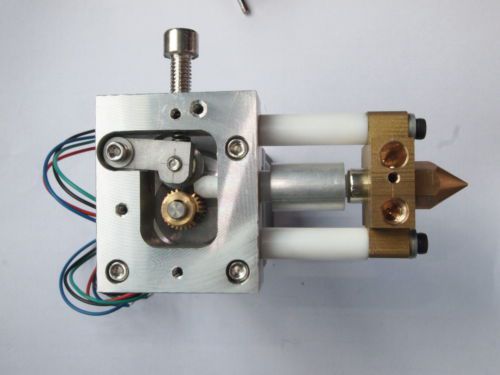

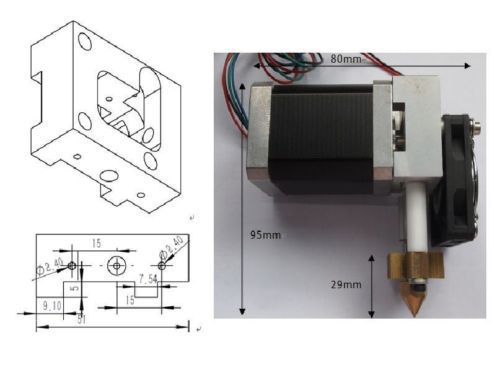

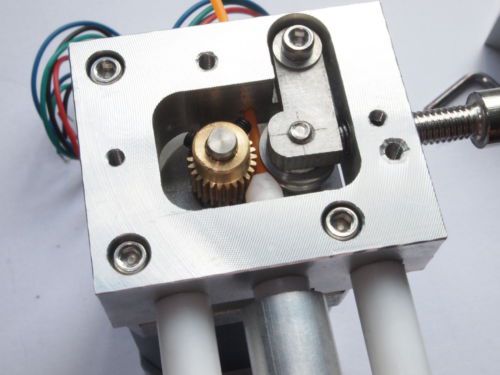

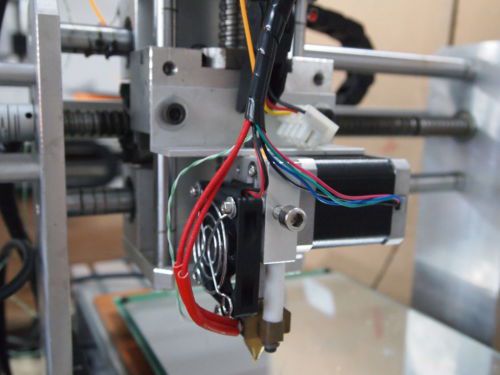

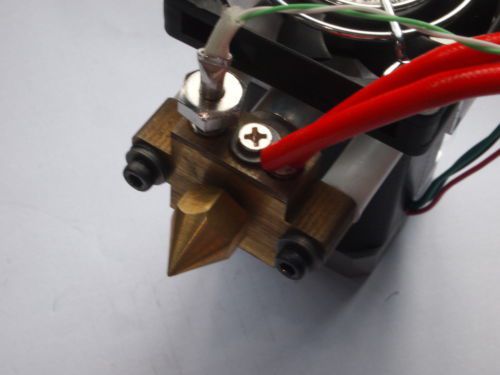

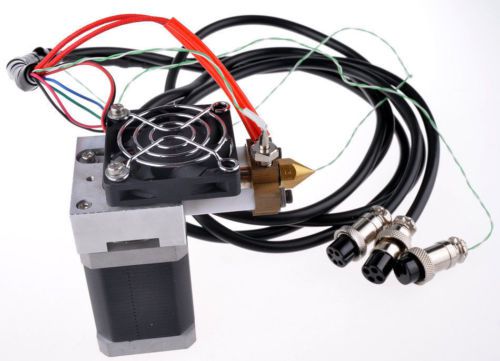

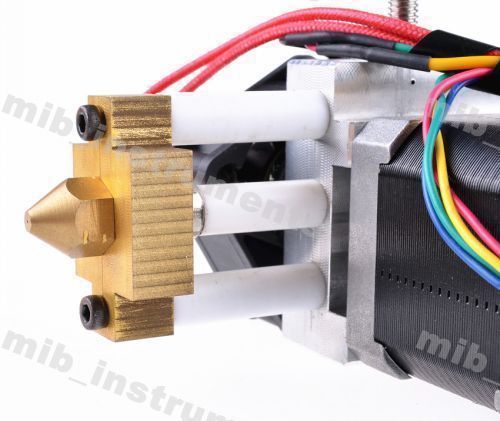

???? 2 0.3mm Nozzle 3D Printer Extruder MC3D High Torque Print Head NEW Release Printer Head. Support CNC To 3D printer. You can also purchase our 3D printer's temperature controller set M3D-H2: http://www.ebay.com/itm/3D-Printer-Heatbed-Hot-End-heater-with-thermocouple-sensor-200W-controller-/321111260236?pt=LH_DefaultDomain_0&hash=item4ac3b8fc4c Use with our CNC, easy to change your CNC to a 3D printer! Extruder Manual Controller Manual CNC To 3D guideline Heatbed Manual Features: 1) High torque 1.7A 2NM stepper motor directly drive the filament, no backlash existing 2) Use Teflon insulator at between the nozzle and heater’s screw, prevent the jamming and leakage 3) Have a trimmer to tune the pressure force to filament. 4) Electric fan to divide the heating and cooling part, prevent jamming. 5) Well-built and support our temperature controller and headbed M3D-H2 Specification: Parameter Remark Stepper Motor Voltage DC24V Stepper Motor Current 1.7A 1.8degree Support filament size 1.75mm diameter Maximum pulling force to pull filament 2.5KG *tested by ABS 1.75mm 0.3mm nozzle Maximum extruder nozzle output speed 64mm/s or 2.51 inch/s *tested by ABS 1.75mm, 0.3mm nozzle Heater power 40W Heater voltage 24V Heater current 2A Heater Size 6mm x 20mm Driving gear outer diameter 11mm Driving gear number of teeth 26 Thermo Couple sensor K type Up to 600 degree Celsius *Twisted pair Thermo Couple size M6 screw type Cooling Fan 12V Mounting hole M6 Hex Screw Thermo Couple length 1m *longer will affected by noise Stepper cable 1.5m Maximum working temperature 255 degree Celsius Maximum instant temperature 270 degree Celsius <10 s Size 95x50x95mm Total weight 830g *include cable Structure Material Aluminum 6061 Gear Material Brass Heater Block Material Brass Insulation Material Teflon Include: 1) 1 Set 3d printer head (full set as photo, include stepper motor, fan, heater, thermocouple) 1) 1 pcs 0.3mm nozzle On Aug-12-14 at 02:28:44 PDT, seller added the following information: Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	MIB
Extrusion nozzle	0.3mm
Country of Manufacture	China
