Hamlet Lcd Scope Sd-sdi Vectorscope Waveform Monitor 400wva Ntsc/pal 400 Rack-m

US $1,495.00

San Diego, California, United States
Jun 9th

Open on mobile:
QR code

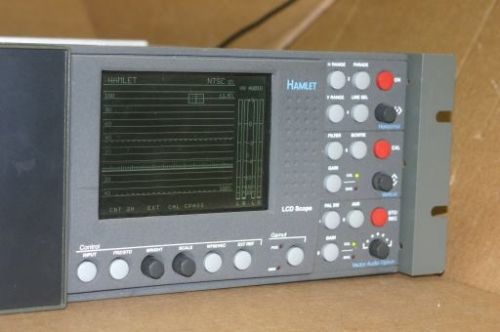

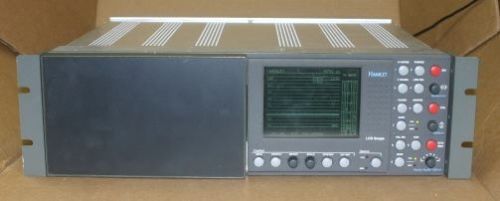

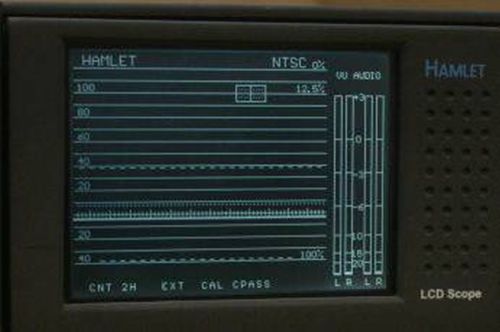

Hamlet LCD Scope SD-SDI Vectorscope Waveform Monitor 400WVA NTSC/PAL 400 Rack-m We gladly ship to most countries Scroll down for more Photos and details Hamlet LCD Scope Component SDI Vectorscope Waveform Monitor 400WVA NTSC/PAL 400 Rack-mounted 400WVA LCD SCOPE In-Built LCD display. Provides analog composite, component and audio monitoring capability. The LCD Scope 400WVA has been designed to satisfy specific requirements requested by cost conscious users who need high quality, accuracy combined with familiar and intuitive operation. The LCD Scope series has no cathode ray tube, using instead a liquid crystal display. It therefore has none of the problems associated with CRTs such as focus, stigmatism, parallax, EHT failure or high maintenance costs. The LCD Scope contains the latest proprietary, digital designs from Hamlet, producing a range of unique PAL and NTSC devices, which may be used in a variety of environments. The LCD Scope makes an ideal replacement for existing or failing CRT units but is itself only 160mm deep. Like other innovative and award winning Hamlet products, the LCD Scope establishes a new method of measurement and monitoring utilising a base unit with only one option which may be retro fitted. As with all Hamlet products the LCD Scope includes a host of features and functions normally only associated with much more expensive devices. Features and Functions Composite, component, - plus 4 audio bar graphs and phase display. SD SDI option available. Multi-standard NTSC & PAL (PAL-M). Built-in low maintenance LCD. Full measurement functionality including, full field line select, bow tie and 3 filter, YUV and RGB parade displays. Gamut violation display and alarm. External ref. HFT hands free timing. On screen mode displays. Audio Stereo Prof jack socket. RS232 remote control. Powered via 12Vdc mains adapter. Only 160mm deep, rack mount, stand alone or portable operation. Weighs only 2.5Kg. TECHNICAL SPECIFICATION INPUTS Composite input. BNC connector with loop through output. Return loss better than 40dB. Zin of 22k. Max dc +/- 3 volts. YC input. 4 pin mini din socket with loop through output. Return loss better than 40dB. Zin of 22k. Max dc +/- 3 volts. Component input. 3 x BNC connectors with switchable terms. Return loss better than 40dB. Zin of 75R or 22k. Max dc +/- 3 volts. YCrCb or RGB. SD Serial digital input*. BNC connector. Input impedance 75 ohms. Max d.c. +/- 10V. SMPTE 259M, ITU-R BT.601/656 serial component. 800mV pp +/- 10% auto equalised up to 300 metres of cable. HD Serial digital input*. BNC connector. Input impedance 75 ohms. Max d.c. +/- 10V. SMPTE 292 serial component. 800mV pp +/-10% auto equalised up to 300 metres of cable. Serial digital output*. BNC connector. Output impedance 75 ohms. Equalised version of the serial digital input. External ref input. BNC connector with loop through output. Return loss better than 40dB. Zin of 22k. Max dc +/- 3 volts. AUDIO 4 x Analog balanced inputs. Zin 22K. AUDIO MONITORING OUTPUT Quarter inch professional stereo jack. REMOTE CONTROL 9 pin D socket for GPI, data up/down load and remote control. POWER 10 to 13V d.c. to 2.1mm jack. 1A max. ENVIRONMENT Indoor use, 5 to 45 deg.C. ambient to 2,000m. Max humidity 80% to 31 deg.C decreasing to 50% at 40 deg.C. Overvoltage category 2. Pollution degree 1. DISPLAY AREAS Display 100mm x 75.5mm viewing area. Waveform 256 pixels wide x 240 pixels high. Audio/Gamut area 64 pixels wide x 240 pixels high. WAVEFORM MONITOR Response Flat is +/- 0.5% 50Hz to 5.5MHz. Low Pass is -3db @ 1.5MHz, -60db @ 6.75MHz. Timebase H, 2H and Hmag (x5). V, 2V and Vmag. Line select is any line from the frame. Parade is a 3H display of input or filter parade. VECTOR MONITOR Video Traditional component or composite display. Component accuracy 0.2%. Bandwidth 3.375MHz. Composite accuracy 1%. Bandwidth 1.3MHz. Audio Stereo phase display of left or right audio pair. Phase accuracy 2 deg. Gamut Poly display of RGB signal shows up illegal colours. AUDIO MONITOR Accuracy Better than 0.1db over full scale range. Characteristics BBC, EBU, Nordic and VU. PHYSICAL DIMENSIONS: - 214mm x 131mm x 185mm. WEIGHT: - 2.5Kg. Don't forget to place your bid. More photos down below By bidding on this auction you agree to the following terms: Shipping Terms: Buyer pays all shipping costs. Let us know if there is an issue with the shipping costs, as they are automatically calculated by ebay. Shipments made to California must include 8.00% sales tax unless we are provided with a valid resale certificate. We reserve the right to ship with Fedex , USPS, UPS and any other carrier in the best interests of both the buyer and seller. If the shipping cost quoted is over $150, that means it will be shipped freight, and the price quoted is for pickup at a freight terminal nearby your location (usually within 25 mi if you are in a major metro US city). if you need residential delivery, or if you don't have a forklift/loading dock the price will be higher in some cases. Payment Terms: Payment is to be made by PayPal Please contact us if you have any payment questions. Payment is to be received within ten days of close of auction. Should payment not be received within ten days the item will be re-listed and high bidder will forfeit. International Terms: (These terms only apply to international shipments.) Buyer is responsible for all brokerage, customs, and or duty charges. Not all items are available for international shipment due to import/export regulations. In the event that we are unable to ship to buyers country, buyer will receive a full refund. Payment must be made in US Dollars. Warranty Terms: Returns are available up to 14-days from receipt. What you see in the picture(s) is what you get nothing more nothing less. Test results of item(s) in auction are described to the best of our ability in the ad. The results of all tests that are performed are disclosed in the ad. Items sold as "Untested" are simply that we have been unable to fully test the item(s) due to missing cables/adapters/toner cartridge/ksu/etc, lack of time, or other restrictions. We guarantee that you will receive the make and model listed in the ad. The maximum liability of Best Stuff To You is the high bid +shipping cost of the auction listing. Return Terms: Returns are allowed and must be filed within 14 days of receipt of shipment. Item should be returned in the original box and packaging . Bidder must request a RMA number and return address before returning item(s). All new/sealed toner cartridges are sold as-is with No returns unless returned unopened. send a message if you have any questions. We wont leave you stuck without a solution Medical Device Terms: The following terms apply to any and all medical items or any item offered for sale in any medical category or any item that eBay deems these terms are applicable to: The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, you should not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item. The buyer will not hold the seller, eBay or the item's manufacturer responsible for the appropriate or inappropriate use of this device either by the user or a third party. Once purchased, it is the sole responsibility of the purchaser to assume any and all liability from the use of this device. Please note before bidding that any medical equipment purchased should be completely tested by a qualified biomedical technician prior to being put into service Contact Information Dan Rydell in San Diego, CA, USA Phone: 619-519-0869 ebay name: untested_condition Item Condition Terms: On these listings, our company's condition "used" does NOT necessarily mean "fully operational and functions as intended". If fact it may have unknown flaws and deficiencies. the item has only been tested to the extent described in the testing notes. Additional testing may be performed upon request of the buyer before shipment to ensure a satisfactory transaction for both parties. If any provision of this Auction Contract is held unenforceable, All remaining provisions of this Contract shall remain in full force and effect. Copyright 2014 untested_condition- All Rights Reserved. Auction Wizard 2000 - The Complete Auction Management Software Solution

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Hamlet
Model	400WVA
